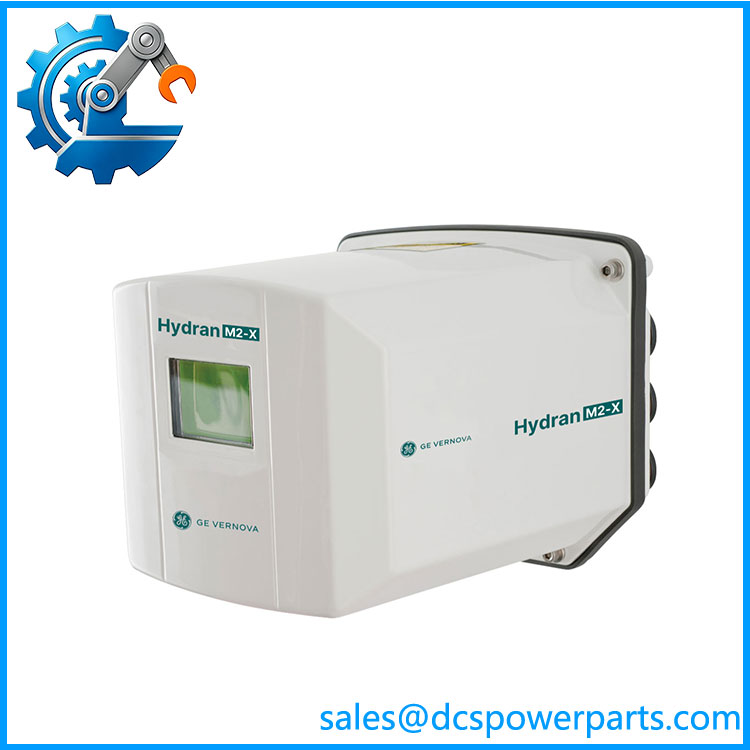

HYDRAN M2-X Online Transformer Monitoring System

1. Product Features

  1. Continuous online monitoring of dissolved gas and moisture inside oil-filled transformers, reactors and tap changers.
  2. Detects key fault gases (H₂, CO, C₂H₂, etc.) and moisture simultaneously to identify early thermal and electrical faults.
  3. Advanced sensor technology with long service life, no frequent consumable replacement.
  4. Supports multiple communication protocols for seamless integration with SCADA and asset management systems.
  5. Built-in local display, alarm relays and event logging function for on-site status monitoring.
  6. Compact and robust design, suitable for harsh outdoor substation environments.
  7. Provides trend analysis data to support predictive maintenance and extend transformer service life.
  8. Easy installation on transformer valve without large oil draining operation.

The Hydran M2-X is the next generation of the field-proven family of Hydran DGA monitoring solutions, providing continuous monitoring of gas and moisture levels to alert users of developing faults and minimize the risk of unplanned outages. The M2-X builds on GE Vernova’s strong domain expertise to deliver an optimized, low maintenance monitoring device with extended sensor life.

The Hydran sensors are available as a traditional Hydran composite gas (H2, CO, C2H2, C2H4) sensor or a discrete Hydrogen only (H2) sensor. In addition, it tracks moisture in oil (reading in %RH and ppm) and is compatible with various transformer oil types (standard mineral insulating oils and newer natural and synthetic ester based fluids).

HYDRAN M2-X

Key Benefits
  • Small form factor, no moving parts, and low maintenance
  • Support for Asset Performance Management (APM) software analytics, enabling fleet level deployments
  • Condition monitoring for transformers with mineral insulating oils or ester based fluids (natural and synthetic)
  • Extending beyond DGA monitoring, through the connection of sensors, the Hydran M2-X can monitor other parameters such as top oil temperature, load current and through the use of IEEE based mathematical models, can provide further insight on changing transformer conditions
  • Provides critical data for APM strategies, facilitating planning of site intervention and maintenance activities
Features
  • Easily upgradable in the field to accept analog signals and monitor other key transformer parameters
  • Computation of winding hot spot and other IEEE transformer models for enhanced diagnostics of the transformer’s condition (depending on sensors installed)
  • Easy to install on a single existing transformer valve, often without an outage required
  • Integrated display and keypad for simplified local user interaction and data visualization
  • Built-in moisture sensor provides water in oil measurement, critical to identify paper degradation and leaking gaskets
  • Compatible with GE Vernova’s acclaimed Perception™ software to download, trend and analyse transformer health data

2. Product Parameters

Item Specification
Brand HYDRAN (GE / Qualitrol)
Model HYDRAN M2-X
Product Type Online Dissolved Gas & Moisture Monitor for Transformers
Measured Parameters Hydrogen (H₂), Carbon Monoxide (CO), Acetylene (C₂H₂), Moisture in Oil
Working Principle Gas permeable membrane + electrochemical sensor
Operating Ambient Temperature -40°C ~ +65°C
Transformer Oil Temperature Range 0°C ~ +110°C
Communication Modbus RTU, Modbus TCP, IEC 61850 (optional)
Power Supply 24 VDC / 110–240 VAC
Protection Class IP65
Mounting Direct installation on transformer oil drain valve
Country of Origin Canada
Warranty 12 months

3. Product Operation Instructions

  1. Preparation: Confirm the transformer is in safe operating status. Prepare installation accessories, sealing fittings and tool set.
  2. Mechanical Installation: Mount HYDRAN M2-X on the transformer oil sampling valve following official installation manual, ensure no oil leakage.
  3. Electrical Wiring: Connect power supply and communication cables; use shielded cables and proper grounding.
  4. Power On & Commissioning: Energize the unit, set alarm thresholds, unit address and communication parameters according to site requirements.
  5. Calibration: Complete initial parameter verification; perform regular calibration cycle as recommended by manufacturer.
  6. Daily Operation: Monitor gas concentration and moisture data via local display or remote SCADA system. Check for abnormal alarms.
  7. Routine Maintenance: Inspect sealing condition and sensor status periodically; follow manual to execute sensor maintenance.
  8. Troubleshooting: Check wiring, oil circuit blockage or sensor status when communication failure or abnormal readings occur.

4. Application Fields

  • Medium to large sized transformers
  • Utility and industrial transformers
  • Transmission transformers
