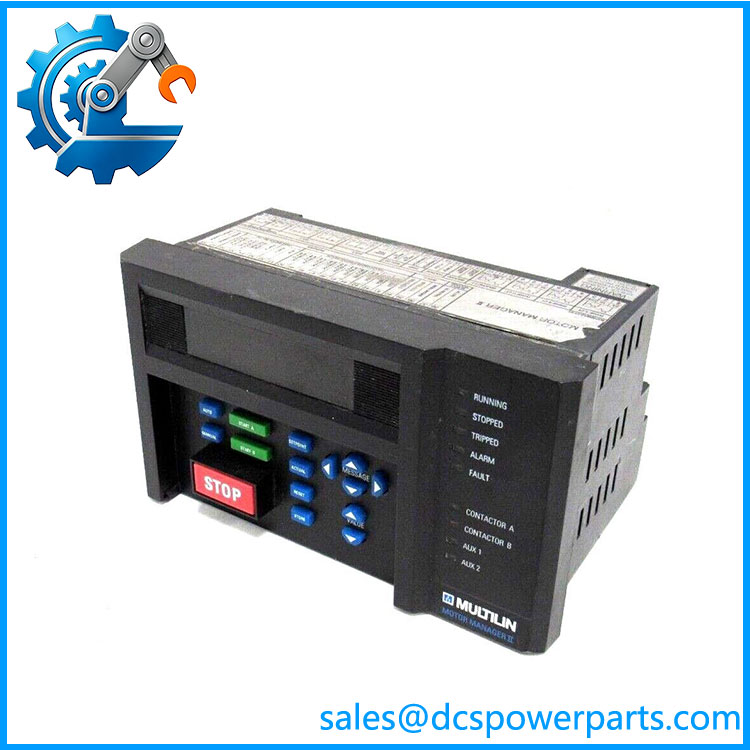

The MMII-PD-1-2-120 is a high-performance intelligent motor management and protection controller developed by GE Multilin, belonging to the Motor Manager II (MMII) series. Designed for industrial low-voltage motor equipment, it integrates precise motor operation monitoring, comprehensive safety protection, flexible logic control and intelligent data recording functions. As a core control unit for industrial motor safety management, it can effectively prevent motor damage caused by abnormal operating conditions, reduce equipment failure rates, and ensure safe, stable and efficient operation of industrial motor systems. With compact structure, powerful functions and excellent environmental adaptability, it is widely applicable to various industrial motor control and protection scenarios.
1. Comprehensive Multi-dimensional Motor Protection: Integrates complete protection functions including overload protection, locked rotor protection, phase unbalance protection, phase loss protection, overvoltage and undervoltage protection, and ground fault protection. It supports multiple protection curve modes such as standard, intermediate and custom inverse time curves to meet the protection requirements of different types of motors.
2. High-precision Real-time Monitoring Capability: Adopts high-accuracy RMS sampling technology, supporting real-time monitoring of phase current, ground fault current, thermal capacity, voltage and other core motor operating parameters. It can accurately capture tiny abnormal changes in motor operation and provide reliable data support for equipment status judgment.
3. Intelligent Thermal Modeling Protection: Built-in professional thermal bucket simulation algorithm, which can dynamically calculate the motor heat accumulation state according to operating load and running time. It effectively avoids motor burnout caused by long-term overload operation and realizes scientific thermal protection of motors.
4. Humanized Local Operation Interface: Equipped with high-resolution LCD display and physical keypad, supporting on-site real-time viewing of motor operating data, fault information and parameter status. It allows local parameter configuration, function debugging and fault query, with simple and intuitive operation.
5. Powerful Communication & Networking Capability: Supports RS485 Modbus RTU and Profibus-DP communication protocols, with a configurable baud rate range of 1200bps to 19200bps. It realizes seamless data interaction with upper SCADA and DCS systems, supporting remote parameter configuration, real-time data upload and remote equipment monitoring.
6. Rich Programmable I/O Resources: Equipped with 6 independent programmable digital inputs and 4 relay output terminals, supporting flexible configuration of trip output, alarm output and auxiliary control signals. It can adapt to diversified on-site motor control logic and interlock protection requirements.
7. Complete Fault Recording & Traceability: Supports trip event recording and pre-trip data storage, which can record fault types, fault time and operating parameters before and after faults. It provides complete data traceability for post-fault analysis, equipment maintenance and operation optimization.
8. Industrial-grade High Stability & Adaptability: Adopts compact industrial panel-mounted structure and EMC electromagnetic shielding design, with strong anti-electromagnetic interference ability. It supports 24/7 long-term continuous operation, adapting to harsh industrial environments such as high temperature, dust and electromagnetic fluctuation.
MMII-PD-1-2-120
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
MMII-PD-1-2-120
|
|
Brand
|
GE Multilin (General Electric)
|
|
Product Series
|
Motor Manager II (MMII)
|
|
Product Type
|
Intelligent Motor Management & Protection Controller
|
|
Core Functions
|
Motor operation monitoring, multi-type safety protection, logic control, fault event recording, remote communication transmission
|
|
Protection Modes
|
Overload, locked rotor, phase unbalance, phase loss, over/under voltage, ground fault protection
|
|
Protection Curve
|
Standard, Intermediate, Custom Inverse Time Curve
|
|
Sampling Mode
|
High-precision RMS Real-time Sampling
|
|
Local Interface
|
LCD Display + Physical Keypad
|
|
Communication Protocol
|
RS485 Modbus RTU, Profibus-DP
|
|
Baud Rate Range
|
1200bps ~ 19200bps (Adjustable)
|
|
I/O Configuration
|
6 Programmable Digital Inputs, 4 Relay Outputs
|
|
Thermal Protection
|
Built-in Thermal Bucket Dynamic Simulation Algorithm
|
|
Event Recording
|
Trip fault recording, pre-trip operating data storage
|
|
Rated Working Voltage
|
120V AC Industrial Standard
|
|
Contact Rating
|
10A 250VAC Relay Output
|
|
Operating Temperature Range
|
0℃ ~ +60℃
|
|
Storage Temperature Range
|
-25℃ ~ +70℃
|
|
Working Humidity
|
10%~95% Non-condensing
|
|
Installation Method
|
Industrial Panel Mounting
|
|
Product Dimension
|
191mm × 114mm × 127mm
|
|
Weight
|
1.4kg
|
|
Anti-interference Level
|
Industrial EMC Electromagnetic Shielding Design
|
Product Usage Method
1. Pre-installation Inspection: Inspect the MMII-PD-1-2-120 controller appearance, display screen, keys, terminal ports and shell structure to confirm no damage, aging or functional failure. Verify that the product parameters match the on-site motor voltage level, power parameters and control system requirements to ensure installation compatibility.
2. On-site Environment Preparation: Select a dry, dust-free, well-ventilated installation position inside the industrial control cabinet, avoiding strong electromagnetic equipment and high-temperature heat sources. Ensure the installation space is reserved for heat dissipation and later maintenance to prevent equipment overheating and signal interference.
3. Equipment Installation & Fixation: Fix the controller stably on the cabinet panel according to the standard panel installation specifications. Adjust the installation level and tighten the fixing parts to avoid equipment displacement and loose wiring caused by on-site vibration, ensuring long-term stable installation.
4. Standard Wiring Connection: Complete power supply wiring, motor signal sampling wiring, digital input and relay output wiring in strict accordance with the official wiring diagram. Distinguish voltage, current, signal and power terminals to prevent wrong wiring, short circuit and signal crosstalk, and fix the wiring neatly.
5. Parameter Configuration & Debugging: Power on the equipment, perform local parameter configuration through the LCD display and keypad, including motor rated parameters, protection threshold values, protection curve modes and communication parameters. Connect the upper computer to complete remote parameter calibration and function debugging, ensuring all protection and monitoring functions are normally enabled.
6. Function Simulation & Verification: Simulate motor overload, phase loss and other abnormal operating conditions to test the controller’s protection action, alarm output and fault recording functions. Verify the accuracy of monitoring data and the reliability of protection logic to ensure compliance with on-site safety control standards.
7. Daily Operation & Maintenance: During long-term operation, regularly check the controller display status, data accuracy and wiring tightness. Clean the equipment surface and internal dust periodically, back up fault records and parameter data, and calibrate monitoring precision regularly to ensure stable and reliable motor protection and monitoring performance.
Product Application Fields
1. Petroleum & Chemical Industry: Widely used for safety monitoring and protection of various low-voltage driving motors in chemical production devices, oil and gas field equipment and refining units. It protects process pumps, fans and compressor motors from abnormal damage, ensuring continuous and safe operation of chemical production processes.
2. Power Industry: Applied in auxiliary motor control and protection systems of thermal power, gas power and hydropower plants, including fan motors, water pump motors and transmission motors. It realizes full-state monitoring and fault protection of power plant auxiliary equipment, improving the safety and stability of power generation systems.
3. Metallurgy & Building Materials Industry: Suitable for motor management and protection of steel smelting equipment, cement production lines and building material processing equipment. It adapts to high-load, dusty and strong electromagnetic interference industrial environments, providing reliable safety guarantee for high-power operating motors.
4. Water Treatment & Environmental Protection Industry: Deployed in urban water supply and drainage, sewage treatment and environmental protection equipment systems, used for protection and monitoring of water pump motors and fan motors. It ensures stable operation of water treatment equipment and reduces equipment failure downtime.
5. General Industrial Automation: Applicable to motor safety management of factory production lines, logistics transmission equipment and mechanical processing equipment. It realizes intelligent monitoring, automatic protection and remote management of industrial motors, helping enterprises improve automation level and equipment operation safety.
