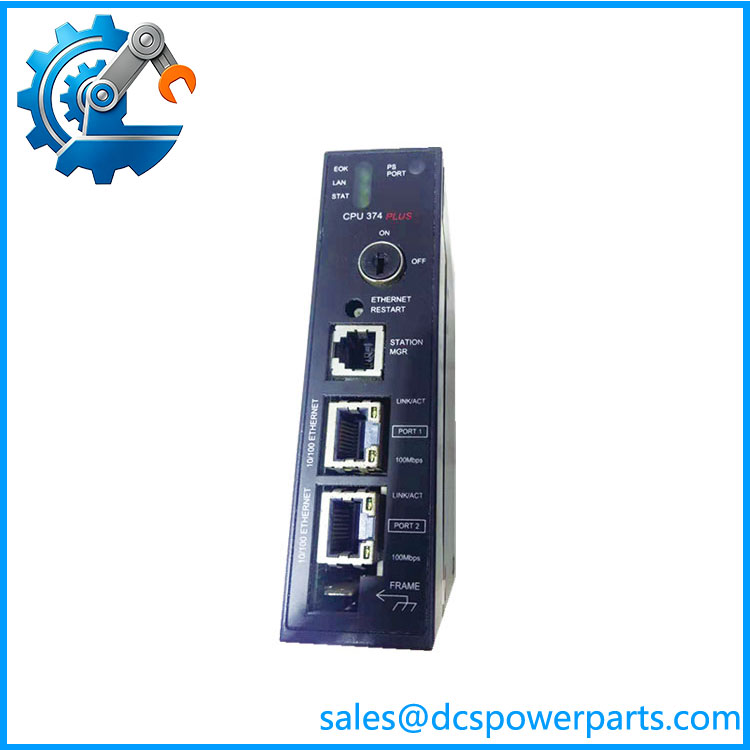

IC693CPU374-HX Series 90-30 Single slot CPU module with embedded Ethernet Interface
- General: The GE Fanuc IC693CPU374 is a single-slot CPU module with a processor speed of 133 MHz. This module is embedded with an Ethernet interface.
- Memory: The total user memory used by the IC693CPU374 is 240 KB. The actual size associated with program memory for the user primarily depends on the configured memory types, such as Register memory (%R), Analog input (%AI) and Analog output (%AO). The amount of memory configured for each of these memory types is 128 to around 32,640 words.
- Power: The power required for the IC693CPU374 is 7.4 watts from 5V DC voltage. It also supports a RS-485 port when the power is supplied. The protocol SNP and SNPX are supported by this module when the power is supplied through this port.
- Operation: This module is operated within the ambient temperature range of 0°C to 60°C. The temperature required for the storage is in between -40° C and +85°C.
- Features: The IC693CPU374 is equipped with two Ethernet ports, which both have auto sensing capabilities. This module has eight baseplates for each system, including a CPU baseplate. The remaining 7 are expansion or remote baseplates and are compatible with a programmable communication coprocessor.
- Battery: The IC693CPU374 module’s battery backup can run for several months. The internal battery can serve as the power supply for up to 1.2 months, and an optional external battery can support the module for a maximum of 12 months.
IC693CPU374-HX
Technical specifications for IC693CPU374
IC693CPU374-HX Series 90-30 Single slot CPU module with embedded Ethernet Interface
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | CPU Module with Communication Interface |
| Product Line | Series 90-30 |
| Part Number | IC693CPU374 |
| Weight | 1.13 lbs (0.51 kg) |
| Ethernet Communication | Supported |
| PLC Programming Services | Supported |
| PLC Configuration Services | Supported |
| Periodic Data Exchange | Supported |
| Diagnostic Tools | Supported |
| Ethernet Processor Speed | 200 MHz |
| IP Addresses | 1 IP Address |
| Ethernet Port Connectors | 2 RJ45 Connectors |
| Embedded Ethernet Switch | Included |
| Serial Port | 1 RS-232 DCE Port |
| Serial Port Speed | 1200 to 115200 bps |
| Daisy Chaining for Ethernet Nodes | Supported |
3. Product Operation Instructions
- Installation Preparation
Wear anti-static wristband before handling. Confirm the power supply is cut off. Insert IC693CPU374-HX into slot 0 of Series 90-30 main baseplate, lock the module fixing clips. Match and install corresponding I/O modules and expansion racks.
- Wiring and Network Connection
Connect 24VDC power supply to the rack power module. Connect Ethernet cable to CPU Ethernet port for programming or upper system communication. Use shielded network cables for long-distance transmission and single-point grounding.
- Software Configuration & Program Download
Launch Logic Developer 90 or VersaPro software, establish communication with CPU. Configure memory allocation, I/O address, network parameters and communication protocols. Write control program and download to CPU module.
- Offline Commissioning Test
Switch CPU mode to Stop state, verify hardware configuration consistency; switch to Run mode, monitor I/O status online, check program execution, PID function and network data transmission.
- Online Operation Monitoring
Monitor CPU running status, fault codes and network load via programming software or HMI. Regularly back up user programs to EZ storage device or computer.
- Maintenance & Replacement
Cut off rack power before replacing the CPU module. After installing a new module, download backup program and restore parameter settings. Regularly check module status LEDs and battery health.
- Troubleshooting
Check LED indicators first when faults occur. Use software diagnostic function to locate communication errors, program faults or hardware failures.
4. Application Fields
- Automotive & General Machinery Manufacturing
Assembly production lines, packaging machines, machine tools, material conveying equipment, robotic auxiliary control systems.
- Water & Wastewater Treatment Industry
Pump group control, chemical dosing system, tank level interlock, water quality monitoring and distributed process control.
- Oil & Gas and Petrochemical Industry
Auxiliary equipment control, pipeline monitoring, compressor interlock, tank farm auxiliary automation control.
- Power Generation & Utilities
Boiler auxiliary control, generator auxiliary system, HVAC of power plants, distributed energy monitoring.
- Metallurgy & Mining Industry
Furnace auxiliary control, conveyor safety interlock, ventilation and water supply system automation.
- Pharmaceutical & Food Processing
Batch production control, sterilization cycle monitoring, cleanroom environmental parameter control.
- Building Infrastructure Automation
Large building HVAC control, central water supply system, intelligent fire auxiliary linkage control.
- Equipment Retrofit & OEM Automation
Upgrade transformation of legacy GE Series 90-30 control systems, customized OEM machine control solutions.
