Description

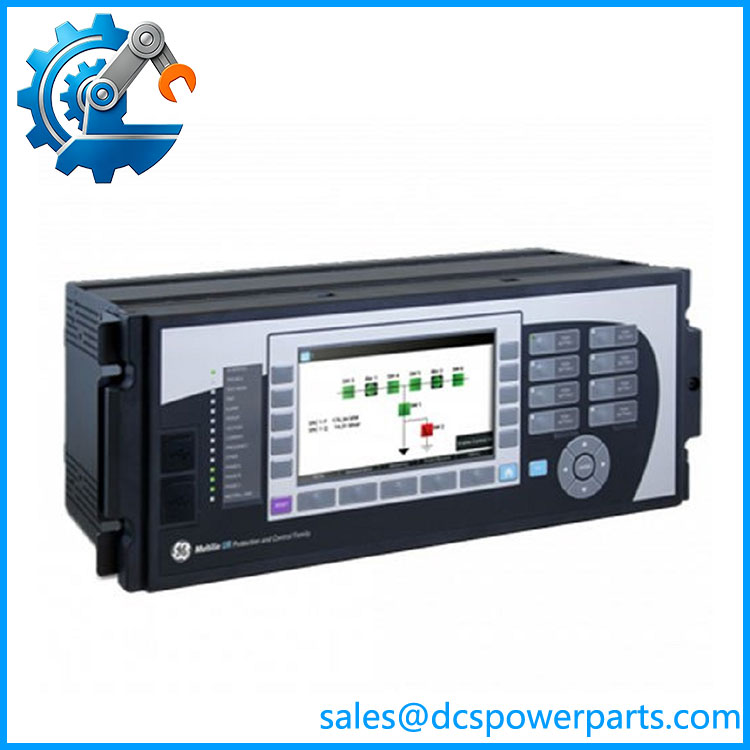

The part number G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C specifies a configuration for the GE Multilin G60 Generator Protection System (part of the Universal Relay / UR Series family).
Technical Specifications
Product Overview
The GE Multilin G60 is an advanced, high-performance digital relay designed for the comprehensive protection, control, and monitoring of medium-to-large generators, hydro-turbines, and generator-transformer units. Part of the scalable UR (Universal Relay) platform, it prevents damage from internal faults, abnormal operating conditions, and grid disturbances.
Key Features:
-
Comprehensive Protection: Provides complete primary and back-up protection elements, including differential protection, stator and rotor ground faults, loss of excitation, out-of-step, and inadvertent energization.
-
Advanced Monitoring & Metering: Offers continuous real-time data tracking, extensive event recording, waveform capture (fault diagnostics), and phasor measurement capabilities (PMU).
-
Modular UR Architecture: Utilizes a flexible, modular card slot design (represented by the alphanumeric string in the part number) allowing customization of I/O channels, power supplies, and communication protocols.
-
Robust Communications: Integrates seamlessly into modern substation automation networks via redundant Ethernet ports supporting IEC 61850, Modbus, DNP3, and IRIG-B time synchronization.
G60-U01-AKH-F8L-H67-M8L-P6D-U6D-W6C
Core Functional Features
✅ Complete generator protection suite
Stator differential (87G), split-phase protection, 100% stator ground fault, loss of excitation (40), negative sequence unbalance (46), over/under frequency, over/undervoltage, volts/hertz overexcitation (24), reverse power, breaker failure, accidental energization, phase distance backup protection.
✅ Powerful programmable logic
FlexLogic with up to 1024 logic lines, supports custom interlock, setting group switching and bay control logic, reducing external auxiliary relays.
✅ Advanced data recording
High-speed fault oscillography (64 samples/cycle), sequence of events (SOE) with millisecond time stamp, trending and disturbance report for post-fault analysis.
✅ Rich communication capacity
Dual Ethernet, RS485; supports IEC 61850, Modbus TCP/RTU, DNP3.0, IEC 60870-5-104; built-in synchrophasor PMU function compliant with IEEE C37.118.
✅ Precise electrical measurement
Three-phase voltage, current, active/reactive power, power factor, frequency, energy accumulation for local monitoring and SCADA uploading.
✅ Modular hot-swappable rack structure
Standard 19-inch horizontal rack mounting; each function module can be replaced individually. PCB conformal coating is available for humid and dusty power station environments.
✅ IRIG-B time synchronization support
Realizes unified clock calibration for whole substation protection system.
Typical Application Scenarios
Thermal & Combined Cycle Power Plants
Primary protection for gas turbine / steam turbine synchronous generators and generator-transformer blocks.
Hydropower & Pumped Storage Power Stations
Bidirectional operating unit protection for generator-motor reversible units.
Industrial Cogeneration Power Plants
Protection for large self-owned synchronous generator sets of metallurgy, petrochemical enterprises.
Power Plant SIS & Protection System Retrofit Projects
Standard spare replacement and dualization upgrade for existing UR series generator protection racks.
Offshore Oil & Gas Power Generation Facilities
Generator unit protection for islanded power supply systems on production platforms.
