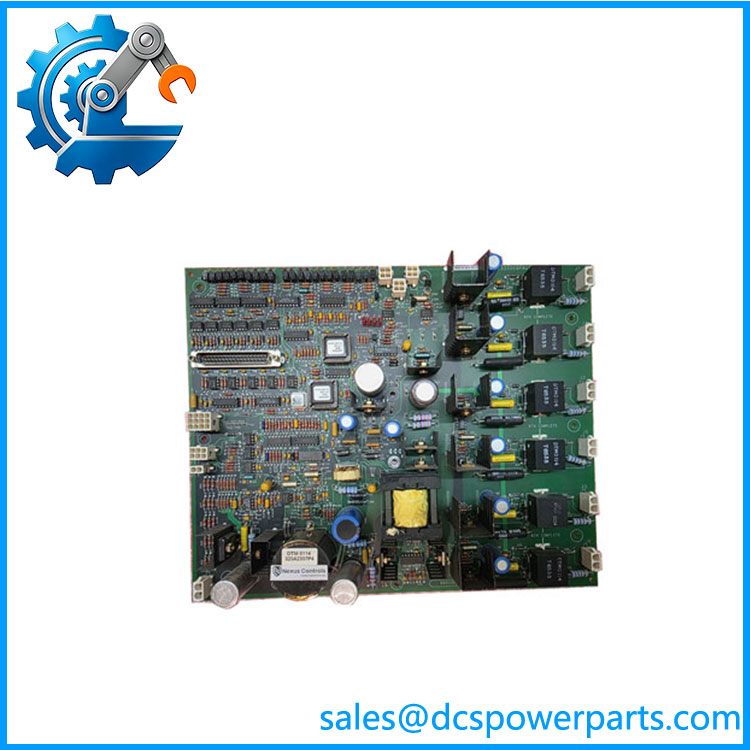

IS200EGPAG1ABC GE Exciter Gate Pulse Amplifier Board
1. Product Features
- It is the core EGPA board for GE EX2100 static excitation system, used to amplify low-level control signals into high-power drive pulses to trigger SCR power thyristors.
- Real-time collection of excitation bridge feedback signals, supporting closed-loop excitation current regulation for synchronous generators.
- Equipped with on-board LED indicators for power status, input command and pulse output, convenient for on-site fault diagnosis.
- Built-in hardware protection including over-temperature, overload and signal abnormality monitoring to prevent excitation system failure.
- Standard rack plug-in design, perfectly compatible with Mark VI / Mark VIe control rack and EX2100 cabinet backplane.
- Conformal coated PCB, strong anti-interference performance, suitable for long-term continuous operation in power plant control cabinet environment.
- Supports configuration via on-board jumpers to adapt to different excitation unit parameters.
- Reliable signal synchronization with main controller to guarantee stable generator voltage adjustment.
IS200EGPAG1ABC
2. Product Parameters
| Item | Specification |
|---|---|
| Brand | GE (General Electric) |
| Model | IS200EGPAG1ABC |
| Full Name | Exciter Gate Pulse Amplifier Board (EGPA) |
| Applicable System | Mark VI / Mark VIe Speedtronic, EX2100 / EX2100e Generator Excitation System |
| Nominal Power Supply | 125 VDC (Supplied by EPDM module) |
| Main Function | SCR firing pulse amplification & feedback signal acquisition |
| Operating Temperature | -20 ℃ ~ +70 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Installation Method | Plug-in installation on EX2100 rack backplane |
| Country of Origin | United States |
| Approximate Gross Weight | 0.45 KG |
| Warranty | 12 months |
3. Product Operation Instructions
- Static Protection: Wear anti-static wristband before handling the module to avoid electrostatic damage to circuit components.
- Pre-installation Check: Confirm the cabinet power is completely cut off; check whether the board surface has damage, corrosion or loose components.
- Installation: Align the board connector with the rack backplane slot, insert smoothly and lock the front panel fixing screw.
- Jumper Setting: Adjust on-board jumpers according to site excitation system configuration requirements before power-on.
- Wiring: Connect external temperature feedback terminals of SCR heat sink and other signal cables following official wiring diagram.
- Power-on Commissioning: Energize the cabinet, connect control system software, verify pulse output and feedback signal collection, complete excitation loop test.
- Daily Operation: Observe LED status indicators; monitor excitation operating parameters through the upper monitoring system.
- Maintenance & Replacement: Cut off all power supply before disassembly. After replacing the board, re-perform loop debugging and functional verification.
- Troubleshooting: Check backplane contact, wiring integrity and jumper configuration when encountering pulse loss or excitation abnormal alarms.
4. Application Fields
- Thermal Power Plants: Steam turbine generator EX2100 static excitation system.
- Combined Cycle Power Plants: Gas turbine & steam turbine generator sets.
- Independent Power Plants & Captive Power Stations.
- Heavy Industry: Steel plant, chemical plant self-generation unit excitation control.
- Energy Storage & Renewable Energy Power Station synchronous generator control.
- Onshore & Offshore Oil & Gas power generation equipment.
- Retrofit, overhaul and spare parts replacement of legacy GE turbine control systems.
