GE IS210AEDBH4AGD | 109W2202P001 | AEDB Dynamic Brake Gate Driver PCB
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS210AEDBH4AGD |
| Assembly P/N | 109W2202P001 |
| Board Family | AEDB |
| Functional Description | Alternative Energy Dynamic Brake – Gate Driver PCB |
| System | GE Mark VI |
| Board Type | Printed circuit board assembly |
| Primary Role | Dynamic-brake gate-drive interface |
| Application | Turbine control / power-conversion equipment |
| Replacement Basis | Complete board number + assembly P/N + revision |
GE component documentation identifies IS210AEDBH4AGD specifically under “GE Energy, AEDB – Alternative Energy Dynamic Brake – Gate Driver PCB” and associates it with assembly 109W2202P001.
The board is part of the Mark VI family used for gas- and steam-turbine control. GE’s Mark VI documentation describes the platform as a turbine control system handling turbine operating parameters, control outputs, alarms, faults, and protective functions.
Product Introduction

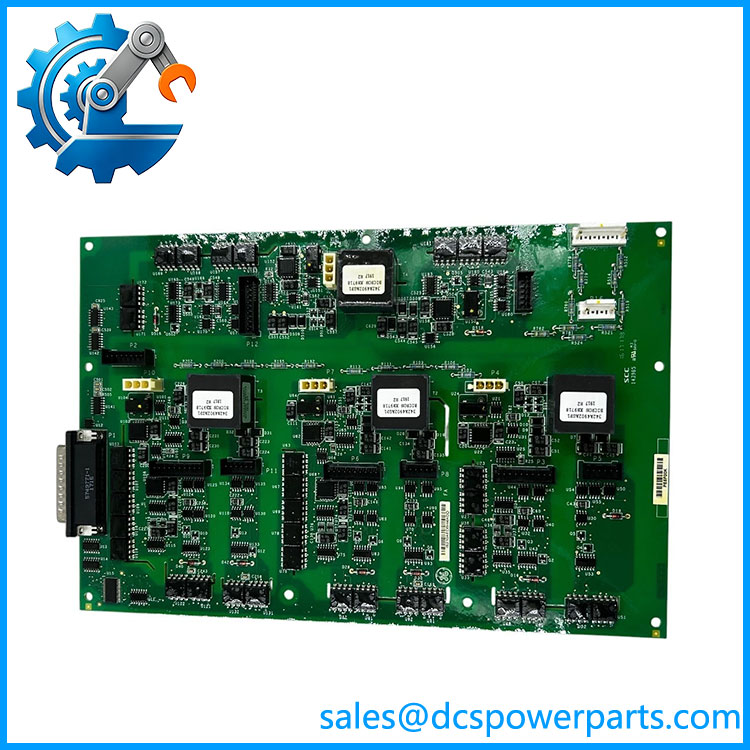

The GE IS210AEDBH4AGD, assembly 109W2202P001, is an AEDB Alternative Energy Dynamic Brake gate-driver PCB for the GE Mark VI platform. Its role is associated with the gate-drive circuitry of a dynamic-braking power stage rather than general-purpose PLC I/O.
This distinction matters during procurement. Some secondary listings describe the same part number generically as an “AE DB Bridge Interface,” but GE-oriented component documentation identifies the AEDB / Dynamic Brake / Gate Driver function more specifically.
IS210AEDBH4AGD
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed gate-driver board can be mistaken for a failed power semiconductor, brake circuit, or control command. On a Mark VI installation, replacing the PCB without checking the associated power stage can simply cause the replacement board to fail again.
Typical Applications
- GE Mark VI turbine control systems
- Dynamic-braking power circuits
- Turbine-generator electrical control systems
- Alternative-energy power-conversion equipment
- Legacy turbine control maintenance
- Mark VI spare-parts inventories
Technical Pitfalls
- Match the AEDB function, not just the IS210 prefix.
The IS210 family contains many different boards. IS210AEDBH4AGD is specifically associated with the AEDB dynamic-brake gate-driver function. - Verify 109W2202P001.
The GE assembly number is an important cross-reference. A board carrying a similar AEDB designation should not automatically be treated as interchangeable. - Check the associated power semiconductor stage.
If the original failure involved an IGBT/thyristor, short circuit, overcurrent event, or brake-resistor fault, inspect the complete power path before installing the replacement gate-driver PCB. - Do not use generic 24 VDC / Ethernet / I/O specifications.
Several reseller pages attach unrelated PLC-style specifications to this board. Those claims are not supported by the stronger AEDB identification and should not be used for engineering approval. - Inspect connectors and transformers.
Secondary board documentation shows multiple connectors and transformer components on the AEDB family. Connector condition, insulation damage, contamination, and evidence of overheating should be checked before installation. - Verify board revision and system configuration.
Mark VI hardware is highly configuration-dependent. Record the complete board label, assembly number, revision markings, and cabinet location before approving a spare. - Gate-drive testing should be controlled.
Do not validate a replacement by immediately applying full operating power to an unverified power stage. The gate driver, power devices, DC link, braking components, feedback, and protective circuits should be checked according to the applicable GE maintenance procedure.
Related Products
- GE IS210AEDBH4A — Closely related AEDB bridge-interface board designation; not automatically equivalent to the AGD version.
- GE IS210AEDBH3AEC — Related Mark VI bridge-interface/AEDB-family board.
- GE IS210AEBIH1ADC — Alternative Energy Bridge Interface PCB; different AEDB/AEBI function.
- GE IS210AEBIH1BAA — Related Alternative Energy Bridge Interface board.
- GE IS210AEAAH1AAA — Alternative Energy Application Board A.
- GE IS210AEPSG1AFC — Alternative Energy power-supply board; different function.
- GE IS200AEDBH4A — Related AEDB/bridge-interface board family designation; verify exact assembly before substitution.
- GE Mark VI AEDB assemblies — Dynamic-brake hardware associated with the Mark VI power-conversion architecture.
Procurement Note
For a replacement, specify the part as:
GE IS210AEDBH4AGD
Assembly P/N: 109W2202P001
Function: AEDB Alternative Energy Dynamic Brake — Gate Driver PCB
Do not approve a substitute solely because a supplier describes it as an “AE DB Bridge Interface.” The AGD suffix and 109W2202P001 assembly number should be matched, followed by verification of the board revision and the associated dynamic-brake power stage.
For used or refurbished inventory, I would request clear photographs of the GE label, revision markings, connector side, and component side before accepting the board as a drop-in spare.
