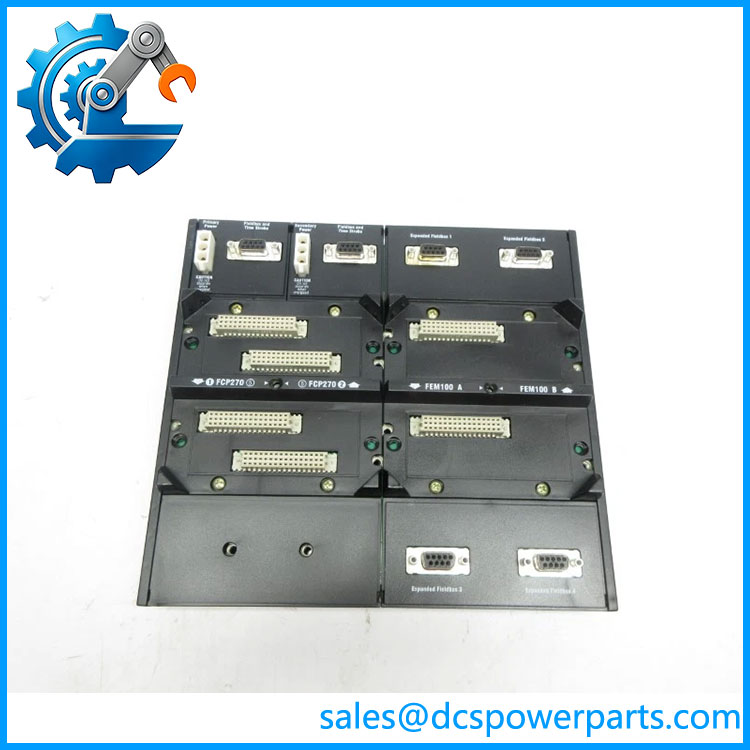

Foxboro P0973CN | 4-Position FCP270 Expansion Baseplate | I/A Series
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Part Number | P0973CN |
| Product Type | Standard 200 Series baseplate |
| Baseplate Function | FCP270 / expansion mounting and interconnection |
| Positions | 4 |
| Mounting Orientation | Vertical |
| Mounting Method | DIN rail |
| Associated Controller | FCP270 |
| Associated Expansion Module | FEM100 |
| System Family | Foxboro I/A Series / Foxboro Evo |
| Baseplate Category | 200 Series |
| Application | DCS control and fieldbus expansion |
Foxboro documentation specifically places P0973CN among the vertical DIN-rail-mounted Standard 200 Series baseplates and identifies it as a 4-position FCP270 expansion baseplate. A separate Foxboro document shows a P0973CN arrangement for 2 FCP270 + 2 FEM100.
Product Introduction
The Foxboro P0973CN is a four-position vertical baseplate used in Standard 200 Series control-system installations. Its primary purpose is to provide the physical mounting, power/interconnection, and module-bus infrastructure required by compatible Foxboro control and expansion hardware. It should therefore be treated as system infrastructure rather than as an active processor or I/O module.
The P0973CN is particularly relevant when maintaining an installed FCP270 architecture. Foxboro documentation shows a dedicated four-position arrangement in which two controllers and two FEM100 fieldbus expansion modules can be installed, making the exact baseplate configuration important when planning replacement or cabinet modifications.
P0973CN
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
Baseplate failures are easy to misdiagnose because the active modules may appear to be faulty when the actual problem is an interconnection, power-distribution, identification, or backplane contact issue.
Typical Applications
- Foxboro I/A Series DCS control cabinets
- controller expansion arrangements
- Standard 200 Series fieldbus/control installations
- Vertical DIN-rail-mounted Foxboro Evo configurations
Technical Pitfalls to Avoid
- Do not confuse with the processor.
is the baseplate. The is the active Field Control Processor installed on the compatible baseplate. - Verify the four-position architecture.
The is not interchangeable with every Standard 200 Series baseplate. Foxboro documentation lists separate two-, four-, and eight-position baseplates for different combinations of , FBM, FCM, FEM, and FBI modules. - Check the mounting orientation and cabinet layout.
is documented as a vertical DIN rail-mounted baseplate. Substituting a mechanically different horizontal arrangement can affect module orientation, wiring access, and cabinet clearances.
Related Products
- — Field Control Processor installed in compatible Standard 200 Series baseplate arrangements.
- Foxboro FEM100 — Fieldbus Expansion Module used in the documented 2-/2-FEM100 configuration.
- Foxboro P0926HW — Two-position -only baseplate.
- Foxboro P0926HZ — Four-position baseplate for FCM/FBM arrangements.
- Foxboro P0926JF — Four-position baseplate for FCM/FBM-related configurations.
- Foxboro P0926JM — Eight-position vertical baseplate for FBM/FCM expansion.
- Foxboro P0973CG — Two-position vertical baseplate associated with /FEM100 arrangements.
- Foxboro P0923LR — Two-position baseplate for FEM100 configurations.
Procurement Check
Before approving a , verify:
- Exact part number:
- Four-position configuration
- Vertical mounting arrangement
- Existing quantity
- or other installed expansion modules
- Baseplate identification settings
- Module positions
- DIN rail dimensions and cabinet clearance
- Backplane/interconnection contacts
- Existing system wiring
- Baseplate revision and physical condition
Recommended procurement description:
Foxboro Standard 200 Series 4-Position Vertical Expansion Baseplate, I/A Series / Foxboro Evo DCS, DIN Rail Mounted Control-System Baseplate.
The key point is that is a passive baseplate/interconnection assembly, not an CPU. For replacement, match the module arrangement and baseplate configuration, not simply the physical size.
