Emerson DeltaV VE4017P0 | M-Series H1 FOUNDATION Fieldbus I/O Interface
Product Introduction

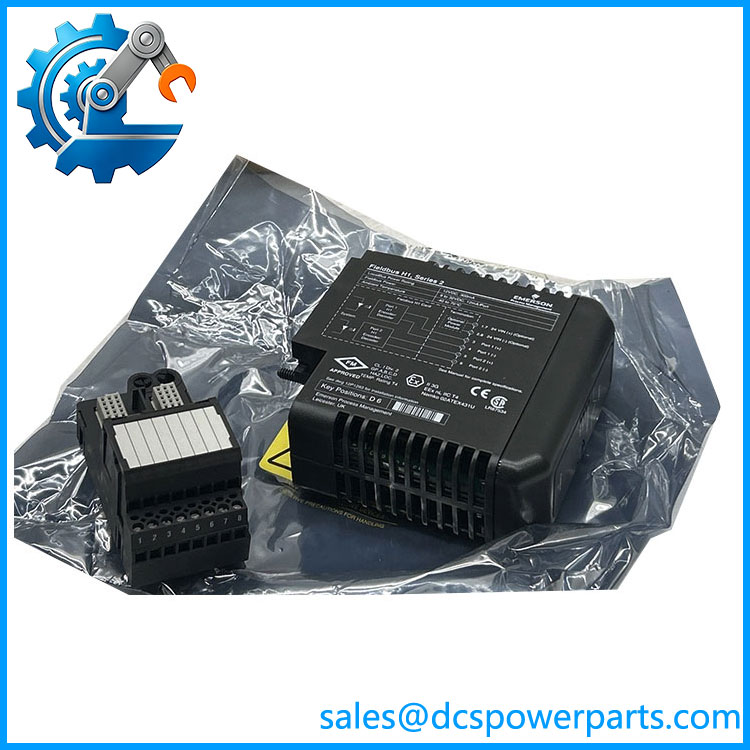

When a DeltaV system needs to communicate with intelligent FOUNDATION Fieldbus instruments, the interface hardware is part of the control architecture—not simply a communications converter. The Emerson DeltaV VE4017P0 provides the H1 interface between supported M-series I/O hardware and FOUNDATION Fieldbus segments, allowing field instruments such as transmitters and digital valve controllers to communicate with the DeltaV system over the fieldbus network. Emerson specifically defines VE4017P0 as an M-series H1 I/O Interface Card and Terminal Block, supplied as a simplex package.
For a legacy DCS installation, the important procurement issue is the complete assembly rather than the card number alone. VE4017P0 requires the appropriate fieldbus power supply and properly terminated H1 segments. Emerson also distinguishes the simplex VE4017P0 from the redundant VE4037P0, which contains two interface cards and a redundant terminal block.
Key Technical Specifications
| Parameter | VE4017P0 Specification |
|---|---|
| Product Model | |
| Manufacturer / Brand | Emerson DeltaV |
| Series | M-series FOUNDATION Fieldbus I/O |
| Series Generation | Series 2 |
| Product Type | H1 I/O Interface Card and Terminal Block |
| Fieldbus Protocol | FOUNDATION Fieldbus H1 |
| Configuration | Simplex |
| Included Interface Cards | 1 |
| Included Terminal Blocks | 1 simplex terminal block |
| Fieldbus Power Requirement | External fieldbus power supply required for each bus segment |
| Segment Termination | Termination required at both ends of each H1 segment |
| DeltaV Software Compatibility | Current M-series H1 cards supported from DeltaV v10.3.1 and later |
| Legacy Compatibility | KJ3242X1-BA1 / KJ3242X1-BA2 requested for earlier DeltaV versions |
| Related Redundant Model | VE4037P0 |
| Common Alternate Reference | KJ3242X1-BA1 |
| Mounting Architecture | DeltaV M-series I/O carrier |
| Application | FOUNDATION Fieldbus H1 device integration |
The package definition and compatibility information above are from Emerson’s product data sheet.
Important specification note: Some secondary listings describe with detailed port counts, current limits, isolation values, or temperature ratings that are not consistently supported by the Emerson product data sheet I found. Those values should not be treated as guaranteed specifications without matching the exact hardware revision and documentation.
Major Features / Advantages
1. Direct M-series FOUNDATION Fieldbus integration
is designed specifically for the DeltaV M-series FOUNDATION Fieldbus I/O architecture. It provides the H1 interface required to connect supported fieldbus segments to the DeltaV control system. This makes it fundamentally different from conventional 4–20 mA analog input hardware.
VE4017P0
2. Simplex architecture
The package contains one H1 interface card and one simplex terminal block. Emerson provides the VE4037P0 as the corresponding redundant M-series H1 package, containing two interface cards and a redundant terminal block.
That distinction matters during procurement. A replacement should not be described as a redundant fieldbus interface simply because redundant H1 hardware exists elsewhere in the DeltaV system.
3. Supports smart field-device integration
FOUNDATION Fieldbus H1 allows compatible smart field instruments to communicate digitally with the control system over the fieldbus segment. In practical terms, this can reduce conventional point-to-point wiring and provide access to field-device information beyond a simple analog process value.
The Emerson documentation specifically notes the use of fieldbus components such as fieldbus power supplies, segment terminators, and fieldbus bricks as part of the installation.
4. Part of the complete fieldbus infrastructure
does not independently power an entire H1 segment. Emerson states that a fieldbus power supply is required for each bus segment, and each segment must be terminated at both ends.
This is a common source of commissioning problems. Replacing the interface card while leaving an incorrect segment-power or termination arrangement untouched will not necessarily solve a fieldbus communication fault.
5. Defined migration path for older DeltaV systems
Emerson’s current documentation states that current M-series H1 I/O interface cards are supported on DeltaV v10.3.1 and later. For earlier DeltaV versions, Emerson directs users toward KJ3242X1-BA1 or KJ3242X1-BA2 variants.
That makes the software version an important part of compatibility verification.
Application Scenarios & Field Pain Points
- DeltaV FOUNDATION Fieldbus networks: Used as the H1 I/O interface for supported M-series DeltaV installations.
- Smart transmitter networks: Suitable for process instruments using FOUNDATION Fieldbus H1 communication.
- Fieldbus valve-control applications: Supports architectures where compatible intelligent valve-positioning equipment communicates over H1.
- Legacy DCS maintenance: Useful when maintaining an installed DeltaV M-series H1 architecture rather than converting the entire field layer to conventional analog I/O.
- DCS expansion: Appropriate when adding H1 fieldbus capacity to a compatible M-series carrier.
Field note: When an H1 segment stops communicating, don’t immediately condemn the . Check the fieldbus power supply, segment voltage, termination at both ends, trunk/spur wiring, device count, grounding/shielding, and individual instrument behavior first. H1 faults frequently originate somewhere in the segment rather than in the I/O interface itself.
Related Products
- VE4037P0 — Redundant M-series H1 I/O Interface Card and Terminal Block package; contains two interface cards and a redundant terminal block.
- KJ3242X1-BA1 — Legacy/alternate H1 interface identification associated with in procurement documentation.
- KJ3242X1-BA2 — Related legacy H1 interface variant identified by Emerson for earlier DeltaV versions.
- VE4015 — M-series pulse/multifunction I/O interface; different signal function and should not be substituted for H1 hardware.
- VE4022 — M-series Series 2+ PROFIBUS DP I/O interface; different fieldbus protocol and application. Emerson’s historical stock documentation lists as the simplex H1 interface and VE4022 as the simplex PROFIBUS DP interface.
- VE4009 — M-series AS-i bus I/O interface; different fieldbus architecture.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with an analog input card
Some third-party listings incorrectly classify this model as an analog input or generic I/O card. Emerson’s own documentation clearly identifies it as an M-series H1 I/O Interface Card and Terminal Block.
2. Verify simplex versus redundant architecture
is the simplex package. VE4037P0 is the redundant package. The two should not be treated as interchangeable assemblies without checking the carrier, terminal block, control strategy, and installed redundancy arrangement.
3. Check the DeltaV version
The current M-series H1 interface cards are documented for DeltaV v10.3.1 and later. Earlier systems may require the specified KJ3242X1 variants. Software compatibility therefore belongs in the purchasing specification, not just the commissioning checklist.
4. Verify the terminal block
The ordering description explicitly includes a simplex terminal block. If a procurement record lists only the interface card or only a board-level part number, verify exactly what is being supplied before approving the order.
5. Check the H1 segment power and termination
Each fieldbus segment requires a fieldbus power supply, and Emerson specifies termination at both ends of the segment. A new interface card cannot compensate for incorrect segment architecture.
6. Be careful with alternate part numbers
KJ3242X1-BA1 and various 12P2471X identifiers appear in procurement records associated with . Treat these as configuration/revision references rather than assuming every related number is an unrestricted drop-in replacement.
FAQ
What is Emerson ?
is an Emerson DeltaV M-series H1 FOUNDATION Fieldbus I/O interface package. Emerson’s ordering information specifies one H1 interface card and one simplex terminal block.
Is an analog input module?
No. It is an H1 FOUNDATION Fieldbus interface, not a conventional analog input card. Its purpose is to connect the DeltaV M-series architecture with compatible H1 fieldbus devices.
Is simplex or redundant?
is simplex. Emerson identifies VE4037P0 as the redundant package, containing two interface cards and a redundant terminal block.
Does require a separate fieldbus power supply?
Yes. Emerson explicitly states that a fieldbus power supply is required for each bus segment. Each segment also requires termination at both ends.
What DeltaV version supports ?
Emerson’s current M-series H1 documentation states that current H1 I/O interface cards are supported on DeltaV v10.3.1 and later. For earlier DeltaV versions, Emerson directs users to KJ3242X1-BA1 or KJ3242X1-BA2.
What is the difference between and ?
is the simplex H1 package with one interface card and one simplex terminal block. is the redundant package with two interface cards and a redundant terminal block.
What should procurement verify before buying ?
Verify the complete model number, interface-card revision, terminal-block part number, DeltaV software version, M-series carrier compatibility, simplex/redundant architecture, and actual hardware condition. If the supplier proposes or a 12P2471X variant instead of , compare the exact revision and installation requirements before accepting it as an equivalent.
