Description
Product Features
The A6312 is a high-precision tachometer and speed monitoring module developed by Emerson, designed exclusively for the AMS 6500 machinery health monitoring system. It is dedicated to real-time rotational speed measurement, overspeed protection and speed state monitoring of industrial rotating machinery. As a core speed safety protection component, it provides accurate speed data acquisition, abnormal speed alarm and reliable overspeed trip interlock for key industrial power equipment.
1. High-precision Speed Measurement: Adopts high-frequency pulse sampling technology, supporting high-resolution rotational speed detection. It can accurately capture subtle speed fluctuations of rotating units, ensuring real-time and precise speed data output for equipment operation control.
2. Wide Frequency Signal Adaptation: Compatible with multiple speed sensor signal types, including magnetic pickup sensors and hall-effect tachometer sensors. It adapts to different pulse signal amplitudes and frequency ranges, meeting speed monitoring requirements of various rotating equipment.
3. Multi-stage Speed Protection Logic: Supports customizable low-speed warning, rated speed deviation alarm and overspeed dangerous trip thresholds. Users can configure delay time and linkage interlock rules to avoid misoperation and realize hierarchical safety protection.
4. Intelligent Full-function Self-diagnosis: Built-in comprehensive fault diagnosis mechanism, which can automatically detect module hardware faults, sensor disconnection, signal loss, pulse abnormality and circuit failures, and upload fault codes to the upper system for rapid maintenance.
5. Industrial-grade Anti-interference Ability: Complies with API 670 and EMC industrial electromagnetic compatibility standards. With reinforced shielding and anti-surge circuit design, it can resist strong electromagnetic interference, vibration and temperature changes in industrial sites for long-term stable operation.
6. Online Hot-swap Support: Features standard rack-mounted hot-swap design, allowing module replacement without system shutdown and equipment outage. It effectively reduces maintenance downtime and improves industrial operation efficiency.
7. Excellent System Compatibility: Provides standard analog signal output and digital data transmission, realizing seamless connection with AMS monitoring software, DCS and SCADA systems to support centralized equipment speed monitoring and intelligent management.

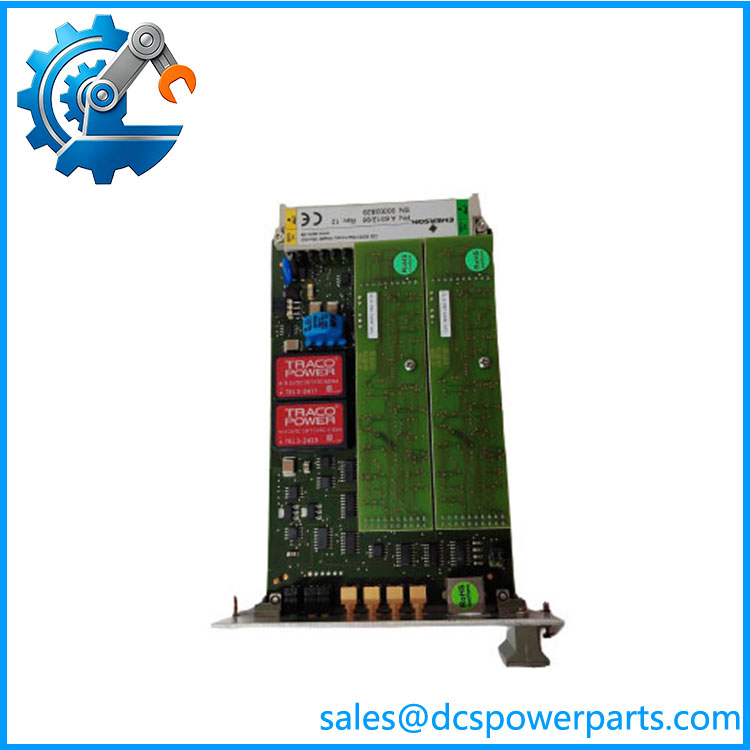

A6312
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
A6312
|
|
Brand
|
Emerson
|
|
Product Type
|
Tachometer Speed Monitor Module
|
|
Applicable System
|
AMS 6500 Machinery Health Monitoring System
|
|
Monitoring Function
|
Rotational speed real-time monitoring, speed fluctuation analysis, overspeed & low-speed protection
|
|
Compatible Sensors
|
Magnetic pickup tachometer sensors, hall-effect speed sensors
|
|
Signal Input Range
|
Industrial standard pulse frequency signal
|
|
Signal Output
|
4-20mA analog output, digital communication signal output
|
|
Protection Mode
|
Multi-stage configurable warning alarm and overspeed trip interlock
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard 3U Rack Mounting, Hot-swap Support
|
|
Industry Compliance
|
API 670, Industrial EMC Certification
|
|
Core Function
|
Real-time speed acquisition, speed trend analysis, abnormal speed alarm, overspeed safety trip, remote data transmission
|
Product Usage Method
1. Pre-installation Inspection: Check the A6312 module appearance, terminals and circuit structure to ensure no damage, oxidation or loose components. Verify the compatibility between the module, AMS 6500 system and on-site tachometer sensors to meet actual speed monitoring requirements.
2. Static Protection Operation: Perform installation in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging the internal precision sampling circuits and core chips of the module.
3. Module Installation & Fixation: Adopt online hot-swap installation without shutting down the monitoring system. Insert the A6312 module into the designated rack slot smoothly, and tighten the fixing screws to ensure stable contact with the backplane bus and avoid signal fluctuation caused by equipment vibration.
4. Sensor & System Wiring: Connect tachometer sensor signal cables, 24VDC power supply cables and communication cables strictly in accordance with official wiring specifications. Distinguish signal input and output interfaces to prevent wrong wiring, short circuit and signal distortion.
5. System Parameter Configuration: After confirming correct wiring, connect the dedicated AMS configuration software. Set speed measurement range, pulse coefficient, low-speed alarm, overspeed trip threshold and linkage logic according to the rated parameters of on-site rotating equipment, then download and save all configuration data.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, sensor connection status and speed signal acquisition accuracy. Simulate different speed states to verify the sensitivity of alarm response and the reliability of trip protection function.
7. Online Operation & Daily Maintenance: After passing debugging and testing, put the module into long-term online monitoring. Regularly check module operating temperature, wiring tightness and real-time speed data stability, clean dust periodically, and back up configuration files to ensure continuous and reliable system operation.
Product Application Fields
1. Thermal Power Industry: Widely used for speed monitoring and overspeed safety protection of steam turbines, generators, induced draft fans and water pump units in thermal power plants, preventing unit runaway and damage caused by abnormal speed.
2. Gas Power Industry: Applied to real-time speed monitoring and hierarchical speed protection of gas turbine units, providing core safety guarantee for gas turbine start-up, load operation and shutdown processes.
3. Petroleum & Chemical Industry: Suitable for speed condition monitoring and overspeed interlock protection of large compressor units, turbo machinery and transmission equipment in oil and gas fields and chemical plants, ensuring safe and stable operation of process equipment.
4. Metallurgy & Building Materials Industry: Used for speed monitoring and fault early warning of large fans, kiln transmission rotating machinery and auxiliary power equipment in steel and cement factories, adapting to high-load and harsh industrial working conditions.
5. Industrial Intelligent Monitoring System: As a key speed safety protection module of the AMS 6500 mechanical health monitoring system, it is widely used in industrial equipment predictive maintenance and safety management to avoid major equipment accidents caused by overspeed failure.
