Description
Product Features
The CSI 6500 is a high-performance, safety-grade machinery health monitoring and protection system developed by Emerson, serving as a core integrated platform for industrial rotating machinery condition monitoring, fault early warning and safety interlock protection. Fully compliant with API 670 international industry standards, it integrates high-precision signal acquisition, intelligent data analysis, configurable safety logic and multi-system docking functions. It supports 24/7 online monitoring of key industrial equipment, realizing deep integration of equipment safety protection and predictive maintenance, and is widely used in critical production scenarios of energy, chemical and metallurgical industries.
1. Integrated Multi-parameter Monitoring Capability: The system supports comprehensive monitoring of shaft vibration, casing absolute vibration, shaft displacement, thrust position, rotational speed, temperature and other core parameters. It is compatible with eddy current, piezoelectric, Hall-effect and various industrial sensors, meeting full-condition monitoring requirements of complex rotating machinery.
2. Safety-grade Redundant Protection Logic: Equipped with configurable 2-out-of-3 voting judgment logic and multi-stage hierarchical alarm mechanism. It effectively eliminates false alarms and missing alarms caused by signal fluctuation and single-point failure, providing high-reliability safety trip protection for key equipment.
3. High-precision Data Acquisition & Analysis: Adopts 24-bit high-resolution ADC high-speed sampling technology, supporting full-spectrum FFT analysis and transient waveform capture. It can accurately capture subtle equipment abnormal characteristics, providing accurate data support for fault diagnosis and trend prediction.
4. Modular Hot-swap Expandable Design: Adopts standard 3U rack modular architecture, supporting free collocation of vibration, speed, position and relay output modules. All functional modules support online hot-swap replacement without system shutdown, greatly reducing equipment maintenance downtime.
5. Complete Intelligent Self-diagnosis System: Built-in full-range self-diagnosis function for chassis, modules, power supply, communication and sensors. It can automatically locate hardware faults, signal abnormalities and cable failures, and upload real-time fault information to the upper system for rapid maintenance.
6. Dual Redundant Power & Industrial Anti-interference: Supports dual 24VDC redundant power supply configuration, avoiding system shutdown caused by single power failure. With industrial-grade EMC electromagnetic shielding and anti-surge design, it stably operates in high-temperature, high-humidity and strong electromagnetic interference industrial environments.
7. Rich Communication & System Compatibility: Supports Modbus RTU/TCP, OPC UA and other mainstream communication protocols, realizing seamless docking with DCS, SCADA, PLC and industrial data historian systems. It supports remote data viewing and mobile terminal asset health management, realizing intelligent centralized monitoring.

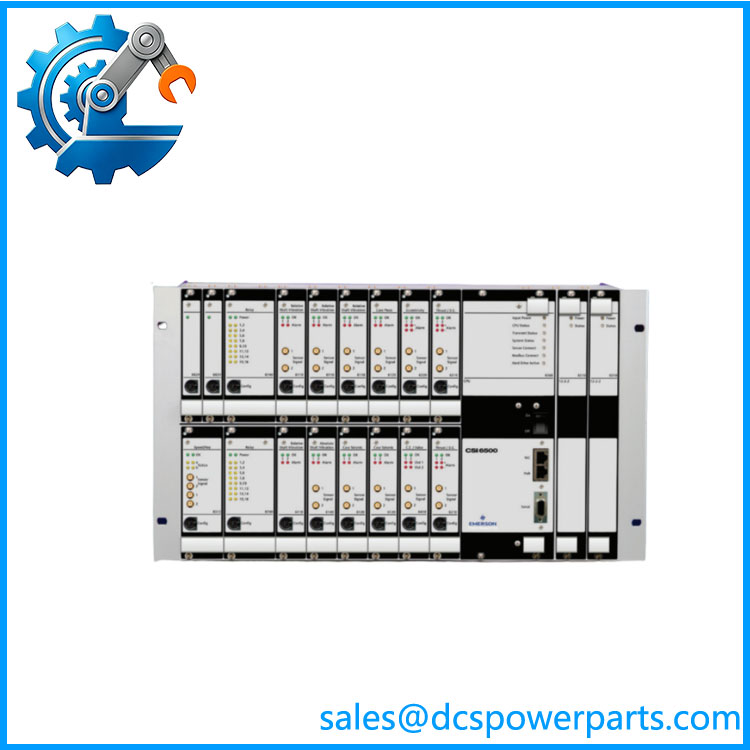

CSI.6500
Product Parameters
|
Item
|
Specification
|
|
Product Model
|
CSI 6500
|
|
Brand
|
Emerson
|
|
Product Type
|
Machinery Health Monitoring & Protection System
|
|
Monitoring Parameters
|
Shaft relative vibration, casing absolute vibration, shaft displacement, thrust position, rotational speed, equipment temperature
|
|
Sampling Accuracy
|
24-bit High-resolution ADC High-speed Sampling
|
|
Protection Logic
|
Configurable 2-out-of-3 voting logic, multi-level alert/danger alarm, adjustable delay trip
|
|
System Architecture
|
Standard 3U Rack Modular Design, Support Multi-module Combination
|
|
Hot-swap Function
|
Full-module Online Hot-swap Support
|
|
Communication Protocol
|
Modbus RTU/TCP, OPC UA, Ethernet Communication
|
|
Power Supply Mode
|
24VDC Industrial Power Supply, Support Dual Redundant Power Configuration
|
|
Relay Output Slots
|
Support 16/32 Relay Output Slots
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Compliance Standard
|
API 670, Industrial EMC Certification, Safety Grade Certification
|
|
Core Function
|
Full-condition equipment monitoring, real-time fault early warning, safety interlock protection, vibration spectrum analysis, predictive maintenance data output
|
Product Usage Method
1. Pre-installation Inspection: Inspect the CSI 6500 system chassis, functional modules, power supply components and communication interfaces to confirm no damage, aging or loose parts. Verify the matching compatibility of sensors, modules and upper control system to meet on-site equipment monitoring and safety protection requirements.
2. Static Protection Operation: Complete system installation and module assembly in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal precision circuits and core components of the system.
3. Chassis & Module Installation: Fix the standard 3U chassis on the industrial cabinet stably. Insert monitoring modules and relay output modules into designated slots in sequence, and tighten fixing screws to ensure stable contact with the backplane bus, avoiding system signal abnormality caused by equipment vibration.
4. System Wiring Connection: Connect sensor signal cables, dual redundant 24VDC power supply cables, system communication cables and interlock output cables in strict accordance with official specifications. Distinguish signal input, power supply and relay output terminals to prevent wrong wiring, short circuit and signal failure.
5. System Parameter Configuration: Connect the dedicated AMS configuration software after correct wiring. Set monitoring ranges, sensor parameters, multi-stage alarm thresholds, 2-out-of-3 voting logic and delay interlock parameters according to on-site rotating machinery operating conditions, then download and save all configuration data.
6. System Debugging & Function Verification: Start the system self-diagnosis program to check chassis operation, module communication, sensor signal acquisition and power supply status. Simulate equipment abnormal working conditions to verify alarm response accuracy and safety trip interlock reliability.
7. Online Operation & Daily Maintenance: Put the system into long-term online monitoring after passing debugging. Regularly check system operating temperature, wiring tightness and real-time data stability, clean dust periodically, back up configuration files and operating data, and conduct regular module status inspection to ensure continuous and stable system operation.
Product Application Fields
1. Thermal Power Industry: Widely applied to full-condition monitoring and safety protection of steam turbines, generators, induced draft fans and water pump units in thermal power plants. It realizes real-time vibration, speed and displacement monitoring of core power equipment to prevent major safety accidents caused by mechanical failure.
2. Gas Power Industry: Used for health monitoring and safety interlock protection of gas turbine units. It provides full-cycle data monitoring and fault early warning for unit startup, variable load operation and shutdown processes, ensuring safe and efficient operation of gas power equipment.
3. Petroleum & Chemical Industry: Suitable for online monitoring and predictive maintenance of large centrifugal compressors, turbo machinery and high-speed rotating process equipment in oil and gas fields and chemical plants, reducing equipment failure rate and production downtime.
4. Hydropower & Energy Industry: Professionally adapted to various types of hydro-turbine units such as Francis, Kaplan and Pelton turbines, realizing accurate vibration and position monitoring of hydropower equipment, and meeting long-term stable operation requirements of hydropower stations.
5. Metallurgy & Building Materials Industry: Applied to condition monitoring and fault early warning of large industrial fans, kiln transmission rotating machinery and auxiliary power units in steel and cement factories, adapting to high-load and harsh industrial working environments.
6. Industrial Intelligent Management System: As a core machinery health monitoring platform, it is widely used in industrial intelligent predictive maintenance and safety control systems, realizing data interconnection with DCS and SCADA systems to support refined equipment management and intelligent production operation.
