Description
Product Features

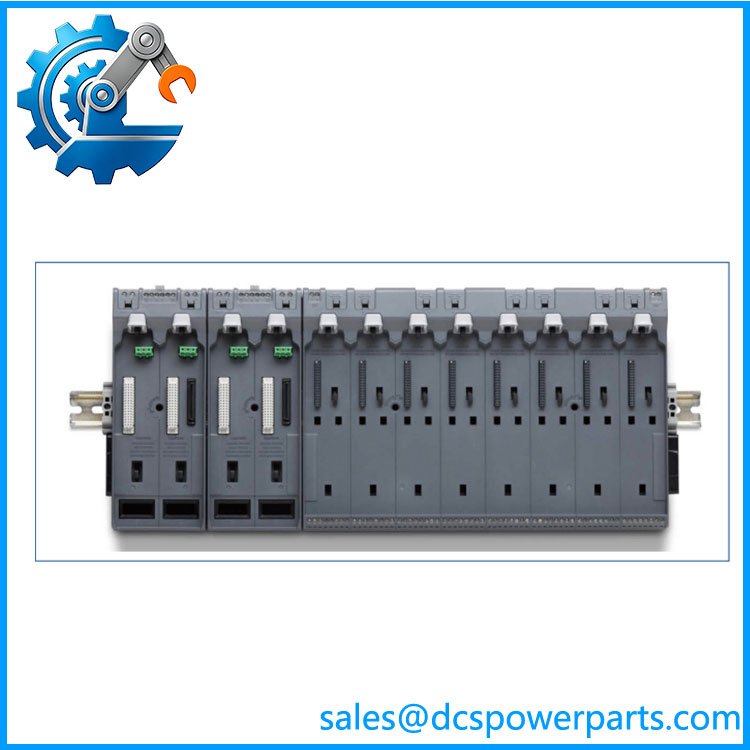

The SE4050E0C0 is a high-performance 8-wide I/O interface carrier developed by EMERSON, specially designed for DeltaV distributed control systems (DCS). Serving as a core hardware carrier for on-site I/O module installation and signal integration, it provides stable mechanical support, reliable bus transmission and standardized power distribution for various DeltaV series I/O modules. With industrial-grade structural design, excellent system compatibility and strong environmental adaptability, it ensures long-term stable operation of field signal acquisition and control loops, meeting the high-reliability operation requirements of industrial automated production processes.
1. 8-Wide Multi-module Expansion Capacity: Supports up to 8 standard DeltaV I/O modules installation in a single carrier, realizing centralized integration of multi-point field signal acquisition and control. The high-density layout optimizes cabinet space utilization and simplifies on-site wiring and system layout.
2. Perfect DeltaV System Compatibility: Fully adapted to EMERSON DeltaV DCS system architecture, supporting seamless docking and bus communication with all DeltaV analog input, analog output, digital input and digital output modules. It ensures zero-delay data synchronization and stable logic interaction of the control system.
3. High-reliability Bus & Power Distribution Design: Built-in high-stability backplane bus and independent power distribution circuit, equipped with 8 groups of standard power bus plugs. It provides stable and isolated power supply and signal transmission for each I/O module, effectively avoiding signal crosstalk and power fluctuation interference.
4. Industrial-grade Reinforced Structure: Adopts high-strength metal shield frame and integrated forming structure, with excellent shock resistance, vibration resistance and anti-deformation capability. The reserved heat dissipation structure ensures uniform heat dissipation of internal modules and avoids performance attenuation caused by long-term high-load operation.
5. Dual Installation Mode Support: Compatible with standard industrial rack mounting and panel mounting modes, adapting to various on-site cabinet layout and installation space requirements. It supports flexible on-site deployment and meets the diversified installation needs of different industrial scenarios.
6. Strict Industrial Compliance Certification: Compliant with RoHS environmental protection standards and IEC 61508 industrial safety specifications, with reliable safety and environmental protection performance. It meets the strict operation standards of high-risk process industries and ensures compliant and stable system operation.
7. Strong Environmental Adaptability: Optimized EMC electromagnetic shielding design, effectively resisting on-site strong electromagnetic interference, temperature fluctuation, dust and humid environments. It supports 24/7 long-term continuous operation of industrial control systems.
8. Convenient Maintenance & Expansion: Standard modular slot design supports independent hot-swap maintenance of single I/O module without affecting the normal operation of other modules and the entire system. It facilitates later system function expansion, module replacement and daily maintenance.
SE4050E0C0
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
SE4050E0C0
|
|
Brand
|
EMERSON
|
|
Product Type
|
DeltaV 8-Wide I/O Interface Carrier
|
|
Applicable System
|
EMERSON DeltaV Distributed Control System (DCS)
|
|
Slot Specification
|
8-Wide Standard I/O Module Slots
|
|
Installable Modules
|
Compatible with all standard DeltaV analog and digital I/O modules
|
|
Power Bus Plug Quantity
|
8 Groups of Independent Power Buss Plugs
|
|
Structural Feature
|
Integrated Metal Shield Frame, Reinforced Anti-vibration Structure
|
|
Heat Dissipation Mode
|
Passive Natural Ventilation Heat Dissipation
|
|
Installation Method
|
Standard Rack Mount / Panel Mount Optional
|
|
Shield Bar Length
|
12 Inches
|
|
Compliance Standard
|
RoHS Compliant, IEC 61508 Industrial Safety Standard
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-25℃ ~ +70℃
|
|
Working Humidity
|
10%~95% Non-condensing
|
|
Anti-interference Design
|
Industrial EMC Electromagnetic Shielding Structure
|
|
Maintenance Feature
|
Support Single Module Online Hot-swap Replacement
|
|
Core Functions
|
I/O module centralized installation, backplane bus data transmission, unified power distribution, signal shielding protection, system expansion support
|
Product Usage Method
1. Pre-installation Inspection: Inspect the SE4050E0C0 carrier appearance, backplane bus interface, power distribution terminals, shielding frame and slot structure to confirm no deformation, damage, oxidation or poor contact. Verify compatibility with DeltaV system I/O modules to meet DCS system assembly specifications.
2. On-site Environment Preparation: Ensure the installation cabinet is dry, dust-free and well-ventilated, avoiding long-term exposure to high temperature, humidity and strong electromagnetic interference environments. Reserve sufficient heat dissipation and maintenance space around the carrier to ensure normal passive heat dissipation.
3. Carrier Installation & Fixation: Select rack or panel mounting mode according to on-site engineering requirements. Place the carrier horizontally and fix it firmly with matching bolts to avoid displacement and loose contact caused by equipment vibration during long-term operation.
4. Power & Ground Wiring: Complete system power supply wiring and safety grounding wiring in strict accordance with industrial DCS wiring specifications. Ensure reliable grounding to eliminate static interference and ensure stable and safe power distribution of each slot power bus.
5. I/O Module Assembly: Insert various DeltaV standard I/O modules into the designated slots of the carrier in sequence according to system configuration requirements. Ensure each module is closely connected with the backplane bus and power interface to guarantee stable signal transmission and power supply.
6. System Debugging & Verification: After completing assembly and wiring, power on the system for self-test. Check the carrier power distribution status, bus communication quality and module operating status to confirm no abnormal alarm, communication failure or signal abnormality, ensuring the whole system runs normally.
7. Daily Operation & Maintenance: Regularly check the carrier’s operating status, heat dissipation condition and wiring tightness during system operation. Clean surface and slot dust periodically, inspect backplane bus and power circuit integrity, and replace faulty modules in time to ensure long-term stable operation of the DCS control system.
Product Application Fields
1. Petroleum & Natural Gas Industry: Widely used in DeltaV DCS control systems of oil and gas fields, offshore platforms and gas transmission stations. It serves as the core I/O hardware carrier to support field process signal acquisition and automatic control, ensuring stable operation of oil and gas production and transmission processes.
2. Chemical & Petrochemical Industry: Deployed in automated control systems of refining, fine chemical and chemical fertilizer production devices. It integrates various process monitoring and control I/O modules, realizing accurate monitoring and stable regulation of chemical reaction temperature, pressure, flow and other parameters.
3. Power Generation Industry: Applied in DCS automation control systems of thermal power and gas power plants. It carries power plant auxiliary equipment monitoring and control modules, supporting intelligent operation and stable scheduling of power generation units.
4. Metallurgy & Building Materials Industry: Suitable for automated production control systems of steel smelting, cement processing and non-ferrous metal industries. Its anti-vibration, dust-proof and anti-interference performance adapts to harsh industrial environments, ensuring reliable operation of on-site control loops.
5. Industrial Process Automation: As a standard core carrier of EMERSON DeltaV DCS system, it is widely used in pharmaceutical, papermaking, water treatment and other process industries. It provides stable hardware support for industrial automatic control, process monitoring and intelligent system expansion.
