Description
Product Features
The A6210 is a high-precision dual-channel position monitoring module developed by Emerson, serving as a core displacement and position signal acquisition component for the AMS 6500 machinery health monitoring system. It is specially designed for continuous position, stroke and linear displacement monitoring of industrial rotating and reciprocating machinery, providing accurate and reliable position data for equipment operation adjustment, fault judgment and safety protection.
1. Dual Independent Monitoring Channels：Equipped with two fully isolated and independent signal input channels, supporting simultaneous position monitoring of two different measuring points. Each channel can be independently configured with measurement ranges and parameters to meet multi-point synchronous monitoring demands of complex industrial units.
2. High-precision Displacement Measurement：Adopts high-resolution digital sampling and precise signal filtering technology, with ultra-low signal noise and excellent linearity. It can capture tiny position changes and micro-displacement deviations of equipment, ensuring high-accuracy measurement results.
3. Wide Sensor Compatibility：Perfectly compatible with mainstream industrial position sensors and linear displacement sensors. It supports multi-type position signal acquisition, covering valve position, cylinder stroke, shaft displacement and casing position monitoring scenarios of various mechanical equipment.
4. Configurable Alarm and Protection Logic：Supports customizable upper and lower limit warning alarms and dangerous trip thresholds, with adjustable delay and linkage logic. It can automatically trigger alarm prompts and safety interlock actions when equipment position exceeds the allowable range to avoid mechanical collision and operational failure.
5. Comprehensive Intelligent Self-diagnosis：Built-in complete hardware self-check and signal fault diagnosis functions. It can actively detect module operation abnormalities, sensor failures, cable open circuits and short circuits, and upload fault information to the upper system for rapid troubleshooting.
6. Industrial-grade Anti-interference Performance：Complies with strict industrial EMC electromagnetic compatibility standards. It adopts reinforced shielding and anti-surge circuit design, which can resist strong electromagnetic interference, vibration and temperature fluctuation on industrial sites, ensuring long-term stable operation.
7. Hot-swap Design and Strong Compatibility：Supports online hot-swap replacement without system shutdown, effectively reducing equipment maintenance downtime. It provides standard analog signal output, realizing seamless connection with DCS, SCADA and upper monitoring platforms for centralized data management.

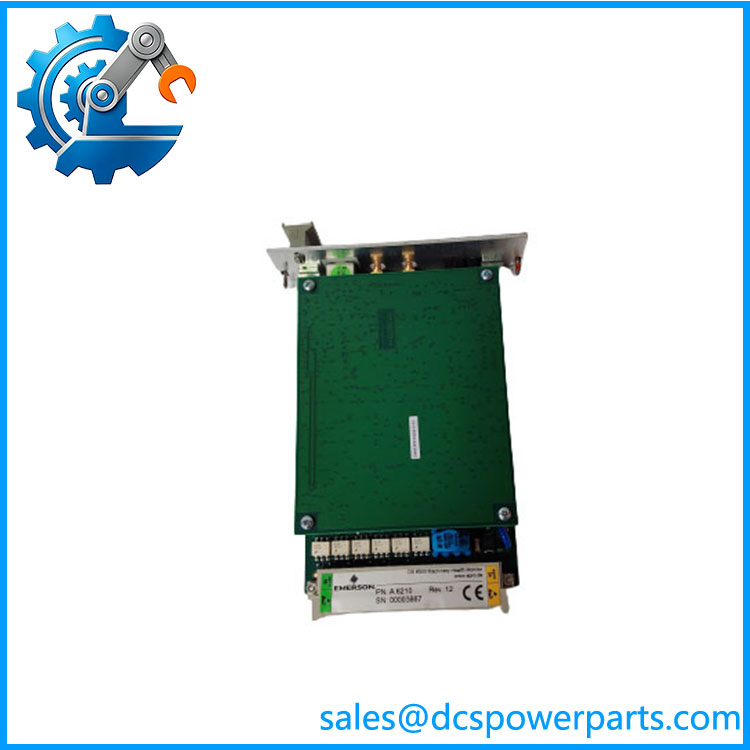

A6210
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
A6210
|
|
Brand
|
Emerson
|
|
Product Type
|
Dual-channel Position Monitor Module
|
|
Applicable System
|
AMS 6500 Machinery Health Monitoring System
|
|
Channel Quantity
|
2 Independent Position Input Channels
|
|
Compatible Sensors
|
Industrial linear displacement sensors, position transmitters, stroke sensors
|
|
Measurement Type
|
Equipment position, linear displacement, stroke and valve position monitoring
|
|
Signal Output
|
4-20mA standard analog output, buffered raw signal output
|
|
Alarm Function
|
Dual-stage warning / danger alarm, configurable trip interlock logic
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard 3U Rack Mounting, Hot-swap Support
|
|
Industry Compliance
|
API 670, Industrial EMC Certification
|
|
Core Function
|
Real-time position displacement acquisition, position trend analysis, abnormal position alarm, safety trip protection, data transmission
|
Product Usage Method
1. Pre-installation Inspection: Inspect the appearance, terminals and circuit structure of the A6210 module to ensure no damage, aging or loose components. Verify the matching degree with the AMS 6500 system and on-site position sensors to meet actual monitoring and installation requirements.
2. Static Protection Operation: Complete installation in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging the internal precision sampling circuits and core chips of the module.
3. Module Installation & Fixation: Adopt online hot-swap installation without shutting down the system. Insert the A6210 module into the designated rack slot smoothly, and tighten the fixing screws to ensure stable contact with the backplane bus and avoid signal deviation caused by equipment vibration.
4. Sensor & System Wiring: Connect position sensor signal cables, 24VDC power supply cables and communication cables strictly in accordance with official wiring specifications. Distinguish dual-channel signal interfaces to prevent wrong wiring, short circuit and signal distortion.
5. System Parameter Configuration: After confirming correct wiring, connect the dedicated AMS configuration software. Set channel measurement range, sampling parameters, position alarm threshold and trip linkage logic according to on-site equipment operating conditions, then download and save all configuration data.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, sensor connection status and signal acquisition accuracy. Simulate equipment position changes to verify alarm response sensitivity and output data stability.
7. Online Operation & Daily Maintenance: After passing debugging and testing, put the module into long-term online monitoring. Regularly check module operating temperature, wiring tightness and real-time data stability, clean dust periodically, and back up configuration files to ensure continuous and reliable system operation.
Product Application Fields
1. Thermal Power Industry: Widely used for valve position, cylinder displacement and mechanical stroke monitoring of thermal power plant steam turbines, generators and auxiliary units, preventing equipment collision and operational faults caused by abnormal position deviation.
2. Gas Power Industry: Applied to key position monitoring and safety protection of gas turbine unit regulating valves, actuators and casing components, providing accurate position data support for unit load adjustment and equipment health assessment.
3. Petroleum & Chemical Industry: Suitable for position and stroke monitoring of large compressor units, turbo machinery and control valve equipment in oil and gas fields and chemical plants, ensuring stable and safe operation of process control equipment.
4. Metallurgy & Building Materials Industry: Used for displacement and position monitoring of large industrial kiln equipment, transmission machinery and regulating valve components in steel and cement factories, adapting to high-load and harsh industrial working conditions.
5. Industrial Intelligent Monitoring System: As an important core module of the AMS 6500 mechanical health monitoring system, it is widely used in industrial equipment predictive maintenance and intelligent operation management to improve equipment safety stability and service life.
