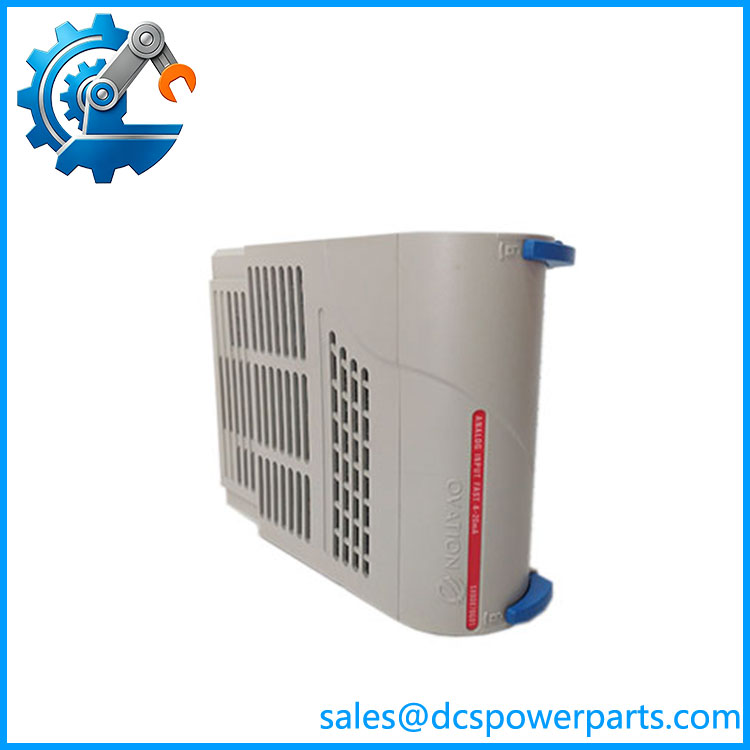

Emerson Ovation 5X00070G01 Product Description

Product Overview

Emerson Ovation 5X00070G01 is a high-speed 14-bit analog input module designed for the Emerson/Westinghouse Ovation Distributed Control System (DCS). It provides eight analog input channels for acquiring process signals and converting them into digital values for real-time monitoring, regulation, alarm handling, and process optimization. Ovation documentation identifies 5X00070G01 specifically as an 8-channel, 14-bit high-speed analog input module for 4–20 mA signals.

The 5X00070G01 Emerson Ovation is intended for applications where fast and reliable acquisition of transmitter signals is required. Its high-speed architecture and individually isolated channels make it suitable for demanding power-generation and process-control environments. The module operates together with an Ovation Personality Module, with documentation identifying 1C31227G01A as the corresponding personality-module option in the standard configuration.

As a maintenance component, Emerson 5X00070G01 is particularly valuable for existing Ovation installations. It allows failed analog-input hardware to be replaced at the module level while preserving established field instrumentation, control logic, I/O configuration, and DCS architecture, helping reduce plant downtime and engineering modification requirements.

Technical Specifications

The Ovation I/O reference specifically lists 5X00070G01 as the 14-bit, 4–20 mA high-speed, 8-channel electronic module. Published technical listings additionally report ±1 V and ±10 V ranges for some descriptions of the module; however, the Ovation I/O documentation clearly identifies the standard 5X00070G01 configuration as the 4–20 mA high-speed version, so signal type should be confirmed against the installed personality module before replacement.

Main Features and Advantages

High-Speed 4–20 mA Acquisition

The primary function of Emerson 5X00070G01 is high-speed acquisition of industrial 4–20 mA transmitter signals. Compared with conventional slower analog input modules, its higher sampling capability makes it appropriate for process variables that require relatively rapid acquisition and control response.

Eight Individually Isolated Channels

The 5X00070G01 Emerson provides eight input channels with individual isolation. This helps reduce interference and minimizes the possibility that a fault or potential difference on one field circuit will propagate into other measurement channels. Published specifications identify isolation between channels and between the field side and logic circuitry.

5X00070G01

14-Bit Resolution

With 14-bit A/D conversion, the module provides substantially finer digital representation of incoming analog values than lower-resolution I/O hardware. This is useful for accurate monitoring of pressure, flow, temperature transmitters and other process measurements.

Integrated Diagnostics

The module supports diagnostic functions including internal fault detection, out-of-range detection and open-loop detection for current inputs. These capabilities help operators and maintenance personnel distinguish instrumentation or wiring problems from normal process variations.

Ovation Controller Self-Calibration

The Emerson 5X00070G01 supports self-calibration initiated by the Ovation controller. This reduces the need for frequent manual adjustment and helps maintain consistent measurement performance over the operating life of the module.

Personality Module Architecture

Ovation’s modular I/O design separates the electronic module from the field-interface personality module. For the high-speed 4–20 mA configuration, Ovation documentation identifies 5X00070G01 together with 1C31227G01A in the applicable module configuration. This architecture simplifies field interfacing and provides flexibility when configuring different I/O types.

Suitable for Legacy System Maintenance

For plants operating established Westinghouse or Emerson Ovation DCS installations, 5X00070G01 provides an effective replacement option for failed analog-input hardware. Maintaining the same module type can avoid unnecessary changes to DCS software, I/O databases, alarm configuration and field wiring.

Application Fields

Emerson Ovation 5X00070G01 is primarily used in power-generation and continuous-process automation systems where high-speed analog measurements must be integrated into a DCS. In thermal power plants, the module can acquire 4–20 mA signals from pressure, flow, level and other transmitters associated with boilers, turbines, feedwater systems, condensers and auxiliary equipment.

In combined-cycle and gas-turbine facilities, the 5X00070G01 Emerson can support acquisition of process and equipment measurements used by the Ovation control system. Fast analog sampling is useful where changing operating conditions need to be reflected quickly in control loops, monitoring displays and protective logic.

The module is also applicable to oil and gas, chemical processing, petrochemical and water-treatment installations using Ovation-based control systems. Typical measurements include pipeline pressure, vessel level, process flow, temperature-transmitter outputs and utility-system parameters.

For large industrial facilities, the eight-channel architecture provides a compact way to integrate multiple field transmitters into one DCS I/O location. The combination of 14-bit resolution, channel isolation and diagnostic capability makes 5X00070G01 suitable for applications where measurement quality and signal integrity are important.

Related Products

• 1C31227G01A — Personality module associated with the high-speed 4–20 mA analog-input configuration of 5X00070G01.
• 5X00070G02 — Related 14-bit high-speed analog-input module for low-level voltage/current applications, including configurations using ±100 mV, ±250 mV, ±1 V or ±1 mA ranges.
• 5X00070G03 — Related 14-bit high-speed analog-input module for higher voltage ranges such as ±5 V to ±10 V.
• 5X00070G04 — Related analog-input module for thermocouple and temperature-compensated applications.
• 1C31224G02 — 14-bit analog-input electronic module for ±1 V applications; a different input configuration from the 5X00070G01.
• 1C31227G02 — Personality module used with applicable Ovation 14-bit voltage-input configurations.
• 1C31132G01 — Ovation analog-output personality/interface hardware for complementary output applications.
• 1C31142G01 — Ovation contact-input module used for discrete field signals.
• Ovation DPU — Distributed Processing Unit that processes I/O data and executes control functions within the Ovation DCS architecture.
