Description
Product Overview
MTL 8521-LC-MT is a PAC8000 Logic Controller module designed for industrial automation and process control applications requiring reliable programmable logic execution, distributed I/O management, and Ethernet-based communication. It belongs to the MTL PAC8000 Controller family, originally developed by MTL Instruments and later integrated into the Eaton Crouse-Hinds industrial automation portfolio. As a dedicated logic controller, 8521-LC-MT provides IEC 61131-3 compliant control programming capabilities and serves as the central processing unit for PAC8000 distributed control architectures.
MTL 8521-LC-MT is optimized for sequential logic control, machine automation, equipment interlocking, and distributed field control applications. Unlike a simple remote I/O interface, 8521-LC-MT executes complete control applications locally, allowing automation strategies to continue operating independently even when communication with higher-level supervisory systems is interrupted. The controller supports PAC8000 Logic Workbench programming and provides an efficient engineering environment for developing, testing, downloading, and maintaining control applications.
Within the PAC8000 distributed automation system, MTL 8521-LC-MT acts as the intelligent control core that communicates with field I/O modules, Ethernet Bus Interface Modules, engineering workstations, and other controllers. It can be installed on controller carrier assemblies such as the PAC8000 8750-CA-NS and integrated into simplex or redundant automation configurations. With industrial-grade design, Ethernet communication capability, and modular expansion support, 8521-LC-MT provides a reliable solution for manufacturing, energy, water treatment, oil and gas, and process automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8521-LC-MT |
| Manufacturer | MTL Instruments / Eaton Crouse-Hinds |
| Product Type | PAC8000 Logic Controller Module |
| Series | PAC8000 Distributed Control System |
| Controller Function | Programmable logic controller / distributed logic processor |
| Programming Standard | IEC 61131-3 Logic Programming |
| Programming Software | PAC8000 Logic Workbench |
| Processor Architecture | Industrial embedded controller processor |
| Ethernet Communication | Dual Ethernet 10/100Base-TX |
| Network Protocol | Modbus TCP/IP and PAC8000 communication services |
| Serial Communication | RS-485 half-duplex interface |
| Serial Port Speed | 1.2 to 115.2 kbps |
| Controller Power Supply | 12 VDC nominal |
| Power Consumption | Approximately 6 W |
| Controller Capacity | Supports distributed I/O and peer controller communication |
| Mounting Method | PAC8000 carrier module installation |
| Operating Temperature | -40°C to +70°C |
| Communication Isolation | Up to 1500 V dielectric isolation |
| Application Environment | Industrial process automation systems |

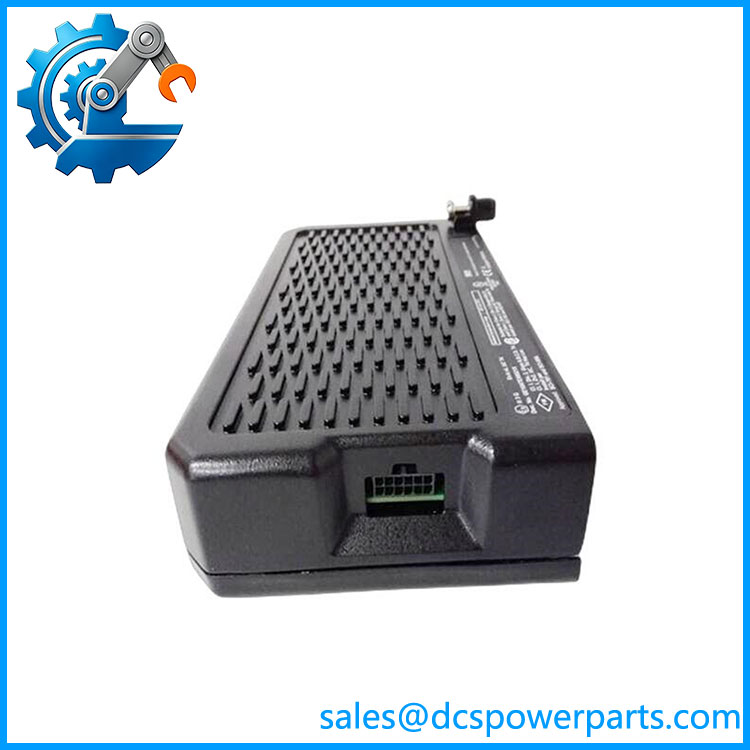

8521-LC-MT
Main Features and Advantages
MTL 8521-LC-MT provides a powerful logic control solution for industrial automation systems requiring reliable local processing and flexible system integration. Its dedicated logic controller architecture allows users to execute control sequences, equipment interlocks, machine operations, and automation routines directly at the field control level, reducing dependence on centralized controllers and improving system response speed.
One of the primary advantages of 8521-LC-MT is its support for IEC 61131-3 programming methods. Engineers can develop structured automation applications using standardized PLC programming techniques, making the controller easier to integrate into existing industrial environments. The PAC8000 Logic Workbench provides configuration, programming, simulation, debugging, and online monitoring functions, improving engineering efficiency throughout the system lifecycle.
MTL 8521-LC-MT offers strong communication flexibility through integrated Ethernet and serial interfaces. The dual Ethernet ports support industrial network architectures using 10/100Base-TX connections, enabling communication with supervisory systems, engineering stations, distributed controllers, and remote I/O networks. The RS-485 interface provides additional connectivity for serial devices and legacy industrial equipment.
Another important advantage of 8521-LC-MT is its distributed control capability. Instead of relying on a single centralized PLC, multiple PAC8000 controllers can operate as independent control nodes and exchange information through peer-to-peer communication. This architecture improves system scalability, reduces network loading, and increases automation system availability.
The modular design of MTL 8521-LC-MT simplifies system installation and maintenance. The controller can be combined with PAC8000 I/O modules, Ethernet Bus Interface Modules, and controller carriers to create customized automation solutions. This allows users to expand systems gradually according to process requirements without replacing existing infrastructure.
MTL 8521-LC-MT is also designed for harsh industrial environments. Its wide operating temperature range and industrial-grade construction make it suitable for applications involving temperature variations, electrical noise, and continuous operation. The controller supports long-term deployment in demanding process industries where reliability and maintainability are essential.
Compared with traditional PLC architectures, 8521-LC-MT provides a compact distributed automation solution that combines local intelligence, network communication, and modular expansion capability. This makes it an effective choice for modern industrial control systems requiring high availability and flexible engineering.
Applications
MTL 8521-LC-MT is widely used in industrial automation applications requiring distributed logic control and reliable field-level processing. In manufacturing facilities, the controller is commonly applied for machine sequencing, production line control, equipment interlocking, and automated process management. Its local execution capability allows machines and subsystems to continue operating efficiently without depending entirely on centralized systems.
In oil and gas installations, 8521-LC-MT is used in remote control stations, skid-mounted equipment, pump control systems, and auxiliary process units. The controller provides reliable logic execution for equipment start/stop sequences, alarm handling, and operational monitoring in demanding industrial environments.
Chemical and petrochemical plants use MTL 8521-LC-MT as part of distributed process automation architectures. The controller can manage local equipment control tasks while exchanging operational information with supervisory control systems and other automation nodes.
Power generation facilities utilize 8521-LC-MT for auxiliary control applications such as cooling systems, pump control, electrical equipment monitoring, and plant utility automation. Its distributed architecture helps improve system availability and simplifies expansion of existing control networks.
Water and wastewater treatment facilities benefit from 8521-LC-MT for controlling pumps, valves, treatment processes, and remote stations. The controller’s Ethernet communication capability allows integration with SCADA systems and plant-wide monitoring platforms.
OEM equipment manufacturers also use 8521-LC-MT to develop customized automation solutions requiring compact control hardware, flexible programming, and industrial communication capability.
Typical application areas include:
- Industrial machine automation
- Process control systems
- Oil and gas facilities
- Chemical processing plants
- Power generation auxiliary systems
- Water treatment systems
- Remote monitoring stations
- Distributed PLC architectures
Related Products
MTL 8521-PC-MT — PAC8000 Process Controller designed for process control applications using DCS-style function block programming.
MTL 8521-HC-MT — PAC8000 Hybrid Controller combining logic control and process control capabilities.
MTL 8521-EB-MT — PAC8000 Ethernet Bus Interface Module used for remote I/O communication.
MTL 8750-CA-NS — PAC8000 controller carrier supporting simplex and redundant controller installation.
MTL 8410-NS-PS — PAC8000 power supply monitoring module for system power supervision.
MTL 8109-DI-DC — PAC8000 digital input module for 24 VDC field signal acquisition.
MTL 8117-DO-DC — PAC8000 digital output module for DC actuator and control applications.
MTL 8103-AI-TX — PAC8000 analog input module for 4–20 mA signal measurement.
MTL PAC8000 Workbench — Engineering software platform used for configuration and programming of PAC8000 controllers.
