Description
Product Features
The A6140 is a high-performance dual-channel absolute vibration monitoring module developed by Emerson, serving as a core functional module of the AMS 6500 machinery health monitoring system. It is specially designed for bearing housing and casing absolute vibration measurement of rotating machinery. Adopting high-precision signal acquisition and filtering technology, it stably collects vibration velocity and amplitude signals of equipment shells, providing accurate vibration trend analysis, fault early warning and safety protection for large turbines, fans, compressors and other key industrial rotating equipment.
1. Dual Independent Isolated Channels: Equipped with two fully isolated and independent signal input channels, supporting simultaneous absolute vibration monitoring of two different equipment measuring points. Each channel supports independent parameter configuration, meeting multi-point synchronous monitoring requirements of complex industrial unit systems.
2. High-precision Absolute Vibration Measurement: Professionally adapted to piezoelectric vibration velocity sensors, achieving high-resolution and high-stability casing absolute vibration detection. It can accurately capture subtle vibration changes and abnormal vibration characteristics of equipment shells, effectively identifying mechanical looseness, friction and unbalance faults.
3. Standard-compliant Industrial Protection: Designed in full compliance with API 670 international machinery protection standards. It supports dual-stage warning and danger trip threshold configuration, realizing hierarchical vibration safety protection to avoid equipment damage and unit shutdown accidents caused by excessive vibration.
4. Intelligent Signal Filtering & Analysis: Built-in multi-frequency band adaptive filtering algorithm, which can filter industrial site clutter interference and retain effective vibration characteristic signals. It supports real-time vibration effective value, peak value and trend data analysis, improving fault identification accuracy.
5. Comprehensive Self-diagnosis Function: Integrates complete hardware and signal self-diagnosis mechanism. It can automatically detect module hardware abnormalities, sensor disconnection, short circuit, signal attenuation and cable faults, and upload real-time fault information to the upper system for rapid troubleshooting and maintenance.
6. Excellent Harsh Environment Adaptability: Adopts industrial-grade reinforced circuit design and EMC electromagnetic shielding technology, with strong resistance to on-site electromagnetic interference, mechanical vibration, high temperature and humidity. It supports 24/7 long-term stable operation in harsh industrial production environments.
7. Hot-swap & Seamless System Compatibility: Supports online hot-swap replacement without system shutdown, reducing equipment maintenance downtime. It provides standard 4-20mA analog output and digital communication interfaces, perfectly docking with AMS monitoring software, DCS and SCADA systems for centralized data monitoring and intelligent management.

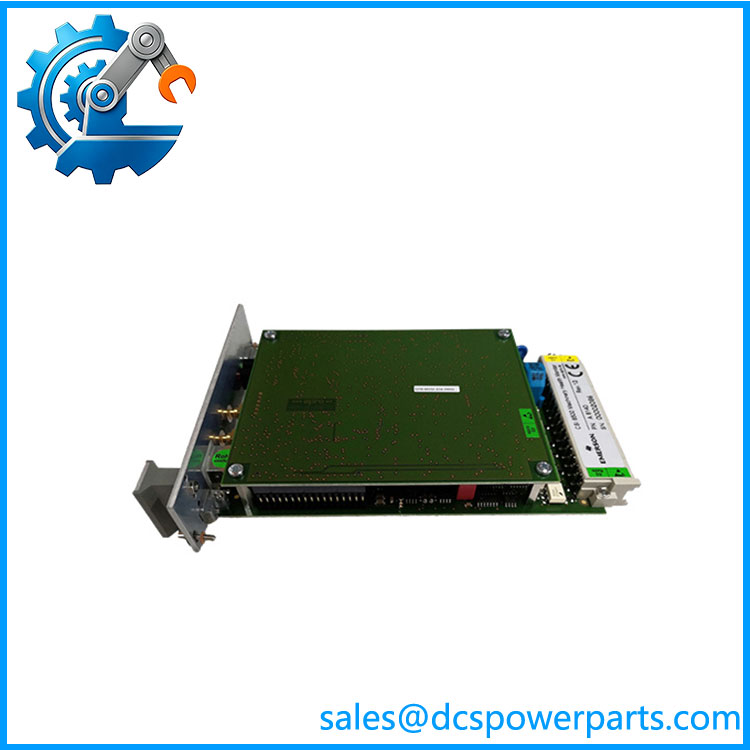

A6140
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
A6140
|
|
Brand
|
Emerson
|
|
Product Type
|
Dual-channel Absolute Vibration Monitor Module
|
|
Applicable System
|
AMS 6500 Machinery Health Monitoring System
|
|
Channel Configuration
|
2 Fully Independent & Isolated Vibration Input Channels
|
|
Compatible Sensors
|
Piezoelectric vibration velocity sensors, absolute vibration sensors
|
|
Monitoring Parameter
|
Equipment casing / bearing housing absolute vibration velocity and amplitude
|
|
Signal Output Mode
|
4-20mA standard analog output, digital communication signal transmission
|
|
Protection Function
|
Configurable dual-stage warning alarm and dangerous trip interlock logic
|
|
Compliance Standard
|
API 670, Industrial EMC Certification
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard 3U Rack Mounting, Online Hot-swap Support
|
|
Self-diagnosis Function
|
Hardware self-check, sensor fault detection, cable fault diagnosis, real-time fault alarm feedback
|
|
Core Application
|
Real-time absolute vibration monitoring, mechanical fault early warning, safety protection and data transmission for rotating machinery
|
Product Usage Method
1. Pre-installation Inspection: Inspect the A6140 module appearance, terminals and internal circuit structure to confirm no damage, oxidation or loose components. Verify the matching compatibility with the AMS 6500 system and on-site piezoelectric vibration sensors to meet absolute vibration monitoring requirements.
2. Static Protection Operation: Complete installation in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging the internal precision sampling circuits and core chips of the module.
3. Module Installation & Fixation: Adopt online hot-swap installation without shutting down the monitoring system. Insert the A6140 module smoothly into the designated rack slot, and tighten the fixing screws to ensure stable contact with the backplane bus and avoid signal fluctuation caused by equipment vibration.
4. Sensor & System Wiring: Connect absolute vibration sensor signal cables, 24VDC power supply cables and communication cables strictly in accordance with official wiring specifications. Distinguish dual-channel signal interfaces to prevent wrong wiring, short circuit and signal distortion faults.
5. System Parameter Configuration: After confirming correct wiring, connect the dedicated AMS configuration software. Set vibration measurement range, frequency filtering parameters, alarm threshold and trip interlock logic according to the rated operating parameters of on-site rotating machinery, then download and save all configuration data.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, sensor connection status and vibration signal acquisition accuracy. Simulate vibration working conditions to verify alarm response sensitivity and protection function reliability.
7. Online Operation & Daily Maintenance: After passing debugging and testing, put the module into long-term online monitoring. Regularly check module operating temperature, wiring tightness and real-time vibration data stability, clean dust periodically, and back up configuration files to ensure continuous and reliable system operation.
Product Application Fields
1. Thermal Power Industry: Widely used for casing and bearing housing absolute vibration monitoring of steam turbines, generators, induced draft fans and water pump units in thermal power plants, effectively preventing equipment faults caused by mechanical looseness, friction and excessive vibration.
2. Gas Power Industry: Applied to real-time absolute vibration condition monitoring of gas turbine units, providing accurate vibration data support for unit load adjustment, equipment health assessment and predictive maintenance to ensure safe and stable operation of gas power equipment.
3. Petroleum & Chemical Industry: Suitable for casing vibration monitoring and fault early warning of large centrifugal compressors, turbo machinery and high-speed rotating process equipment in oil and gas fields and chemical plants.
4. Metallurgy & Building Materials Industry: Used for vibration protection monitoring of large industrial fans, kiln transmission rotating machinery and auxiliary power equipment in steel and cement factories, adapting to high-load and harsh industrial working conditions.
5. Industrial Intelligent Monitoring System: As a core absolute vibration monitoring module of the AMS 6500 mechanical health monitoring system, it is widely used in industrial equipment predictive maintenance and safety management to reduce equipment failure rate and operational risks.
