Description
Product Features

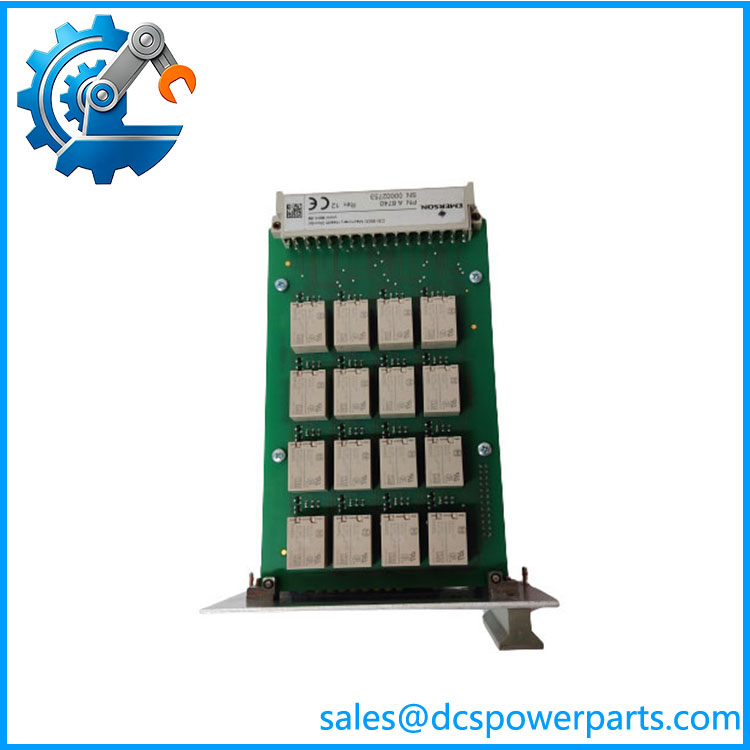

The A6740 is a high-reliability 16-channel output relay module developed by Emerson, serving as a core logic output and interlock control component for the AMS 6500 machinery health monitoring system. Designed for safety interlock and alarm signal output of industrial rotating machinery protection systems, it converts monitoring module fault signals, warning and danger status into standard relay switch signals. Fully compliant with API 670 industry standards, it provides stable and reliable logic control output for unit safety protection, equipment linkage and on-site DCS system signal interaction.
1. 16 Independent Relay Output Channels: Equipped with 16 isolated SPDT relay output channels, supporting multi-point centralized alarm output and multi-group interlock control. Each channel can be independently configured to meet complex logic output requirements of large unit protection systems.
2. Massive Signal Input Compatibility: Supports up to 60 status input signals including channel clear, alert and danger status, which can match multiple monitoring modules in the AMS 6500 system to realize centralized signal integration and unified output control.
3. Flexible Configurable Logic & Delay: Built-in rich logic editing functions, supporting AND, OR, triple redundant judgment and other combined logic modes. The relay output delay time is adjustable from 0 to 30 seconds, which effectively prevents false interlock caused by transient signal fluctuations.
4. Isolated Safety Circuit Design: Each relay channel adopts electrical isolation design, which can effectively isolate on-site interference signals and avoid cross-channel signal crosstalk. The high-strength contact load capacity ensures stable switching action under industrial voltage conditions.
5. Intuitive Status Indication: Equipped with independent LED status indicators for each channel, which can visually display relay pull-in status, signal input status and module operating status, facilitating on-site staff to quickly judge working conditions and troubleshoot faults.
6. Complete Self-diagnosis & Fault Feedback: Integrates module hardware self-check, relay circuit abnormality and signal matching fault diagnosis functions. It can upload operating status and fault information to the upper system in real time to ensure the integrity and reliability of the protection logic loop.
7. Hot-swap & High Industrial Adaptability: Supports online hot-swap replacement without system shutdown, reducing maintenance downtime. Adopts industrial-grade anti-interference and shock-proof design, adapting to harsh industrial environments such as high temperature, humidity and electromagnetic interference.
A6740
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
A6740
|
|
Brand
|
Emerson
|
|
Product Type
|
16-Channel Output Relay Module
|
|
Applicable System
|
AMS 6500 Machinery Health Monitoring System
|
|
Output Channel Quantity
|
16 Independent SPDT Relay Output Channels
|
|
Signal Input Capacity
|
Up to 60 inputs (Channel Clear, Alert, Danger status signals)
|
|
Output Delay Range
|
0s ~ 30s Configurable
|
|
Relay Contact Rating
|
2A @ 250VAC, 1A @ 48VDC
|
|
Logic Function
|
AND, OR, triple redundant judgment, multi-group combined logic configuration
|
|
Status Indication
|
Independent LED indicator for each channel
|
|
Isolation Performance
|
Channel-to-channel electrical isolation, anti-crosstalk design
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard 3U Rack Mounting, Online Hot-swap Support
|
|
Compliance Standard
|
API 670, Industrial EMC Certification
|
|
Core Function
|
Monitoring signal logic judgment, alarm relay output, equipment safety interlock, DCS system signal docking
|
Product Usage Method
1. Pre-installation Inspection: Inspect the A6740 module appearance, terminals, relay circuits and indicator lights to confirm no damage, aging or poor contact. Verify the matching performance with the AMS 6500 system to ensure compatibility with on-site protection logic and interlock system requirements.
2. Static Protection Operation: Complete installation in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal relay components and control circuits of the module.
3. Module Installation & Fixation: Adopt online hot-swap installation without shutting down the monitoring system. Insert the A6740 module smoothly into the designated rack slot, and tighten the fixing screws to ensure stable contact with the backplane bus and avoid logic output errors caused by vibration.
4. System Wiring Connection: Connect system signal input cables, 24VDC power supply cables and on-site interlock output cables in strict accordance with official specifications. Distinguish signal input terminals and relay output terminals to prevent wrong wiring, short circuit and signal failure.
5. Logic Parameter Configuration: After confirming correct wiring, connect the dedicated AMS configuration software. Set channel association logic, alarm trigger conditions, relay delay time and output mode according to on-site equipment protection requirements, then download and save all configuration parameters.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, signal input recognition and relay action accuracy. Simulate warning and danger signals to verify the reliability of logic judgment and relay output action.
7. Online Operation & Daily Maintenance: After passing debugging, put the module into long-term online operation. Regularly check module operating temperature, indicator status and wiring tightness, clean dust periodically, and back up logic configuration files to ensure stable and accurate operation of the protection interlock system.
Product Application Fields
1. Thermal Power Industry: Widely used in steam turbine and generator protection systems of thermal power plants, realizing vibration, temperature and abnormal state alarm output and safety interlock control of power generation units, ensuring safe operation of core power equipment.
2. Gas Power Industry: Applied to gas turbine unit monitoring and protection systems, responsible for centralized logic judgment and relay output of various fault alarm signals, providing reliable interlock protection for unit start-up, operation and shutdown processes.
3. Petroleum & Chemical Industry: Suitable for safety monitoring and interlock control of large compressors, turbo machinery and process rotating equipment in oil and gas fields and chemical plants, realizing unified output of equipment fault alarm signals.
4. Metallurgy & Building Materials Industry: Used for fault alarm linkage and equipment safety interlock of large industrial fans, kiln transmission equipment and auxiliary rotating units, adapting to high-load and harsh industrial production conditions.
5. Industrial Intelligent Monitoring System: As a core logic output module of the AMS 6500 mechanical health monitoring system, it is widely used in industrial equipment predictive maintenance and safety control systems, realizing seamless docking between monitoring system and on-site control equipment.
