Emerson Ovation 5X00453G01 Product Description

Product Overview

Emerson 5X00453G01 is an I/O interface module associated with the Emerson Ovation distributed control system (DCS). Publicly available product references identify this part number as a Remote Node Interface (RNI) / I/O interface module, while some aftermarket databases classify it differently, so the exact system configuration should be checked against the installed Ovation hardware documentation before replacement.

The Emerson 5X00453G01 is intended to provide an interface between the Ovation control architecture and distributed or remote I/O resources. In an Ovation installation, remote I/O architecture allows field signals and control devices to be located closer to the process equipment, reducing long field-cable runs while maintaining centralized DCS supervision and control. Available descriptions associate the module with remote-node connectivity and Ethernet-based communications.

For power-generation and process plants maintaining an existing Ovation system, 5X00453G01 Emerson is particularly useful as a lifecycle replacement component. Correct part-number matching is important because similarly numbered Ovation modules can perform substantially different functions.

Technical Specifications

Note: Public sources disagree on the exact functional classification of 5X00453G01—RNI, processor and digital-I/O descriptions all appear online. The strongest repeated identification is the Ovation Remote Node Interface/I/O interface designation. Exact voltage, channel count, connector and environmental specifications should therefore be verified against the original Emerson documentation for the installed Ovation generation.

Main Features and Advantages

Remote I/O Connectivity

The primary reported role of Emerson 5X00453G01 is to provide connectivity between the Ovation DCS and remote I/O resources. This allows field acquisition and control points to be distributed around a plant instead of concentrating every I/O connection in the main control cabinet.

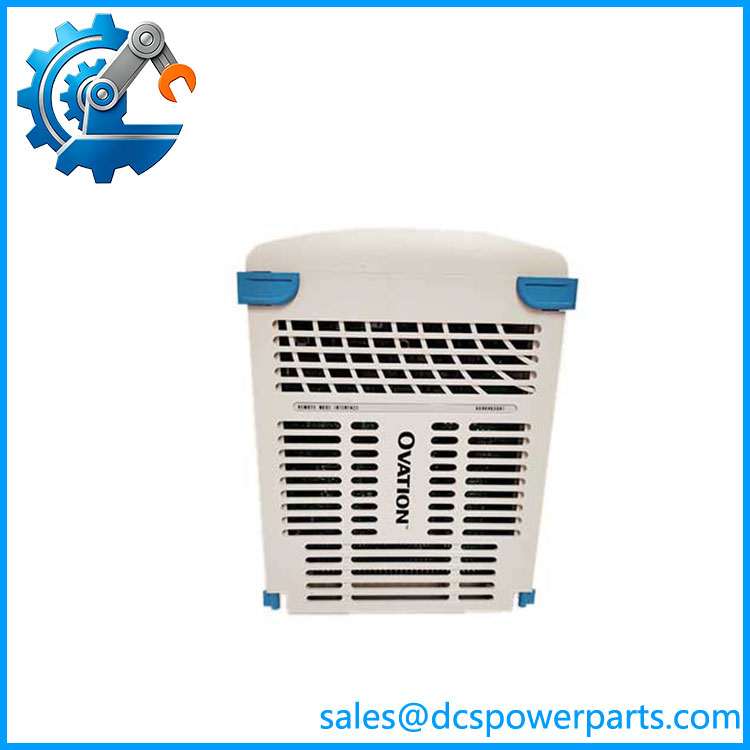

5X00453G01

Distributed Control Architecture

The 5X00453G01 Emerson supports the distributed architecture that is central to Ovation installations. Remote I/O can be positioned close to boilers, turbines, pumps, valves, skids and other process equipment, reducing wiring complexity and making large control systems easier to expand.

Ethernet-Based System Integration

Available references describe Ethernet-based connectivity for the module. This provides a practical communication path between remote field I/O and higher-level Ovation controllers, supporting the transfer of process measurements, equipment status and control commands.

Modular Maintenance

The module-based Ovation architecture allows individual interface hardware to be replaced without redesigning the entire DCS. For plants with long operating lifecycles, maintaining a spare 5X00453G01 can reduce troubleshooting and restoration time following a node or interface failure.

Reduced Field Wiring

By placing remote I/O closer to field devices, an RNI-based architecture can reduce the amount of multicore signal wiring routed back to the central control room. This can simplify cabinet layouts and reduce installation complexity, particularly in large power stations and process plants.

Ovation System Compatibility

The 5X00453G01 is intended for Emerson Ovation environments rather than generic PLC applications. This is important when selecting a replacement because the correct Ovation hardware generation, node architecture and software configuration must be considered together.

Application Fields

Emerson Ovation 5X00453G01 is primarily applicable to distributed process-control installations requiring remote I/O connectivity. In thermal and combined-cycle power plants, remote nodes can be positioned near boilers, turbines, generators, balance-of-plant equipment and auxiliary systems, allowing field signals to reach the Ovation DCS without excessive centralized wiring.

In oil and gas and petrochemical facilities, the 5X00453G01 Emerson can support distributed acquisition and control around pumps, compressors, storage systems, process skids and utility equipment. Remote I/O architecture is especially useful where process units are physically separated from the main control building.

Chemical plants and water-treatment facilities can similarly benefit from distributed I/O, particularly where numerous valves, motors, instruments and process transmitters are spread across large operating areas. The module can form part of the communication path between these field resources and the central Ovation control system.

For maintenance and modernization projects, 5X00453G01 is most valuable where an existing Ovation installation must remain operational. Replacing the matching interface module can preserve existing control logic, field wiring architecture and operator-system integration while avoiding a complete DCS migration.

Related Products

• 5X00594G01 — Emerson Ovation analog input module used for process-variable acquisition; complements remote I/O/interface hardware.
• 5X00481G01 — Related Ovation I/O module used for discrete control functions.
• 5X00846G01 — Ovation analog I/O hardware used for additional process measurement capacity.
• 5X00453G02 — Related part-number variant that should be checked when replacing or expanding a 5X00453G01 installation.
• 1C31179G02 — Emerson/Westinghouse Ovation remote I/O hardware associated with the broader Ovation I/O architecture.
• 1C31132G01 — Ovation analog output module for sending process-control signals to field equipment.
• 1C31194G03 — Related Ovation control module used in distributed control applications.
• Ovation DPU — Distributed Processing Unit responsible for control and I/O processing within the Ovation DCS architecture.
