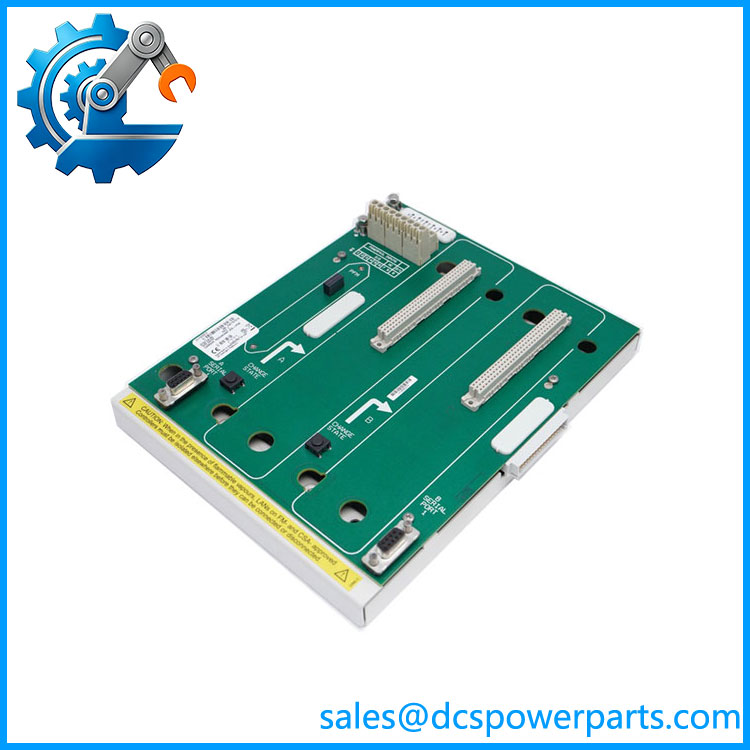

MTL Instruments / GE Intelligent Platforms 8750-CA-NS is a PAC8000 controller carrier module designed for industrial process automation systems requiring flexible controller installation, power monitoring, and reliable field communication infrastructure. It is part of the MTL 8000 Series distributed I/O system (later associated with GE Intelligent Platforms industrial automation solutions) and provides the mechanical and electrical backbone for mounting controllers, Ethernet Bus Interface Modules (EBIMs), power monitoring modules, and associated I/O components.
MTL 8750-CA-NS serves as a carrier platform that supports up to two controllers or EBIM modules, allowing users to implement simplex or redundant control architectures. The module provides controller serial port connections, manual change-state/failover buttons, and interfaces for power supply monitoring modules. Through integration with the PAC8000 modular I/O architecture, 8750-CA-NS enables distributed control systems to connect controllers, communication modules, power supplies, and I/O modules into a unified automation node.
Designed for industrial environments, MTL 8750-CA-NS is optimized for applications requiring high availability, modular expansion, and simplified maintenance. It provides a stable mounting and interconnection platform for process control systems used in oil and gas, chemical processing, power generation, manufacturing, and hazardous area automation applications. With support for redundant controller configurations and power failure monitoring, 8750-CA-NS improves system reliability and helps minimize downtime in critical process operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8750-CA-NS |
| Manufacturer | MTL Instruments / Eaton Crouse-Hinds / GE Intelligent Platforms |
| Product Type | Controller Carrier Module |
| Series | PAC8000 Process I/O System |
| Main Function | Controller and EBIM mounting carrier with power monitoring capability |
| Controller Capacity | Supports up to two controllers or EBIM modules |
| Controller Configuration | Simplex or redundant controller configuration |
| Supported Modules | 8521 Series controllers, EBIM modules, power supply monitor module |
| Power Monitoring | Supports 8410-NS-PS power supply monitoring module |
| Communication Interface | Controller serial port connections |
| Failover Function | Manual controller change-state buttons |
| Power Fail Inputs | Up to seven power fail monitoring inputs |
| Mounting Type | Panel mounting |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| System Architecture | PAC8000 modular distributed I/O system |
| Application Environment | Industrial process control and hazardous area automation |
8750-CA-NS
Main Features and Advantages
MTL 8750-CA-NS provides a reliable hardware foundation for PAC8000 distributed control systems by integrating controller mounting, communication connections, and power supervision functions into a single industrial carrier platform. Unlike simple mounting accessories, 8750-CA-NS performs an essential role in system organization by providing electrical interconnection between controllers, communication modules, power supplies, and I/O components.
One of the key advantages of 8750-CA-NS is its support for redundant controller configurations. In critical process applications where continuous operation is required, the carrier allows installation of dual controllers or EBIM modules, enabling improved system availability and easier implementation of fault-tolerant architectures. This redundancy capability is particularly valuable in industries where unexpected shutdowns can result in significant production losses.
MTL 8750-CA-NS also provides integrated power monitoring capability through compatibility with the 8410-NS-PS Power Supply Monitor module. The system can monitor multiple power supply inputs and report failures to the controller, allowing operators and maintenance personnel to identify power-related issues before they affect plant operation. This improves predictive maintenance capability and reduces troubleshooting time.
The modular design of 8750-CA-NS simplifies installation and maintenance. Controllers, bus interface modules, and related components can be installed in an organized structure, reducing wiring complexity and improving cabinet layout efficiency. The carrier provides a standardized platform that supports expansion and system modifications without requiring major redesign.
Another important feature of MTL 8750-CA-NS is its compatibility with PAC8000 open architecture. The system supports different communication technologies through appropriate bus interface modules, allowing integration with various industrial networks and field devices. This flexibility enables engineers to design automation systems according to specific application requirements.
The rugged industrial construction of 8750-CA-NS allows reliable operation in demanding environments. With a wide operating temperature range and industrial mounting design, the module is suitable for process industries, remote installations, and applications requiring long-term continuous service.
Through its combination of controller support, redundancy capability, power monitoring, and modular architecture, 8750-CA-NS provides an effective solution for building reliable distributed automation systems.
Applications
MTL 8750-CA-NS is widely used in industrial process control systems where flexible controller installation and high system availability are required. In oil and gas facilities, the module is commonly used as part of PAC8000 distributed I/O systems for monitoring and controlling production equipment, compressors, pumps, valves, and remote process units.
In chemical and petrochemical plants, 8750-CA-NS supports automation architectures that require reliable communication between controllers, field devices, and supervisory systems. The ability to support redundant controller arrangements makes it suitable for applications where continuous production and process safety are critical.
Power generation facilities use MTL 8750-CA-NS in auxiliary control systems, balance-of-plant automation, and distributed monitoring applications. Its power monitoring capability helps ensure stable operation by detecting supply failures and providing early warning of potential system problems.
The module is also suitable for manufacturing plants, water treatment facilities, pharmaceutical production lines, and other process industries requiring modular automation solutions. By providing a structured platform for controllers and communication modules, 8750-CA-NS helps simplify system integration and improve maintainability.
In hazardous area applications, 8750-CA-NS can be integrated into PAC8000 systems designed for industrial environments requiring robust field automation equipment. The modular architecture allows system designers to combine appropriate controllers, bus interfaces, and I/O modules according to project requirements.
Typical application areas include:
- Oil and gas process automation
- Chemical and petrochemical plants
- Power generation systems
- Water and wastewater treatment
- Manufacturing process control
- Hazardous area automation
- Distributed control systems
- Remote industrial monitoring systems
