Description
Product Features
The A6220 is a high-performance dual-channel vibration monitoring module developed by Emerson, serving as a core dynamic signal acquisition unit for the AMS 6500 machinery health monitoring system. Designed for online vibration monitoring and protection of industrial rotating machinery, it provides high-precision, high-stability vibration amplitude, velocity and acceleration data analysis, supporting equipment fault early warning and safety interlock protection.
1. Dual Independent Measurement Channels: Equipped with two fully isolated vibration input channels, supporting simultaneous monitoring of two vibration measuring points. Each channel can be independently configured for different measurement types to meet multi-point synchronous monitoring requirements of complex units.
2. Multi-type Vibration Signal Support: Compatible with eddy current displacement sensors, piezoelectric acceleration sensors and velocity sensors. It can monitor shaft vibration, bearing vibration and housing vibration, covering mainstream vibration monitoring scenarios of rotating equipment.
3. High-precision Sampling & Analysis: Adopts high-resolution digital sampling technology, featuring low signal noise and high linearity. It supports real-time vibration amplitude, peak-to-peak value, effective value and frequency spectrum analysis, capturing subtle equipment abnormal vibration signals.
4. Configurable Alarm & Trip Logic: Users can freely set warning alarm and dangerous trip thresholds, delay time and linkage logic. It supports automatic alarm output and safety trip interlock when equipment vibration exceeds the standard, ensuring unit operation safety.
5. Complete Self-diagnosis Mechanism: Built-in module hardware self-check, sensor fault detection, cable breakage and short-circuit diagnosis functions. It can actively report abnormal status to the upper system to achieve rapid fault location and maintenance.
6. Hot-swap & High Reliability Design: Supports online hot-swap replacement without system shutdown, effectively reducing equipment maintenance downtime. Industrial-grade EMC anti-interference design ensures stable operation in harsh electromagnetic interference environments.
7. Rich Signal Output & System Compatibility: Provides standard 4-20mA analog output and buffered raw signal output, which can be seamlessly connected with DCS, SCADA and upper monitoring software to realize centralized data monitoring and remote equipment management.

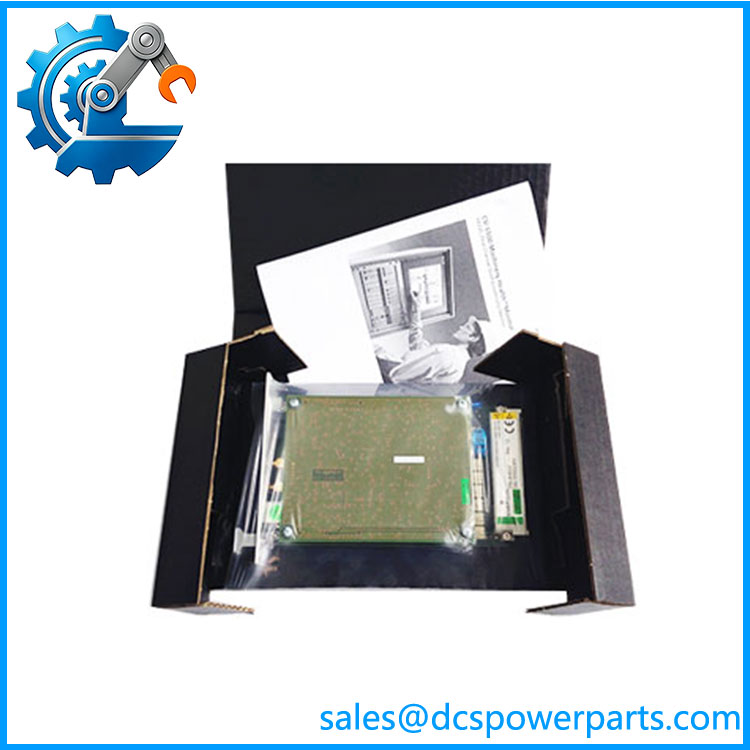

A6220
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
A6220
|
|
Brand
|
Emerson
|
|
Product Type
|
Dual-channel Vibration Monitor Module
|
|
Applicable System
|
AMS 6500 Machinery Health Monitoring System
|
|
Channel Quantity
|
2 Independent Vibration Input Channels
|
|
Compatible Sensors
|
Eddy current sensors, piezoelectric acceleration sensors, velocity sensors
|
|
Measurement Mode
|
Vibration displacement, velocity, acceleration monitoring
|
|
Signal Output
|
4-20mA analog output, buffered raw vibration signal output
|
|
Alarm Function
|
Dual-stage warning / danger alarm, configurable trip interlock
|
|
Power Supply
|
24VDC Industrial Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Installation Method
|
Standard 3U Rack Mounting, Hot-swap Support
|
|
Industry Compliance
|
API 670, Industrial EMC Certification
|
|
Core Function
|
Real-time vibration data acquisition, vibration trend analysis, fault alarm, safety trip protection, data transmission
|
Product Usage Method
1. Pre-installation Inspection: Check the appearance, terminals and circuit parts of the A6220 module to ensure no damage, aging or loose components. Confirm compatibility with the AMS 6500 system and on-site vibration sensors to match on-site monitoring requirements.
2. Static Protection Operation: Perform installation in a dry, dust-free and static-proof industrial environment. Wear anti-static gloves and wrist straps to prevent static electricity from damaging the internal precision sampling circuit and chip components of the module.
3. Module Installation & Fixation: Utilize the hot-swap function to insert the A6220 module into the designated slot of the system rack without shutting down the equipment. Tighten the fixing screws to ensure stable contact with the backplane bus and avoid signal fluctuation caused by vibration.
4. Sensor & System Wiring: Connect vibration sensor signal cables, 24VDC power cables and communication cables in strict accordance with the official wiring specifications. Distinguish dual-channel signal interfaces to prevent wrong wiring, short circuit and signal distortion.
5. System Parameter Configuration: After wiring inspection, connect the dedicated AMS configuration software. Set channel measurement type, vibration range, sampling parameters, alarm threshold and trip logic according to on-site equipment operating conditions, then download and save all parameters.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, sensor connection status and signal acquisition accuracy. Simulate vibration signals to verify the sensitivity of alarm response and the stability of analog output data.
7. Online Operation & Daily Maintenance: After passing debugging, put the module into long-term online monitoring. Regularly check module operating temperature, wiring tightness and real-time data stability, clean dust periodically, and back up configuration files to ensure continuous and reliable operation.
Product Application Fields
1. Thermal Power Industry: Widely used for vibration monitoring of steam turbines, generators, induced draft fans and water pump units in thermal power plants, realizing real-time vibration protection and fault early warning for core power generation equipment.
2. Gas Power Industry: Applied to vibration condition monitoring and safety protection of gas turbine units, providing accurate vibration data support for unit load adjustment, health assessment and predictive maintenance.
3. Petroleum & Chemical Industry: Suitable for online monitoring of large compressors, turbo machinery and transmission pump units in oil and gas fields and chemical plants, effectively avoiding equipment failure caused by abnormal vibration.
4. Metallurgy & Building Materials Industry: Used for vibration monitoring of large fans, kiln transmission equipment and auxiliary rotating machinery in steel, cement and glass factories, adapting to high-vibration and high-load harsh working conditions.
5. Industrial Intelligent Monitoring System: As an important core module of the AMS 6500 mechanical health monitoring system, it is widely used in industrial equipment predictive maintenance and intelligent management projects to improve equipment operation safety and service life.
