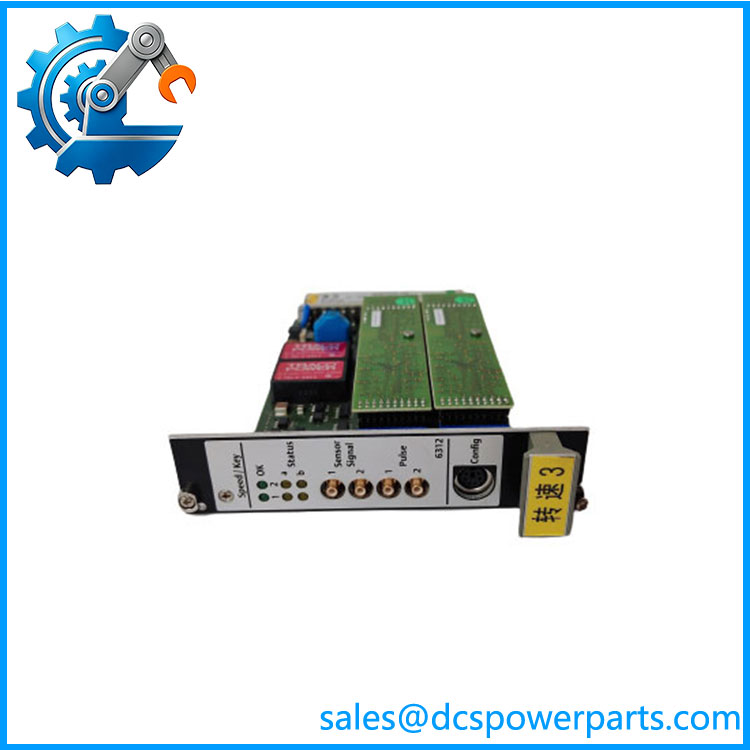

A6312 Emerson Machinery Protection Module
1. Product Features
- High-precision signal acquisition module for Emerson vibration monitoring system, designed for online machinery protection.
- Supports continuous monitoring of shaft vibration, casing vibration and displacement signals of rotating equipment.
- Equipped with built-in signal filtering and surge protection, effectively resisting industrial electromagnetic interference.
- Seamless compatible with Emerson AMS 6500 machinery health monitoring system rack backplane.
- Supports multi-channel signal input, with flexible alarm threshold configuration via system software.
- Provides reliable fault diagnosis, real-time status feedback and event logging functions.
- Compact single-slot plug-in design, easy installation, replacement and maintenance.
- Stable long-term continuous operation, meets industrial safety monitoring standards for critical rotating assets.
A6312
2. Product Parameters
| Item | Specification |
|---|---|
| Brand | Emerson |
| Model | A6312 |
| Product Type | Machinery Protection Module / Vibration Monitor Module |
| Compatible System | AMS 6500 Machinery Health Monitor System |
| Installation Method | Single-slot plug-in on AMS6500 rack backplane |
| Input Signal | Vibration / Displacement transducer signal |
| Function | Real-time vibration monitoring, alarm logic processing, machinery protection |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Certification | CE, UL |
| Origin | United States |
| Warranty | 12 months |
3. Product Operation Instructions
- Static Protection: Wear anti-static wristband before handling the module to avoid electrostatic damage to internal circuits.
- Installation: Ensure the rack power is cut off. Insert A6312 module into the designated slot of AMS6500 backplane, lock the front panel latch.
- Wiring: Connect vibration sensor cables to corresponding module terminals strictly following wiring diagram. Use shielded cables and implement single-point grounding.
- System Configuration: Power on the rack, connect configuration software, set measurement parameters, alarm thresholds and protection logic for each channel.
- Commissioning: Complete channel signal calibration, verify sensor signal collection, test alarm and protection interlock functions.
- Daily Operation: Monitor module running status via system software or local LED indicators; regularly check signal quality.
- Maintenance & Replacement: Cut off rack power before module replacement. After installing new module, download matching configuration parameters and re-commission.
- Troubleshooting: Locate signal interruption, communication failure or abnormal alarms by software diagnostic functions.
4. Application Fields
- Power Industry: Steam turbine, gas turbine, generator, boiler auxiliary fan vibration protection.
- Oil & Gas / Petrochemical: Centrifugal compressor, pump, turbo expander, agitator monitoring.
- Metallurgy Industry: Rolling mill main drive, cooling fan, circulating pump equipment protection.
- Pulp & Paper: Large drying fan, turbine drive system online monitoring.
- Water Treatment: Large water pump, blower vibration monitoring system.
- Cement Industry: Kiln fan, raw material mill, cement mill rotating machinery protection.
- General Industrial Plants: All kinds of critical rotating equipment requiring continuous machinery health protection.
