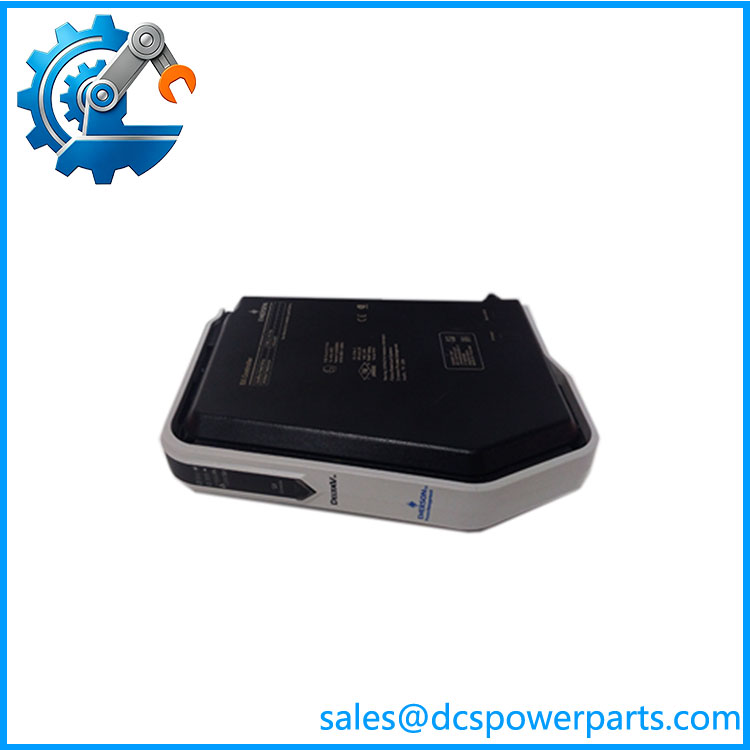

SE3007 Emerson DeltaV SX Controller Module

SE3007 Emerson DeltaV SX Controller Module

Model: SE3007

Brand: Emerson

Core Function:Emerson DeltaV SX Controller Module

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: SE3007

Description

SE3007

Emerson DeltaV SX Controller Module

Product Brief

SE3007 serves as the core computing controller for Emerson DeltaV distributed control system. Mounted on dedicated baseplates, it executes continuous process control strategies, coordinates data exchange with local I/O cards and upper monitoring nodes, and handles alarm management, historical data collection and field device communication. Supporting simplex and redundant pairing configurations, it delivers stable automatic control for continuous and batch production processes, and is widely adopted for new project construction and legacy DeltaV system hardware renewal.

Core Capabilities

🔹 Supports up to 1500 DST tags and 3200 SCADA tags, meeting medium-scale process control node demands

🔹 Native 1:1 hot standby redundancy architecture; seamless master-slave switchover without process interruption

🔹 Automatic I/O recognition and self-addressing function greatly shortens on-site configuration workload

🔹 Embedded comprehensive hardware self-diagnosis, real-time monitoring of operating status and communication links

🔹 Multiple built-in Ethernet communication interfaces, compatible with DeltaV control network and workstation connection

🔹 Optimized circuit layout and conformal coating, stable operation in control cabinets with temperature fluctuation and dust

🔹 Compatible with full series DeltaV I/O modules, flexible expansion of analog and digital signal acquisition capacity

🔹 Adopts plug-in structure, convenient for on-site replacement and maintenance to reduce plant downtime

SE3007

Technical Data Table

Item Specification
Model SE3007
Manufacturer Emerson
Series DeltaV SX Controller
Power Consumption Typical 5.0 W, Max 7.0 W
Supported Tags 1500 DST / 3200 SCADA tags
Redundancy Mode Simplex / 1:1 redundant hot standby
Communication Ports Multiple Ethernet ports for control network
Installation Method Plug-in on DeltaV controller baseplate
Operating Temperature -20 ℃ ~ +70 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Relative Humidity 5% – 95% RH, non-condensing
Cooling Type Natural convection, fanless design

Installation & Commissioning Guidelines

Cut off baseplate power before any disassembly and installation. Wear anti-static protection to prevent damage to internal processing chips. Insert the module into the designated slot and lock firmly to guarantee reliable backplane contact.
Separate control network cables, power wires and field signal cables during wiring. Use shielded network cables and implement standardized grounding to restrain electromagnetic interference. After wiring inspection, power on in stages. Launch DeltaV engineering software to download control logic, configure network parameters and I/O mapping.
Carry out offline simulation and online function verification. For redundant configurations, test master-slave switching performance and confirm no loss of control output. Verify data transmission to operator stations and upper-level systems.
After acceptance, add regular inspection tasks. Periodically check module operating temperature, surface dust accumulation and system fault logs to maintain long-term stable control performance.

Typical Application Areas

Oil & Gas Refining Facilities

Flow, temperature and pressure closed-loop control for crude processing and product separation units.

Chemical & Petrochemical Plants

Continuous process regulation for reactors, distillation towers and heat exchange equipment.

Thermal Power Generation Auxiliary Systems

Automatic control of boiler water supply, flue gas treatment and auxiliary workshop process parameters.

Pharmaceutical & Food Processing Production Lines

Batch and continuous production control with strict process parameter requirements.

DeltaV System Upgrade & Spare Part Replacement Projects

Direct hardware replacement for existing DeltaV control nodes, compatible with original cabinet layout and control schemes.
