Emerson VE4001S2T2B4 | New Surplus DeltaV M-Series I/O

Description

Product Overview

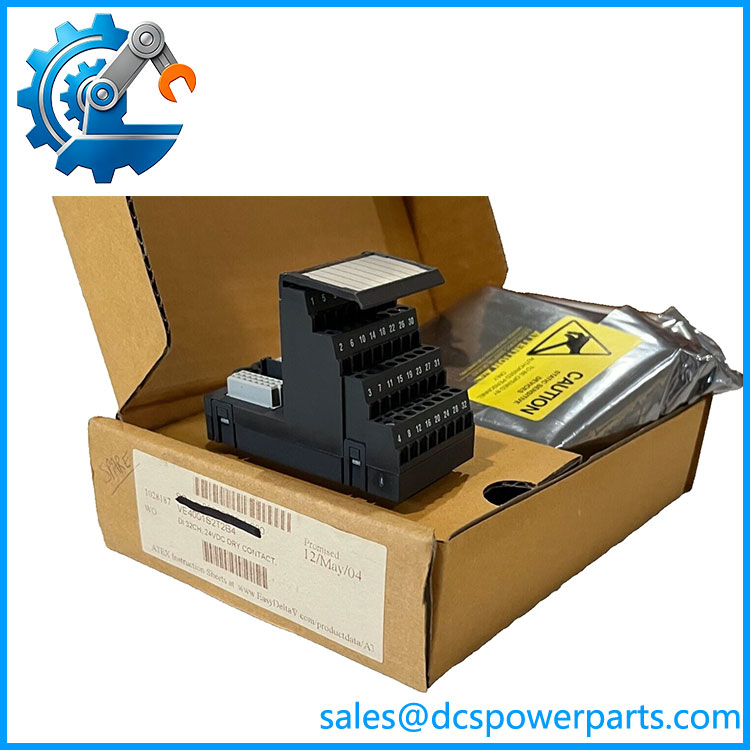

The Emerson VE4001S2T2B4 is a 32-channel Discrete Input Card designed for the DeltaV M-Series Traditional I/O platform. The module collects digital field signals from switches, auxiliary contacts, alarms, and equipment status devices, then transfers those states into the DeltaV distributed control environment for process monitoring and control execution. The Emerson VE4001S2T2B4 is commonly installed in process plants where a high density of discrete feedback signals must be integrated into existing DeltaV control cabinets.

Configured for 24 VDC dry contact applications, the VE4001S2T2B4 provides 32 input channels within a single I/O card, reducing cabinet space requirements compared with lower-density input configurations. The card works with the associated DeltaV termination block to connect field wiring and provides a structured interface between plant devices and controller logic. Typical applications include motor running feedback, valve position indication, permissive monitoring, alarm contacts, and equipment interlock signals.

The Emerson VE4001S2T2B4 remains widely used in lifecycle maintenance projects involving existing DeltaV M-Series systems. Replacement planning should include verification of the controller type, I/O carrier arrangement, termination block model, channel assignment database, and field wiring details. To be completely transparent, a discrete input card replacement is usually straightforward from a hardware perspective, but incorrect channel mapping or contact wiring changes can create misleading process indications after startup.

Product Introduction (Non-Templated)

A single failed input module can remove dozens of equipment status signals from operator displays and automated sequences. The Emerson VE4001S2T2B4 restores 32-channel discrete signal acquisition for compatible DeltaV M-Series installations.

Designed for 24 VDC dry contact monitoring, this card supports DCS system maintenance, legacy replacement work, and expansion projects involving motor control centers, package units, and plant interlocks.

Key Technical Specifications

Related Products

• Emerson VE4001S2T2B1 — DeltaV 8-channel 24 VDC dry contact discrete input card with standard termination block. Used for smaller signal counts where 32 channels are unnecessary.
• Emerson VE4001S2T2B3 — DeltaV 16-pin mass termination block option for discrete input applications. Used when cabinet wiring requires mass termination connections.
• Emerson VE4002S1T2B5 — DeltaV 32-channel 24 VDC high-side discrete output card. Provides output switching rather than signal acquisition.
• Emerson VE4001S5T2B4 — DeltaV Sequence of Events interface with 32-screw termination block. Intended for event timestamp applications requiring higher-resolution input recording.
• Emerson VE4003S2B6 — DeltaV analog input module family used for continuous process measurements such as 4–20 mA signals rather than discrete contacts.
• Emerson VE3003 — DeltaV M3 controller platform used as the control processing unit for compatible I/O modules.
• Emerson VE3004 — DeltaV M5 Plus controller option for larger application requirements within the M-Series architecture.
• Emerson KJ4002X1-BF2 — DeltaV carrier extension component used in certain I/O cabinet arrangements.

VE4001S2T2B4

Frequently Asked Questions (FAQ)

1. Is the Emerson compatible with my existing DeltaV system?

The card is designed for DeltaV M-Series Traditional I/O systems, but compatibility depends on the installed hardware configuration.

Before replacement, verify:

• DeltaV controller model
• M-Series I/O carrier type
• Termination block arrangement
• Channel database configuration
• Field voltage and contact wiring

The card model must match the existing I/O architecture.

2. Can I hot-swap this?

DeltaV systems support online maintenance options in specific configurations, but the procedure depends on the installed hardware and operating conditions.

Typical replacement steps:

1. Confirm the correct I/O slot
2. Verify module identification
3. Follow plant maintenance procedures
4. Install replacement card
5. Check input diagnostics and process values

Always confirm whether the specific DeltaV architecture allows powered replacement.

3. Does the support firmware v3.1?

The card itself does not run application logic like a controller.

Firmware compatibility depends on:

• DeltaV system version
• Controller firmware
• I/O configuration database
• Hardware revision

The engineering database should be checked before commissioning.

4. Will I lose my control logic when replacing the ?

No. The discrete input card only provides field signal acquisition.

After replacement, engineers should verify:

• Input channel mapping
• Device descriptions
• Alarm assignments
• Logic references
• Communication status

The main control strategy remains stored in the DeltaV controller database.

5. How can I verify a New Surplus Emerson is authentic?

Recommended inspection steps:

• Confirm Emerson DeltaV identification label
• Verify part number
• Inspect edge connectors and terminals
• Check storage condition
• Review available test documentation

New Surplus condition should still be verified before installation in an operating control system.

6. Can the support a DeltaV DCS upgrade project?

Yes, when the project maintains compatible M-Series Traditional I/O hardware.

Common applications include:

• Failed I/O card replacement
• Spare inventory preparation
• Cabinet restoration
• Extension of existing DeltaV installations

For larger migrations, engineers should evaluate the full I/O architecture and future maintenance requirements.

7. What should engineers check before commissioning this DI card?

Key checks include:

1. Confirm correct I/O slot
2. Verify termination block compatibility
3. Check 24 VDC field signals
4. Validate channel assignments
5. Test representative field contacts
6. Confirm DeltaV diagnostics

These checks help prevent incorrect equipment status indications after startup.
