Emerson KJ4001X1-CK1 | 40-Pin Mass Termination Block | DeltaV M-Series I/O
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / Fisher-Rosemount |
| Model | KJ4001X1-CK1 |
| Product family | DeltaV |
| Product type | 40-Pin Mass Termination Block |
| Assembly number | 12P0732X162 |
| Connection | 40-pin mass termination |
| Application | DeltaV I/O wiring interface |
| Input rating | 30 VDC at 1 A per channel |
| Ambient temperature | 0 to 70°C |
| Relative humidity | 5–95%, non-condensing |
| Shock | 10 g half-sine, 11 ms |
| Vibration | 1 mm peak-to-peak, 2–13.2 Hz; 0.7 g, 13.2–150 Hz |
| Contaminants | ISA-S71.04-1985 Class G3 |
| Enclosure rating | IP20 |
| Hazardous-area marking | II 3 G / EEx nA IIC T4 |
| Maintenance | No user-serviceable parts |
| Calibration | Not required |
The Emerson instruction sheet specifically identifies KJ4001X1-CK1 as a 40-Pin Mass Termination Block and specifies the environmental and hazardous-area characteristics above.
Product Introduction
The Emerson KJ4001X1-CK1 is a 40-pin mass termination block used within DeltaV I/O wiring architectures. Its purpose is to provide a structured high-density termination interface rather than perform signal processing itself. In practical terms, the block belongs to the wiring and termination layer of the control system, so it should not be treated as a DeltaV controller, I/O card, or standalone signal-conditioning module.
For maintenance work, the exact terminal-block suffix matters because DeltaV termination hardware is keyed for compatibility with the intended I/O card. Emerson documentation specifically states that the rotary keying system must be set for the I/O card with which the terminal block is used.

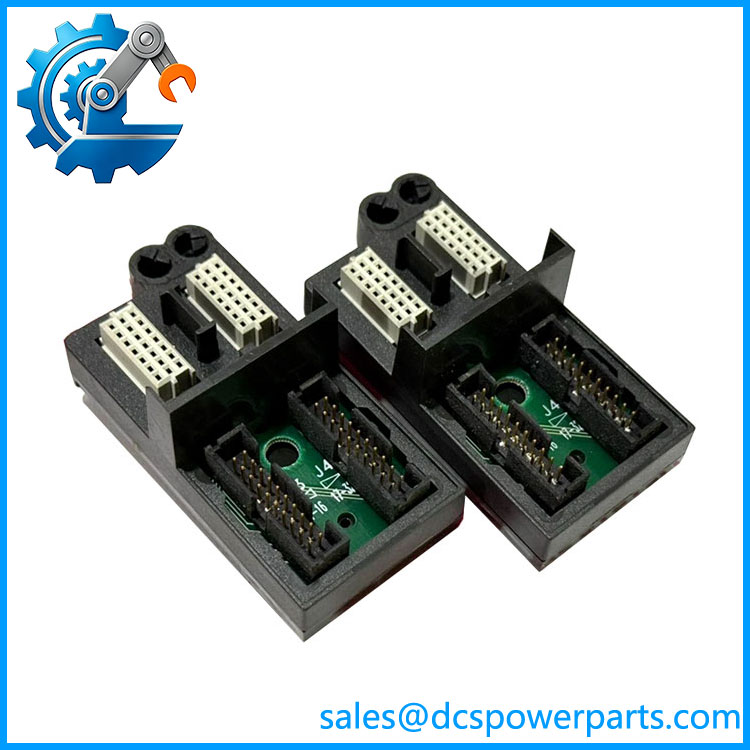

KJ4001X1-CK1
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main risk with KJ4001X1-CK1 is confusing the mass termination block with the associated DeltaV I/O module. The block provides the physical termination/interface function; the actual signal-processing characteristics depend on the compatible I/O card and connected field wiring.
Typical Applications
- DeltaV M-Series I/O cabinets — high-density field wiring and termination.
- Mass termination assemblies — connecting compatible 40-pin I/O cabling to field termination hardware.
- Legacy DeltaV cabinet maintenance — replacement of damaged or obsolete termination hardware.
- Hazardous-area control installations — where the documented Zone 2/ATEX characteristics are applicable.
Technical Pitfalls to Avoid
- Do not order it as an I/O module. KJ4001X1-CK1 is a termination block; it does not replace the associated DeltaV I/O card.
- Verify the keying configuration. Emerson specifies a rotary keying system to prevent incompatible I/O cards and terminal blocks from being installed together.
- Check the complete assembly number. The documented assembly is associated with 12P0732X162; suffix and revision information should be compared with the installed hardware before procurement.
- Do not generalize hazardous-area approval. The ATEX document identifies specific installation conditions, including II 3 G / EEx nA IIC T4. The complete DeltaV cabinet and installation must satisfy the applicable hazardous-location requirements.
Related Products
- KJ4001X1-CB1 — DeltaV M-Series termination hardware; different terminal configuration.
- KJ4001X1-CC1 — related 40-pin termination configuration.
- KJ4001X1-CD1 — alternate DeltaV termination block configuration.
- KJ4001X1-CE1 — related M-Series termination hardware.
- KJ4001X1-CG1 — alternate termination configuration.
- KJ4001X1-CH1 — related DeltaV terminal block.
- KJ4001X1-CJ1 — related mass termination hardware.
- KJ4001X1-HB1 — different DeltaV termination configuration.
- KJ4001X1-NA1 — alternate DeltaV terminal interface.
These variants are not automatically interchangeable. The correct selection depends on the I/O card, signal type, termination arrangement, keying and cabinet wiring design.
Procurement Note
When sourcing , specify the complete part number and, where available, the assembly/revision marking. The critical identification is:
= Emerson DeltaV 40-Pin Mass Termination Block.
Do not substitute another KJ4001X1 suffix simply because it also uses a 40-pin interface. Confirm the associated DeltaV I/O card, rotary keying, wiring diagram and field termination arrangement before installation.
