Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ2221X1-BA1 |
| Product Type | SISNet Repeater |
| Product Family | DeltaV SIS |
| Network Function | SISNet communication repeating |
| Local Bus Power | 24 VDC |
| Maximum Current | 300 mA |
| Ambient Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Shock | 10 g, ½-sine, 11 ms |
| Vibration | 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz |
| Maintenance | No user-serviceable parts; calibration not required |
The electrical and environmental specifications above are taken primarily from Emerson’s ATEX instruction sheet for the KJ2221X1-BA1.
Product Introduction
The Emerson KJ2221X1-BA1 is a dedicated SISNet Repeater used within Emerson DeltaV SIS architectures. Its job is network-side rather than logic-side: it supports communication on the SISNet safety network and is not the SIS logic solver itself. The IEC 61508 assessment specifically identifies KJ2221X1-BA1 as a DeltaV SISNet Repeater forming part of the assessed SIS architecture.
For maintenance teams, the distinction matters. Replacing a repeater does not replace the safety application, logic solver, or field I/O; it addresses the communication layer of the SIS installation. The module operates from a 24 VDC local bus with a maximum specified current of 300 mA and is rated for -40°C to +70°C operation.

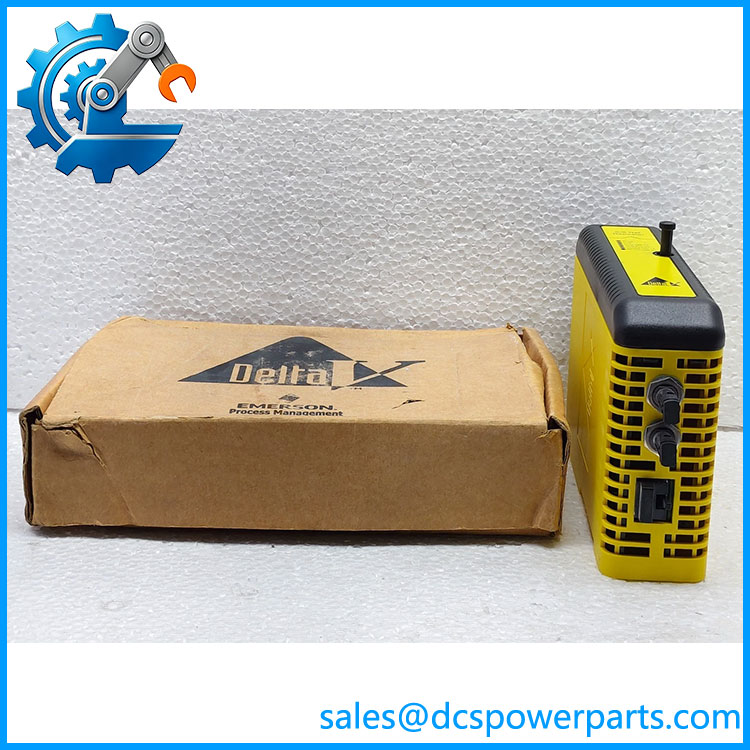

KJ2221X1‑BA1
Engineering Pain Point
A failed SISNet repeater can look like a much larger DeltaV SIS problem because communication faults may propagate into multiple downstream diagnostics. Before replacing the KJ2221X1-BA1, check the local-bus supply, wiring, associated SISNet cable path, connector condition, and diagnostics at the connected SIS equipment. Do not assume that replacing the repeater will correct a cable, carrier, power, or configuration problem.
Typical Applications
- DeltaV SIS safety-network communication
- SISNet network segments requiring signal repetition
- Maintenance replacement in existing DeltaV SIS cabinets
- SIS architecture where the repeater is included as part of the documented safety communication path
Technical Pitfalls to Avoid
- Do not substitute it for the SIS logic solver. The KJ2221X1-BA1 is a repeater, while the KJ2201X1-BA1 is the SLS 1508 logic solver. Their functions are fundamentally different.
- Verify the exact system architecture before replacement. SISNet repeaters, distance extenders, carriers, and cable assemblies are separate components. A visually similar DeltaV module is not automatically interchangeable.
- Respect hazardous-area removal procedures. Emerson specifies that the unit must not be removed or inserted with system power energized unless the area is known to be non-hazardous.
- Do not open the module for repair. Emerson states that the unit contains no user-serviceable parts and that calibration is not required.
- Check the 24 VDC local-bus loading. The specified maximum is 300 mA; power-budget assumptions should be checked against the installed DeltaV SIS configuration rather than inferred from another repeater or network component.
Related Products
- KJ2201X1-BA1 — DeltaV SIS SLS 1508 logic solver; performs the safety-logic function rather than SISNet signal repetition.
- KJ2222X1-BA1 — SISNet Distance Extender; a different network accessory with a specified 24 VDC, 250 mA maximum input-power requirement.
- KJ2201X1-HA1 — SLS terminal block associated with the KJ2201X1-BA1 logic solver.
- KJ2201X1-JA1 — Redundant SLS terminal block associated with the KJ2201X1-BA1 safety logic solver.
- KJ2231X1-BA1 — DeltaV SIS auxiliary ETA relay module, documented as an accessory within the assessed SLS architecture.
- KJ2231X1-BB1 — DeltaV SIS auxiliary DTA relay module.
- KJ2231X1-BC1 — DeltaV SIS relay diode module.
- KJ2231X1-EA1 — DeltaV SIS relay module.
Procurement note: For a replacement, match the complete part number and installed DeltaV SIS architecture. Do not substitute a KJ2222X1-BA1 simply because both devices are associated with SISNet; Emerson identifies them as different products with different functions and power specifications.
