Emerson KJ2201X1-BA1
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KJ2201X1-BA1 |
| Manufacturer | Emerson |
| Product Type | SIS Logic Solver |
| System | DeltaV SIS |
| Logic Solver | SLS 1508 |
| I/O Channels | 16 configurable channels |
| Supported Modes | DI, DO, HART analog input, HART two-state output |
| Local Bus Power | 24 VDC, 1 A |
| Field Power | 4 A maximum |
| Operating Temperature | -40 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Hazardous Area | Class I Div. 2 / Zone 2 configurations documented |
| Safety Capability | SIL 3 |
| Terminal Block | KJ2201X1-HA1 simplex / KJ2201X1-JA1 redundant |
| Carrier | DeltaV SIS 8-wide carrier |
The SLS 1508 provides the logic-solving function and an interface for 16 configurable I/O channels. The channels can be configured for discrete or HART-based safety functions according to the DeltaV SIS application.
Product Introduction

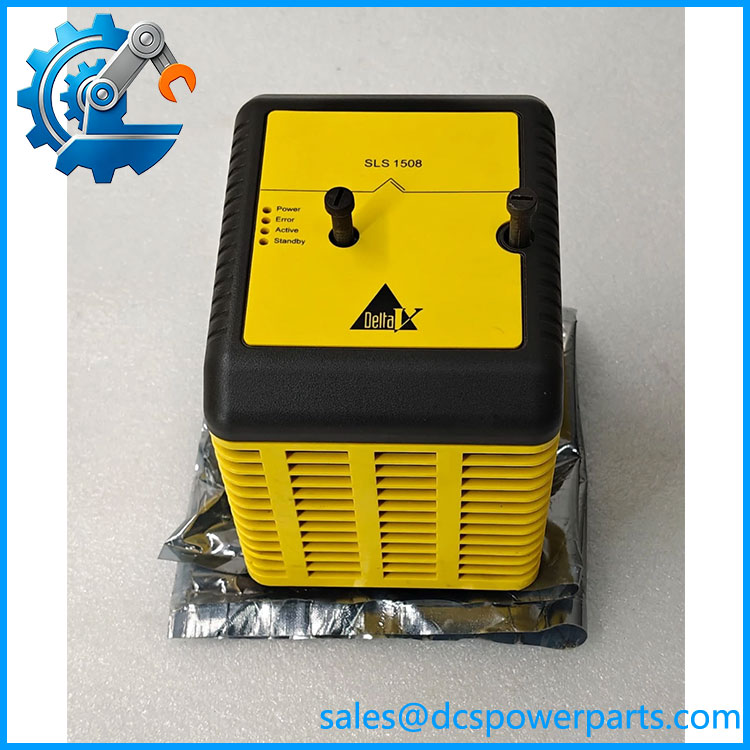

The Emerson KJ2201X1-BA1 is the SLS 1508 logic solver used in DeltaV SIS safety-instrumented applications. It combines safety-logic execution with 16 configurable I/O channels, allowing the same hardware architecture to support discrete inputs, discrete outputs, HART analog inputs, and HART two-state output functions.
For maintenance engineers, this is a safety-system component, not a conventional DeltaV controller. The logic solver, SLS terminal block, carrier, SISNet architecture, application configuration, and redundancy arrangement all form part of the safety function. Emerson’s documentation also specifies dedicated installation/removal procedures for hazardous areas, including removal of field power before extracting or connecting the device.
KJ2201X1‑BA1
Engineering Pain Point
The main replacement mistake is treating KJ2201X1-BA1 as an ordinary 24 VDC I/O module. A replacement must match the DeltaV SIS hardware architecture and configured safety application. The terminal block is also important: KJ2201X1-HA1 is identified as the simplex SLS terminal block, while KJ2201X1-JA1 is the redundant SLS terminal block.
Typical Applications
- Emergency shutdown systems: Execution of configured safety logic for process trips and shutdown functions.
- Process safety systems: Safety input/output processing within DeltaV SIS architectures.
- HART-enabled safety applications: Processing of supported HART analog or two-state safety channels.
- Hazardous-area installations: Emerson documents the SLS 1508 for specified Zone 2 / Class I Division 2 applications.
Technical Pitfalls to Avoid
- Do not confuse SIS with standard DeltaV I/O. KJ2201X1-BA1 belongs to the DeltaV SIS safety architecture. A standard DeltaV controller or I/O card is not a functional substitute.
- Check all 16 channel assignments. The channel count alone does not define the configuration. Each channel can have a specific DI, DO, HART AI, or HART two-state function defined by the SIS application.
- Match the terminal block and redundancy arrangement. The SLS uses dedicated terminal hardware. KJ2201X1-HA1 and KJ2201X1-JA1 serve different simplex/redundant arrangements.
- Do not ignore field-power loading. Emerson specifies up to 4 A maximum field power. Actual demand depends on the channel type and connected field devices.
- Follow hazardous-area removal procedures. Emerson specifically states that field power must be removed before connecting or disconnecting the device in applicable hazardous-area installations.
- Verify the complete ordering code. KJ2201X1-BA1 appears with different extended identifiers in field documentation. The complete nameplate, hardware revision, terminal-block type, and installed SIS configuration should be checked before approving a replacement.
Related Products
- Emerson KJ2201X1-HA1 — Simplex SLS terminal block for the SLS 1508 logic solver.
- Emerson KJ2201X1-JA1 — Redundant SLS terminal block for redundant safety-system configurations.
- Emerson KJ2221X1-BA1 — SISNet repeater used within the DeltaV SIS network architecture.
- Emerson KJ2222X1-BA1 — SISNet distance extender for distributed SIS network arrangements.
- Emerson KJ2231X1-BA1 — DeltaV SIS auxiliary ETA relay module used with supported safety-system configurations.
- Emerson KJ2231X1-BB1 — DeltaV SIS auxiliary DTA relay module.
- Emerson KJ2231X1-EA1 — DeltaV SIS relay module associated with the SLS safety architecture.
Procurement check: For , verify the complete nameplate/order code, hardware revision, SLS terminal block, simplex or redundant architecture, 16-channel configuration, DeltaV SIS software release, and safety application database. The 24 VDC rating confirms the power class; it does not by itself establish functional compatibility.
