Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | EPRO / Emerson |
| Model | MMS3120/022-000 |
| Order Number | 9100-03047-01 |
| Product Type | Dual Channel Bearing Vibration Monitor |
| System Series | MMS 3000 Machinery Monitoring System |
| Measurement Input | EPRO PR9266 / PR9268 series vibration sensors |
| Channels | 2 vibration measurement channels |
| Measurement Type | Absolute bearing vibration |
| Signal Processing | Vibration velocity and acceleration analysis |
| Configuration Interface | RS-232 configuration interface |
| Configuration Tool | MMS6910 configuration kit |
| Installation | Industrial machinery monitoring cabinet |
| Application | Turbine and rotating equipment protection |
| Typical Industries | Power generation, oil & gas, chemical, industrial plants |
Product Introduction

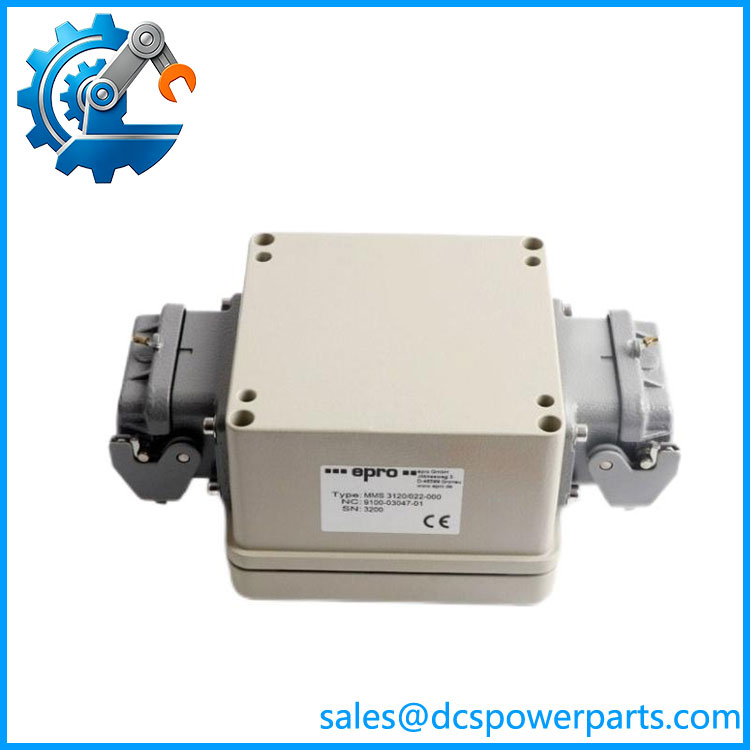

EPRO MMS3120/022-000 9100-03047-01 Overview
The EPRO MMS3120/022-000 9100-03047-01 is a dual-channel bearing vibration monitoring module designed for continuous condition monitoring of rotating machinery. It belongs to the EPRO MMS 3000 machinery protection system family and is used to acquire vibration signals from critical mechanical equipment where early detection of abnormal vibration conditions is required.
The EPRO MMS3120/022-000 works with compatible electrodynamic vibration sensors such as the EPRO PR9266 and PR9268 series. The module processes vibration signals generated by these sensors and provides measurement information related to bearing vibration levels, allowing operators and maintenance engineers to evaluate machine operating conditions.
The EPRO MMS3120/022-000 9100-03047-01 is typically installed in machinery monitoring systems for large rotating assets, including steam turbines, compressors, pumps, fans, gearboxes, and generator equipment. These machines require continuous vibration supervision because mechanical imbalance, bearing wear, misalignment, and coupling problems can develop into serious equipment failures if not detected early.
The EPRO MMS3120 9100-03047-01 provides configurable monitoring functions through an RS-232 interface and dedicated configuration software. Engineers can adjust measurement parameters and review diagnostic information using the MMS6910 configuration package.
The EPRO /022-000 is a system component rather than a standalone sensor. Proper operation depends on correct sensor selection, cable condition, mechanical installation, configuration parameters, and integration with the overall machinery protection system.
When replacing an EPRO /022-000 9100-03047-01, engineers should verify the installed sensor type, channel configuration, monitoring limits, wiring arrangement, and MMS system architecture. A replacement module with a different configuration may require parameter restoration before returning the machine to service.
MMS3120
Application Scenarios & Field Considerations
Engineering Pain Point
Typical vibration monitoring issues include:
- High vibration alarms
- Unstable vibration readings
- Channel signal loss
- Incorrect bearing vibration values
- Machinery protection trips
The module may be involved, but possible causes also include:
- Damaged vibration sensor
- Incorrect sensor mounting
- Cable insulation problems
- Poor grounding
- Incorrect alarm settings
Recommended troubleshooting steps:
- Check sensor output signal
- Verify cable continuity
- Review diagnostics
- Confirm configuration parameters
- Compare vibration values with portable measurement equipment
- Inspect mechanical mounting conditions
The EPRO /022-000 provides vibration monitoring capability, but reliable machinery protection depends on the complete sensor, wiring, and monitoring chain.
Typical Applications
Steam Turbine Monitoring
Used for:
- Bearing vibration monitoring
- Turbine condition assessment
- Machinery protection systems
Gas Turbine Systems
Applied for:
- Rotating component monitoring
- Vibration alarm generation
- Preventive maintenance support
Compressors and Pumps
Used for:
- Bearing condition monitoring
- Mechanical fault detection
- Equipment reliability improvement
Industrial Rotating Equipment
Applied for:
- Fans
- Gearboxes
- Motors
- Process machinery
Technical Pitfalls to Avoid
1. Verify Sensor Compatibility
Confirm:
- PR9266 / PR9268 sensor model
- Sensor sensitivity
- Cable type
- Installation location
Incorrect sensor matching can produce inaccurate vibration readings.
2. Check Configuration Parameters
Verify:
- Alarm thresholds
- Measurement range
- Channel settings
- Engineering units
3. Inspect Signal Wiring
Check:
- Shield grounding
- Cable damage
- Connector condition
- Signal interference
4. Preserve Existing Settings
Before replacement:
- Record module parameters
- Save configuration data
- Document channel assignments
- Verify alarm limits
