Description
Product Overview

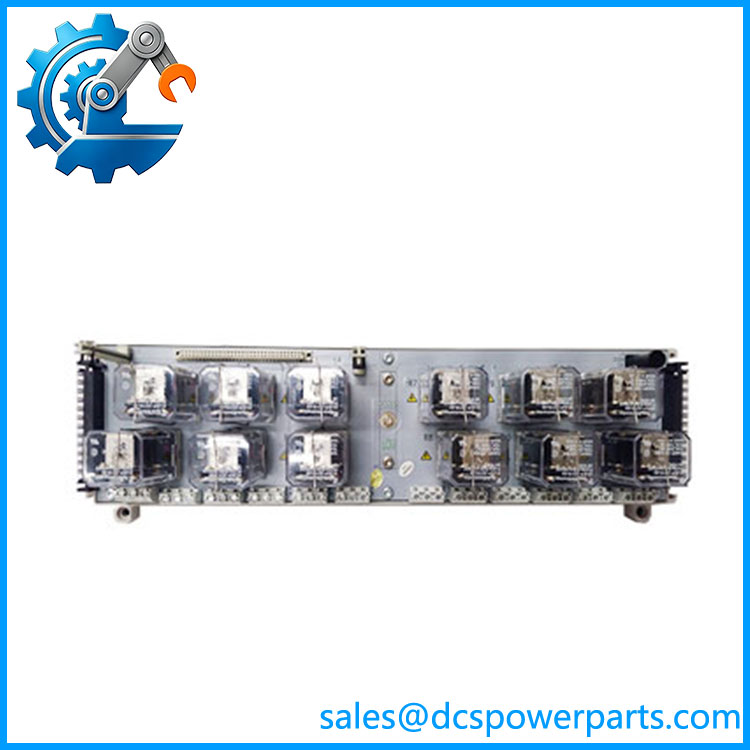

The Emerson 1C31222G01 is a Relay Output Base Assembly designed for Emerson Ovation Distributed Control System installations requiring mechanical relay switching capability. The assembly provides the physical relay interface between Ovation output modules and external field loads, allowing low-level controller commands to operate higher-power devices such as motor starters, solenoid valves, annunciators, and auxiliary control circuits. The Emerson 1C31222G01 belongs to the Ovation relay output subsystem and is configured with KUEP-style relay technology for applications requiring higher switching capability than standard solid-state outputs.
Configured at the project level, the 1C31222G01 supports either 12 Form C or 12 Form X relay arrangements. Form C configurations provide changeover contacts, while Form X configurations provide mechanically linked contact operation for specific switching requirements. Compared with transistor-based digital output modules, relay output bases provide physical contact isolation and can handle a wider range of AC and DC loads. This makes the module suitable for equipment control circuits where electrical separation and contact switching characteristics are important.
The Emerson 1C31222G01 is commonly maintained as a spare component in Ovation power generation and industrial control systems. Replacement requires verification of the relay configuration, associated electronic module, termination wiring, and field load requirements. To be completely transparent, relay assemblies are application-specific; a Form C replacement may not be suitable for a system originally configured with Form X contacts, even when the base assembly part number appears identical.
Product Introduction (Non-Templated)
A failed relay interface can leave a controller operating normally while connected equipment refuses to respond. The Emerson 1C31222G01 restores the switching path between Ovation logic and external electrical loads.
Built around KUEP relay technology, this 12-channel relay base supports high AC/DC switching applications and is commonly used for actuator control, motor circuits, and legacy Ovation DCS maintenance projects.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1C31222G01 |
| Manufacturer | Emerson |
| System Platform | Ovation Distributed Control System |
| Product Type | Relay Output Base Assembly |
| Relay Type | KUEP Style Relay |
| Relay Channels | 12 Channels |
| Relay Configuration | Form C or Form X |
| Compatible Electronic Module | 1C31219G01 Relay Output Module |
| Output Application | High AC/DC voltage switching |
| Contact Arrangement | Project configurable |
| Installation | Ovation I/O Relay Subsystem |
| Field Connection | Terminal Block Interface |
| Relay Function | Isolation and load switching |
| Typical Loads | Motors, actuators, contactors, solenoids |
| Fuse Type | 2.0A, 250V fast-acting fuse (relay base application) |
| Operating Environment | Industrial control cabinet environment |
| Condition | New Surplus, Factory Sealed |
Related Products
- Emerson 1C31219G01 — Relay Output Module Electronic Assembly used with the 1C31222G01 base unit. The electronic module receives Ovation commands while the base assembly provides relay switching hardware.
- Emerson 1C31223G01 — Relay Output Base Assembly using 16 G2R-style relays. Suitable for applications requiring more relay points but generally lower switching capability compared with KUEP configurations.
- Emerson 1C31122G01 — Digital Output Electronic Module for switching 5–60 VDC loads through transistor outputs. Used where relay isolation is not required.
- Emerson 1C31125G03 — Personality module associated with relay output configurations. Provides field interface connection between electronic modules and relay assemblies.
- Emerson 1C31232G01 — Compact Digital Input Module for collecting discrete field signals. Used on the input side of control systems rather than output switching applications.
- Emerson 1C31233G04 — Sequence of Events input module for time-stamped contact monitoring applications. Commonly paired with relay output systems in power plant control environments.
- Emerson 5X00500G01 — Ovation 32-channel solid-state digital output module. Provides high-density transistor outputs as an alternative where mechanical relay contacts are unnecessary.
- Emerson 5X00499G01 — Ovation digital input module used for discrete status acquisition from field equipment.
1C31222G01
Frequently Asked Questions (FAQ)
1. Is the Emerson 1C31222G01 compatible with my existing Ovation DCS system?
The module is designed for Emerson Ovation relay output architectures, but compatibility depends on the complete relay subsystem.
Verify:
- Ovation I/O rack configuration
- Matching electronic module
- Relay type (Form C or Form X)
- Terminal wiring arrangement
- Field load requirements
The base assembly should be matched with the correct relay module and project configuration.
2. Can I hot-swap this?
Replacement depends on the Ovation cabinet design and the connected load conditions.
Typical procedure:
- Confirm the relay output circuit state
- Verify field equipment safe condition
- Remove power according to site procedures
- Replace the relay base assembly
- Test relay operation before returning equipment to service
Mechanical relay circuits require careful handling because the field load may remain energized independently.
3. Does the 1C31222G01 support firmware v3.1?
The relay base assembly does not contain application firmware.
Compatibility depends on:
- Ovation controller software
- Associated relay output electronic module
- I/O database configuration
- Relay subsystem revision
The engineering configuration should be reviewed before replacement.
4. Will I lose my control logic when replacing the 1C31222G01?
No. The relay base assembly does not store Ovation control logic.
After replacement, engineers should verify:
- Relay channel mapping
- Output commands
- Field device response
- Alarm and interlock operation
The application logic remains within the Ovation controller database.
5. How can I verify a New Surplus Emerson 1C31222G01 is authentic?
Recommended checks:
- Confirm Emerson/Ovation identification labels
- Verify part number 1C31222G01
- Inspect relay sockets and terminal points
- Check mechanical condition
- Review available inspection records
Unused inventory condition should still be verified before installation in a running control system.
6. Can the 1C31222G01 support a legacy Ovation DCS upgrade project?
Yes, when the project retains compatible Ovation relay output architecture.
Typical applications include:
- Replacing failed relay bases
- Restoring motor control outputs
- Maintaining turbine and boiler auxiliary systems
- Supporting long-service Ovation installations
The relay configuration must match the original application.
7. What should engineers check before commissioning this relay base?
Key checks include:
- Confirm relay type configuration
- Verify electronic module compatibility
- Check field wiring
- Test contact switching
- Confirm load ratings
- Validate controller output commands
