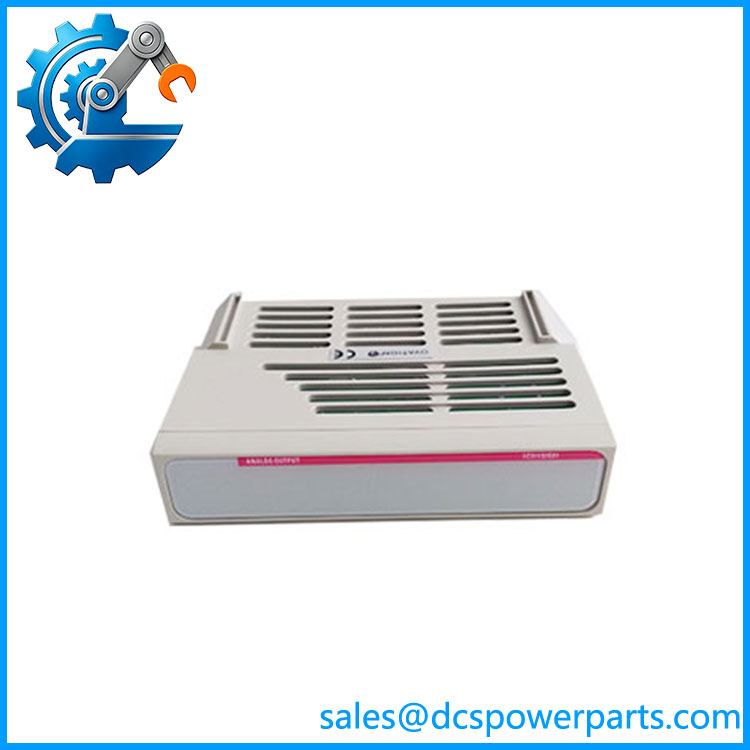

Emerson 1C31132G01 | 4 Isolated Analog Output Channels

Product Overview

The Emerson 1C31132G01 is an Ovation DCS analog output module used to send controller-generated analog commands to field devices. The official Ovation I/O reference documentation identifies 1C31132G01 as the electronics module associated with the four-channel analog output function. It supports the output circuitry used with several field signal configurations, including 0–5 VDC, 0–10 VDC, 0–20 mA, and 4–20 mA, depending on the associated personality module. The electronics architecture uses four isolated digital-to-analog conversion channels, with the serial interface isolated through optocouplers.

For Emerson 1C31132G01, the distinction between the electronics module and the personality module is important during procurement. The Ovation documentation lists 1C31129G01/G02/G03/G04 as personality modules corresponding to different output ranges and diagnostic configurations, while 1C31132G01 is the associated four-channel analog-output electronics module. Each channel provides separate voltage/current output connections, signal return, and shield/ground terminals through the field terminal arrangement. The documentation also states that the four channels can be updated through the serial DAC interface at approximately 1.5 ms, giving the module a defined update mechanism rather than relying on a generic analog-output architecture.

The Emerson 1C31132G01 therefore belongs in the field-output layer of an Ovation DCS rather than the controller layer. It is used where continuous control signals must be generated for devices such as valve positioners, drives, dampers, or other analog-command equipment. For a replacement, matching the complete I/O assembly—including the electronics module, personality module, terminal arrangement, and controller configuration—is more important than matching the part number alone.

Product Introduction

When an analog control loop suddenly stops responding, the controller is not necessarily the first component to investigate. Emerson 1C31132G01 provides four isolated analog output channels within the Ovation I/O architecture, with the associated personality module determining the required voltage/current range.

For an Ovation DCS analog output replacement, verify both the 1C31132G01 electronics module and its personality module. The four channels share the electronics platform, but output range and diagnostic behavior depend on the installed personality configuration.

Key Technical Specifications

The Ovation reference manual specifically documents four isolated output channels and identifies the personality modules for 0–5 V, 0–10 V, 0–20 mA, and 4–20 mA operation.

1C31132G01

Related Products

• 1C31129G01 — Analog-output personality module for 0–5 VDC operation. It configures the 1C31132G01 electronics assembly for low-voltage analog output service.
• 1C31129G02 — Personality module for 0–10 VDC analog output. Appropriate where voltage-command devices require the 0–10 V range.
• 1C31129G03 — Personality module supporting 0–20 mA or 4–20 mA with diagnostics. This is relevant for control loops where output diagnostics are required.
• 1C31129G04 — Personality module supporting 0–20 mA or 4–20 mA without diagnostics. Functionally similar to G03 in signal range but different in diagnostic capability.
• 1C31142G01 — Ovation contact-input module. It handles discrete field inputs rather than continuous analog outputs.
• 1C31147G01 — Ovation pulse-accumulator module for pulse/counting applications. It is complementary to analog output when the application requires pulse measurement.
• 1C31157G01 — Sequence-of-events module for time-sensitive discrete event recording, rather than continuous analog control.
• 1C31232G01 — Another Ovation I/O module family member; its function differs from the four-channel analog-output architecture and should not be substituted without checking the I/O database.

Frequently Asked Questions

What is Emerson 1C31132G01 used for?

The 1C31132G01 is a four-channel analog output electronics module for the Ovation DCS.

Its purpose is to convert digital control information from the Ovation system into analog signals for field equipment. Typical applications include:

• Modulating control valves
• Valve positioners
• Damper actuators
• Analog drive references
• Other continuous-control devices

The Ovation reference manual explicitly identifies 1C31132G01 with the four-channel analog-output architecture.

Is 1C31132G01 itself a 4–20 mA output module?

The complete answer depends on the personality module installed with it.

The electronics module supports the analog-output architecture, while the associated personality module determines the signal configuration. The documented combinations include:

• 1C31129G01: 0–5 VDC
• 1C31129G02: 0–10 VDC
• 1C31129G03: 0–20 mA / 4–20 mA with diagnostics
• 1C31129G04: 0–20 mA / 4–20 mA without diagnostics

So, when purchasing a replacement, do not specify only “4–20 mA” and assume every 1C31132G01 assembly is configured identically.

How many analog outputs does 1C31132G01 provide?

It provides four isolated analog output channels. The Ovation documentation shows separate +V and +I connections for each of the four channels, along with signal-return and shield/ground connections.

Each channel can therefore be wired according to the selected personality-module configuration.

Can I replace 1C31132G01 with another Ovation analog output module?

Not automatically.

First determine:

1. Existing 1C31132G01 revision.
2. Installed personality module.
3. Required voltage/current range.
4. Whether output diagnostics are required.
5. Terminal block configuration.
6. Ovation controller/I/O database configuration.
7. Existing field wiring.

A different Ovation analog-output assembly may have a different channel count, signal range, diagnostic behavior, or personality-module arrangement.

Does 1C31132G01 support output diagnostics?

The diagnostic capability is associated with the personality module configuration.

The Ovation documentation lists 1C31129G03 for 0–20 mA/4–20 mA operation with diagnostics, while 1C31129G04 provides the same current ranges without diagnostics.

That distinction matters when replacing a module in a plant where loop-fault detection is incorporated into the control strategy.

Can I hot-swap the 1C31132G01?

Do not assume that it is safe to remove the module from a live process simply because Ovation I/O is designed for maintainability.

An analog output module directly controls field equipment. Removing it can cause its associated outputs to enter a fault or defined fail state, potentially affecting valves, dampers, or other final control elements.

Before replacement, verify:

• Process operating condition
• Output fail-state behavior
• I/O redundancy
• Controller diagnostics
• Plant maintenance procedure
• Required bypass/interlock arrangements

How should I test a New Surplus 1C31132G01?

A visual inspection is not enough for an analog output card.

Recommended acceptance procedure:

1. Confirm the 1C31132G01 nameplate and revision.
2. Inspect the connector and terminal interface.
3. Verify the accompanying personality module.
4. Install the module in a controlled Ovation test rack.
5. Confirm controller recognition.
6. Exercise all four output channels.
7. Test voltage outputs where applicable.
8. Test current outputs where applicable.
9. Verify output scaling at several points, such as 0%, 50%, and 100%.
10. Check channel isolation and diagnostic behavior.
11. Confirm the module’s reported status in the Ovation engineering environment.
12. Record the test results.

To be completely transparent, the 1C31132G01 electronics module should be evaluated together with its personality module. The personality module determines the actual field signal configuration, so testing the bare electronics card without the correct personality configuration does not fully validate a production replacement.
