DEIF IFM5.1
Interface & Fieldbus Module | AWC 500 Wind Turbine Control System
Overview
IFM5.1 is a multi-channel interface communication module belonging to DEIF AWC 500 control rack series. It expands abundant external fieldbus and sensor interfaces for the main controller, establishing data links with pitch encoders, frequency converters, remote I/O units and third-party sub-devices. Internally connected to the rack via EtherCAT bus, it undertakes protocol conversion and signal acquisition tasks, widely deployed in pitch control, turbine main control cabinets for onshore and offshore wind turbines.
Main Advantages
- Rich integrated physical interfaces: 2 × RS485/RS422, 2 × CAN, 2 × SSI encoder ports
- SSI channels support external 24V power supply for absolute encoders, simplifying field wiring layout
- Galvanic isolation built on each communication channel, effectively suppressing ground loop interference inside nacelle cabinets
- Supports CANopen, Modbus RTU and other mainstream industrial protocols, convenient for docking with converters and peripheral equipment
- Tri-color front panel LED intuitively displays EtherCAT operating status and module fault information for quick troubleshooting
- Optimized mechanical structure adapts to vibration, wide temperature fluctuation and high humidity environments of wind turbines
- PCB conformal coating enhances corrosion resistance and long-term operational stability
- Standard plug-in rack design, easy disassembly and replacement during wind farm maintenance
- Perfect interoperability matched with PCM5.1, GPM5.1 and other modules in the AWC500 rack

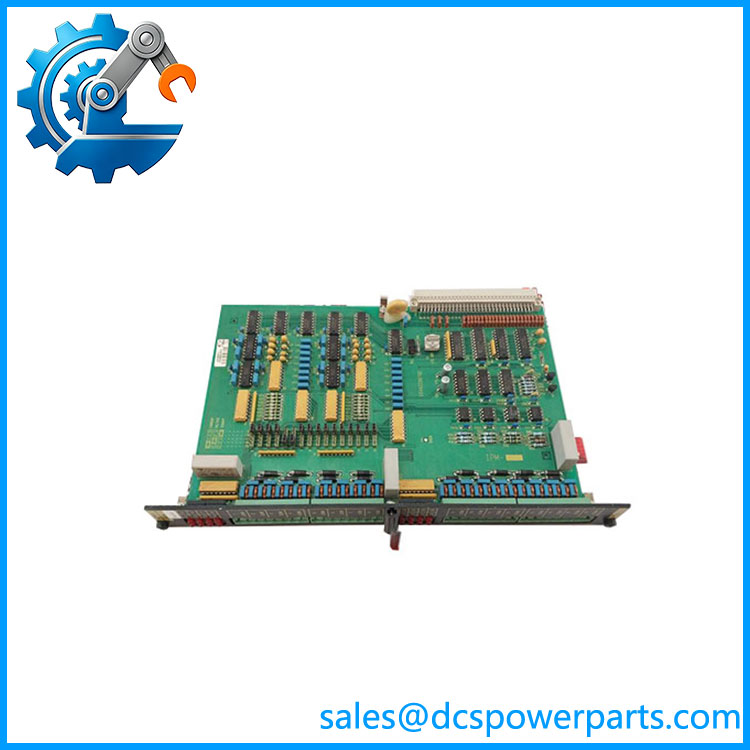

IFM5.1
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IFM5.1 |
| Manufacturer | DEIF |
| Product Type | Multi-function Interface & Fieldbus Module |
| Internal Bus | EtherCAT |
| External Interfaces | 2 × RS485/422, 2 × CAN, 2 × SSI |
| SSI Encoder Supply | 24 VDC, max. 100 mA per channel |
| Auxiliary Power | 18–36 VDC |
| Electrical Isolation | 550 V isolation strength for communication circuits |
| Mounting Mode | Plug-in module for AWC500 standard rack |
| Operating Temperature | -40 ℃ ~ +70 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Ambient Humidity | 5% – 95% RH, non-condensing |
| Vibration Standard | Compliant with wind turbine nacelle environmental requirements |
| Weight | Approx. 320 g |
Installation & Commissioning Notes
Power off the whole control rack before mounting the IFM5.1 module. Wear anti-static protective gear to avoid damage to onboard communication chips. Insert the module into the designated slot and lock securely to guarantee stable backplane contact.
Classify wiring strictly according to interface definitions: separate SSI encoder cables, CAN bus and RS485 communication lines from high-power cables. Use shielded cables for long-distance transmission and implement standardized single-point shielding grounding.
After wiring inspection, power on the system segmentally. Connect configuration software to activate each communication channel, set baud rate, node address and communication protocol parameters. Verify data transmission between the module and encoders, converters and other slave devices.
Carry out communication stability testing and fault simulation. Confirm the system can accurately capture communication interruptions and output alarm signals. After commissioning acceptance, add regular inspection items. Periodically check terminal tightness, indicator status and clear accumulated dust.
Application Range
Onshore & Offshore Wind Turbine Control Cabinets
Signal connection for pitch absolute encoders, pitch drive inverters and remote auxiliary sensors.
AWC500 Turbine Main Control System
Communication expansion for original control racks, realizing data interaction with multiple peripheral intelligent devices.
Wind Farm Retrofit & Upgrade Projects
Standard spare replacement for existing DEIF AWC500 control racks, compatible with original wiring schemes.
Distributed Energy & Hybrid Power Control Systems
Interface expansion for wind-solar-storage integrated control cabinets to connect various field sensors and converters.
Industrial Large Rotating Machinery Control
SSI encoder signal acquisition and fieldbus communication for compressors and large fan control systems.
