Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CR-GEN0-M6400R3 |
| Manufacturer | Teledyne DALSA |
| Product Type | Industrial Machine Vision Camera |
| Camera Family | Genie Series |
| Sensor Type | CCD Area Scan Sensor |
| Resolution | Up to 6400 × 4800 pixels |
| Image Format | Monochrome imaging |
| Interface | GigE Vision / Camera Link (configuration dependent) |
| Lens Mount | C-Mount |
| Trigger Mode | Hardware and software triggering |
| Power Supply | 12–24 VDC |
| Operating Temperature | Approximately -20°C to +50°C (configuration dependent) |
| Application Software Support | Vision software platforms using compatible camera drivers |
| Installation | Machine vision inspection systems |
| Typical Applications | Automated inspection, measurement, quality control |
([turn0search1]turn0search4)
Application Scenarios & Pain Points
A vision camera is only one part of an inspection system, but it is often the first component blamed when image quality changes. Lighting, optics, trigger timing, communication bandwidth, and processing settings all influence inspection results.
Typical applications:
- Automotive Manufacturing: Used for checking component dimensions, surface defects, assembly presence, and part identification.
- Electronics Production: Applied for PCB inspection, connector verification, and fine-feature image capture.
- Packaging Lines: Supports label inspection, print verification, and product alignment checks at production speed.
- Precision Manufacturing: Used for measurement tasks where repeatable image acquisition is required.
Field note: A production machine began rejecting good parts after years of stable operation. The inspection software was unchanged, but image quality had degraded. Testing showed the camera output was unstable. Replacing the CR-GEN0-M6400R3 and recalibrating the optics restored normal inspection accuracy.

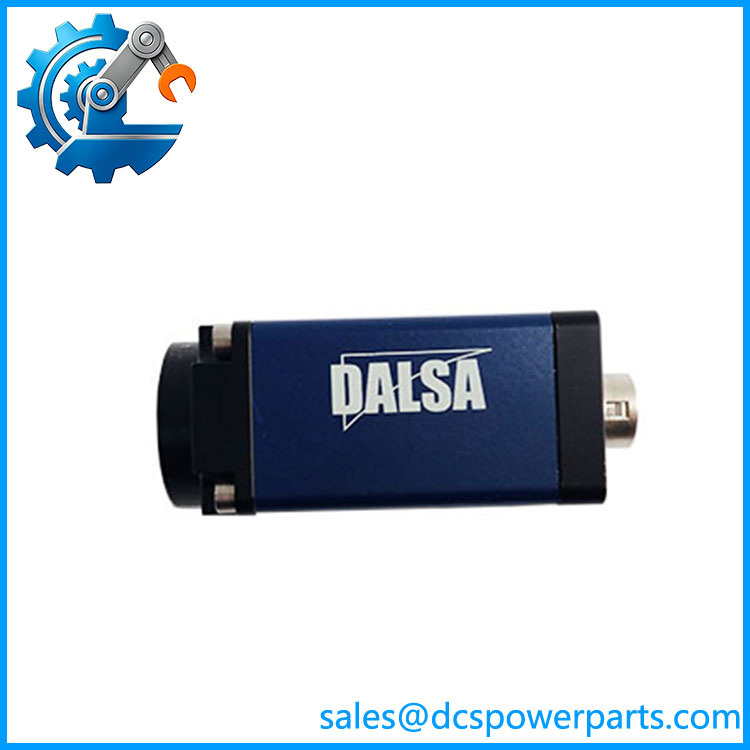

CR-GEN0-M6400R3
Related Products
- Teledyne DALSA CR-GEN0-M6400 — Same camera family without the R3 revision designation. Used for similar industrial imaging applications when hardware revision compatibility is confirmed.
- Teledyne DALSA Genie Nano Series Cameras — Updated industrial camera family offering newer sensor and interface options.
- Teledyne DALSA CR-GEN0-M1600R3 — Lower-resolution Genie camera option for applications where extreme image resolution is not required.
- Teledyne DALSA CR-GEN0-M1400 Series — Compact area scan cameras used for general inspection applications.
- Teledyne DALSA Xcelera Frame Grabbers — Imaging interface hardware used with compatible camera systems requiring dedicated acquisition hardware.
- Teledyne DALSA Sapera LT Software — Camera configuration and image acquisition software environment for DALSA vision products.
- Industrial LED Strobe Controllers — Companion equipment used to synchronize lighting with camera exposure timing.
- C-Mount Industrial Lenses — Optical components selected according to working distance, field of view, and resolution requirements.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Interface Compatibility Problems
Industrial cameras may look identical while using different communication interfaces.
How to avoid: Confirm whether the existing system uses GigE Vision, Camera Link, or another interface before replacement.
⚠️ Trigger Timing Errors
A camera can capture clear images but still fail inspection if acquisition timing does not match the machine cycle.
How to avoid: Verify PLC trigger signals, encoder timing, exposure settings, and strobe synchronization.
⚠️ Lens and Calibration Mismatch
Replacing only the camera does not guarantee the same measurement accuracy.
How to avoid: Keep the original lens specification, focus settings, calibration data, and image-processing parameters.
Frequently Asked Questions (FAQ)
What is the main function of the Teledyne DALSA CR-GEN0-M6400R3?
The CR-GEN0-M6400R3 is an industrial vision camera designed to capture high-resolution images for automated inspection and measurement systems.
Is the CR-GEN0-M6400R3 a normal surveillance camera?
No. It is designed for machine vision applications where controlled triggering, precise image capture, and integration with inspection software are required.
What should be checked before replacing this DALSA camera?
Recommended checks:
- Existing camera model and revision
- Interface type
- Lens mount and optical setup
- Trigger wiring
- Image acquisition software compatibility
- Camera configuration files
Can the CR-GEN0-M6400R3 be installed directly into any machine vision system?
Not always. The camera must match the acquisition hardware, software driver, communication interface, and mechanical mounting arrangement.
Why does a replacement camera produce different inspection results?
Possible causes include:
- Different sensor characteristics
- Incorrect exposure settings
- Lens alignment differences
- Missing calibration files
- Trigger timing changes
Is a refurbished CR- suitable for production inspection equipment?
A tested refurbished unit can be suitable when it passes image acquisition testing, communication verification, sensor inspection, connector checks, and system integration validation.
How should this industrial camera be stored as a spare?
Store the camera in anti-static packaging in a dry environment. Protect the sensor window and lens mount from dust, vibration, moisture, and mechanical impact.
