Description

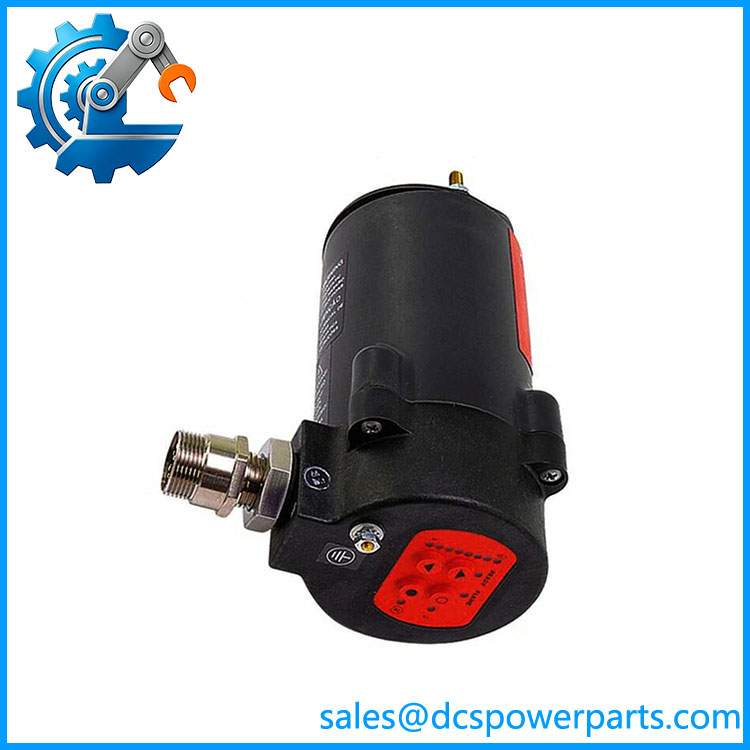

The part number 85UVF1A-1QD refers to an advanced integrated flame scanner manufactured by Fireye (part of the Phoenix Series 2 family).
Product Overview
-
Manufacturer: Fireye
-
Part Number / Model: 85UVF1A-1QD (Phoenix Series 2)
-
Component Type: Microprocessor-Based Ultraviolet (UV) Integrated Flame Scanner
-
Platform: Burner Management and Combustion Safety Systems
Key Specifications & Features
-
Detection Technology: Utilizes a solid-state ultraviolet (UV) sensor designed to detect UV emissions (specifically within the 295 to 340 nanometer wavelength range) typical of fossil fuel flames.
-
Internal Flame Relay: Features an onboard internal flame relay with automatically set ON/OFF thresholds, removing the requirement for a separate, remote flame amplifier or switch.
-
Signal Processing: Analyzes broadband modulation amplitudes (the flame “flicker”) across a wide frequency spectrum, automatically storing target flame parameters and optimizing sensor gain during setup.
-
Electrical Connection: Equipped with an 8-pin electrical quick-disconnect (QD) connector, facilitating straightforward wiring installations and maintenance.
-
Power Supply: Powered by nominal 24 VDC.
-
Outputs:
-
Standard isolated 4 to 20 mA DC analog output for real-time remote monitoring of flame signal strength.
-
SPST normally open (N.O.) flame relay and SPST normally closed (N.C.) fault relay outputs.
-
-
Self-Diagnostics: Incorporates continuous electronic self-checking and full diagnostic routines to guarantee fail-safe operation.
Industrial Deployment
-
Applications: Widely deployed across industrial boilers, commercial power plants, duct burners, refinery furnaces, low-NOx burners, waste gas incinerators, and process heating systems to ensure reliable burner supervision and emergency shutdown protection.
85UVF1A-1QD
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 85UVF1A-1QD |
| Module Type | Phoenix II UV Integrated Flame Scanner |
| Manufacturer | Fireye (Honeywell) |
| Detection Spectrum | Ultraviolet UV, 295 ~ 340 nm |
| Power Supply | 24 VDC (±20%), approx. 200 mA |
| Electrical Interface | 8-pin quick disconnect (QD) connector |
| Relay Output | Flame Relay (SPST NO); Fault Relay (SPST NC) |
| Analog Output | Isolated 4–20 mA, proportional to flame intensity |
| Configurable FFRT | Multiple flame failure response time options |
| Self-check Function | Built-in electronic self-test for sensor circuit diagnostics |
| Housing Protection | IP66 / NEMA 4X |
| Mounting Standard | 1” NPT mounting flange |
| Operating Temperature | -40℃ ~ +70℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Safety Certification | UL, CE, FM, Class I Div.2, suitable for IEC 61508 SIL3 applications |
| Spare Part Status | Original production discontinued; new surplus and refurbished units available |
Key Features
- UV spectrum detection, effectively resisting interference from hot refractory surface radiation
- Automatic learn mode: self-calibrates flame threshold and sensor gain during commissioning
- Integrated flame voting relay, no need for external flame amplifier hardware
- Visual status indicators enable local visual inspection of flame and fault status
- 4–20mA analog output transmits real-time flame strength signal to DCS/BMS
- Quick-disconnect wiring design simplifies on-site installation, maintenance and replacement
- Comprehensive multi-level hardware self-diagnosis, detects sensor failure, circuit open/short
- Rugged sealed aluminum housing adapts to high-temperature, dusty combustion cabinet environments
- Strict full part number verification required; different model variants cannot be directly interchanged without parameter matching
- Perfectly compatible with Fireye burner control systems and mainstream turbine BMS platforms
