B&R 4P3040.00-490 | Power Panel PP41 HMI and Controller
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | 4P3040.00-490 |
| Product family | Power Panel PP41 |
| Display | 5.7-inch QVGA black-and-white LCD |
| Softkeys | 8 |
| Function keys | 32 |
| CPU | System-compatible 2003 CPU |
| SRAM | 700 KB |
| FlashPROM | 1.4 MB |
| PCMCIA | 1 slot |
| Serial interface | 1 × RS-232 |
| CAN interface | 1 × electrically isolated CAN |
| Adapter slots | 6 |
| Digital inputs | 10 × 24 VDC |
| Digital outputs | 8 × 24 VDC |
| Digital output current | 0.4 A |
| Front protection | IP65 |
| Supply voltage | 24 VDC |
| Front dimensions | 205 × 220 mm (W × H) |
| Terminal blocks | TB712, ordered separately |
B&R specifies the unit as an industrial control equipment product with CE and cULus E115267 certification. The original catalog also states that two 12-pin TB712 terminal blocks must be ordered separately for installation.
Product Introduction

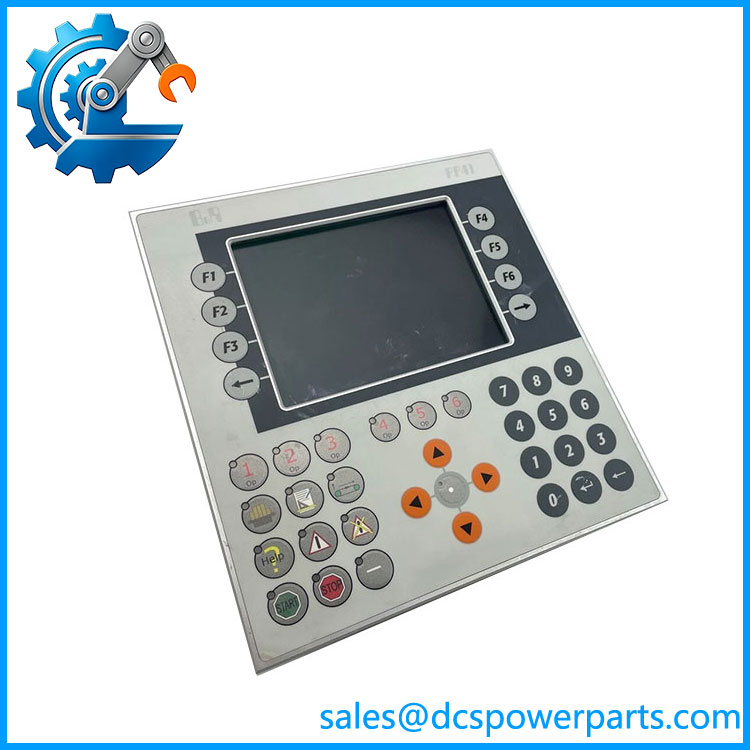

The B&R 4P3040.00-490 is a Power Panel PP41 that combines operator interaction and machine-control hardware in one panel-mounted unit. Its 5.7-inch QVGA monochrome LCD is paired with 8 softkeys and 32 function keys, while the integrated 2003 CPU provides the control platform. The hardware includes 700 KB SRAM, 1.4 MB FlashPROM, one PCMCIA slot, RS-232 and electrically isolated CAN communication.
From a maintenance perspective, the important point is that this is not simply an HMI display. The 4P3040.00-490 also contains 10 digital inputs and 8 digital outputs, allowing it to participate directly in machine-control architecture. Its six adapter-module slots provide further hardware expansion, while the 24 VDC supply and IP65-rated front are suited to panel installation.
4P3040.00-490
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The 4P3040.00-490 is often described online as a touchscreen HMI. That description is misleading. B&R’s own documentation identifies the PP41 interface as a key-operated panel with 8 softkeys and 32 function keys, combined with an embedded CPU and I/O.
Typical Applications
- Machine control panels — operator commands, machine status and local diagnostics.
- Packaging and production machinery — integrated HMI and discrete machine I/O.
- Legacy B&R control systems — replacement of existing PP41 panels without redesigning the entire control architecture.
- Compact automation stations — applications requiring operator interface, CPU, communication and discrete I/O in one assembly.
Technical Pitfalls to Avoid
- Do not treat it as a standalone display. The integrated 2003 CPU and I/O are part of the system architecture. A replacement requires consideration of the application/runtime environment, not only screen dimensions.
- Do not assume touchscreen operation. The standard 4P3040.00-490 uses softkeys and function keys. Current descriptions that label it a touchscreen should not be used as the primary technical reference.
- Check the terminal blocks before installation. B&R specifies TB712 terminal blocks separately from the Power Panel itself. Missing terminal hardware can delay commissioning even when the main panel is available.
- Preserve the original software environment. B&R community documentation specifically notes that standard 4P3040.00-490 units and customized 4P3040.00-Kxx variants can require different hardware upgrade considerations.
Related Products
- B&R Power Panel PP41 — the product family containing the 4P3040.00-490 integrated operator/controller platform.
- B&R 4P3040.01-490 — closely associated documentation/order designation; verify the nameplate before treating it as the same configured unit.
- B&R 4P3040.00-Kxx — customized PP40/ configurations; suffix differences can represent hardware or application-specific configurations.
- B&R 4EX101.00 — expansion providing an additional interface-module insertion position.
- B&R 7TB712.9 — 12-pin screw-clamp terminal block specified for installation.
- B&R 7TB712.91 — 12-pin cage-clamp terminal block option.
- B&R 0MC111.9 — 2 MB FlashPROM PCMCIA memory card accessory.
- B&R 0MC211.9 — 2 MB SRAM PCMCIA memory card accessory.
Procurement Note
For a replacement B&R 4P3040.00-490, verify the complete material number rather than purchasing a visually similar panel. The critical compatibility points are the 2003 CPU configuration, Automation Runtime/application version, PCMCIA contents, adapter modules, digital I/O wiring, CAN network configuration, and installed terminal blocks.
B&R’s current product page still provides the original documentation for 4P3040.00-490, while secondary sources identify the model as discontinued.
Database classification: B&R 4P3040.00-490 = Power Panel integrated HMI/operator panel + 2003 CPU + digital I/O controller.
