Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | 5AP920.1505-01 |
| Product Family | Automation Panel 900 |
| Product Type | Industrial HMI Touch Panel |
| Display Size | 15″ (381 mm) |
| Display Type | TFT Color LCD |
| Resolution | XGA 1024 × 768 pixels |
| Display Colors | 16.7 million |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Backlight Life | Approx. 70,000 hours half-brightness time |
| Touch Technology | Analog resistive touchscreen |
| Touch Controller | Elo serial 12-bit |
| USB Interfaces | 3 × USB 2.0 Type A |
| Expansion Slot | PPC300 compatible slot |
| Display Link Support | Automation Panel Link compatible |
| Supply Voltage | 24VDC ±25% |
| Current Consumption | Max. 3.2A |
| Power Consumption | Typical 24W, max. 31W (41W with USB) |
| Front Protection | IP65 / NEMA 250 Type 4X indoor |
| Rear Protection | IP20 with Automation Panel Link card installed |
| Dimensions | 435 × 330 × 54 mm |
| Weight | Approx. 5.1 kg |
| Operating Temperature | 0°C to +50°C (depending on mounting orientation) |
Product Introduction

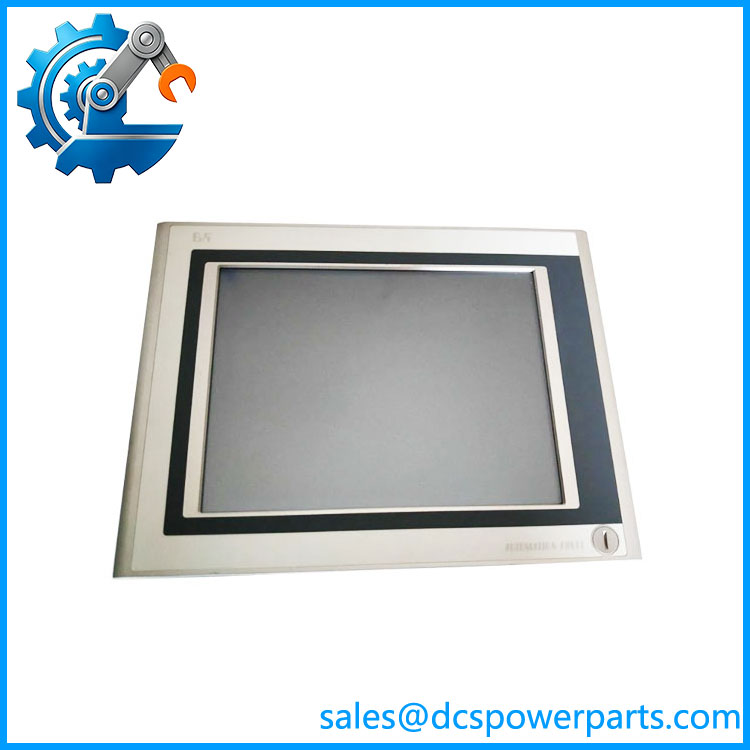

B&R 5AP920.1505-01 Overview
The B&R 5AP920.1505-01 is a 15-inch Automation Panel 900 industrial HMI designed for operator interaction in machine automation systems. It provides a TFT XGA display, resistive touchscreen input, USB connectivity, and expansion capability for PPC300 computing modules or Automation Panel Link interfaces.
The B&R 5AP920.1505-01 is commonly used in manufacturing equipment where a dedicated operator interface is required near the machine. Its shallow 54mm installation depth, fan-free construction, and IP65 front protection make it suitable for control cabinets, machine enclosures, and production environments.
5AP920.1505-01
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production machine is running, but the operator panel becomes unreliable after years of service. Touch inputs become inconsistent, the display brightness drops, or communication with the controller is interrupted.
Many engineers immediately suspect the PLC or application software. In practice, the HMI hardware path should be checked first: touchscreen condition, power quality, display communication cable, and panel configuration.
The B&R 5AP920.1505-01 is the operator’s connection to the machine. A failed interface can stop production even when the control logic remains healthy.
Typical Applications
- Packaging Machinery – Operator interface for filling, labeling, wrapping, and inspection equipment.
- Automotive Manufacturing – Machine control stations for assembly lines, testing equipment, and production cells.
- Material Handling Systems – Local HMI stations for conveyors, storage systems, and automated transport equipment.
- Process Machinery – Control interfaces for mixing, dosing, and specialized production machines.
Technical Pitfalls to Avoid
- Confirm Display Link Configuration
The Automation Panel 900 can use different connection methods depending on the installed interface card. Verify whether the machine uses SDL, DVI, or another supported link arrangement before replacement.
- Check Touchscreen Driver Compatibility
The resistive touchscreen requires the correct operating system driver and configuration. A working display does not guarantee correct touch operation after hardware replacement.
- Verify 24VDC Supply Quality
Voltage drops, electrical noise, or incorrect grounding can create HMI resets and communication faults. Measure the cabinet supply under operating load before replacing the panel.
