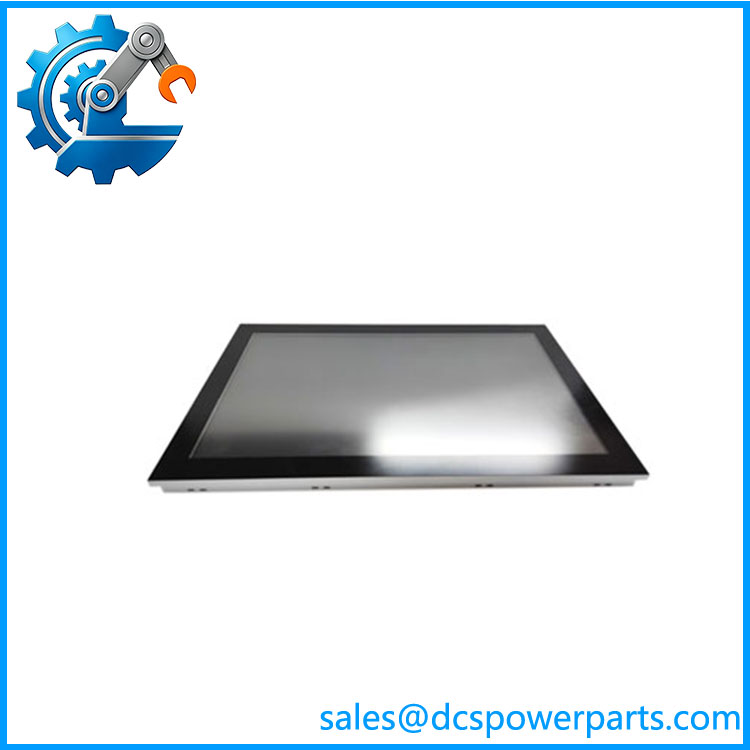

B&R 5AP933.215C-00 | 1920×1080 PCT Touch Display

Description

Key Technical Specifications

B&R’s official product record confirms the 21.5-inch FHD display, PCT multi-touch, 1920 × 1080 resolution, 20–400 cd/m² dimmable LED backlight, 50,000-hour half-brightness rating, IP65 front protection, and 541.5 × 333 mm mechanical dimensions.

A useful revision detail for procurement: B&R’s technical documentation identifies C0 and D0 revisions for this material number. The manufacturer also provides a 3D mechanical file specifically identified for revision D0 or higher.

Application Scenarios & Pain Points

A failed operator panel can stop production even when the PLC, drives, and I/O remain completely healthy. With older machines, the bigger problem is often finding a panel that matches the existing mechanical cutout and system-unit interface rather than simply finding a display of the same diagonal size.

• Machine operator stations: Provides the visual and touch interface for machine controls, alarms, recipes, diagnostics, and production parameters.
• B&R Panel PC systems: Designed for use with compatible PPC900, PPC2100, PPC2200, and PPC3x00 configurations.
• Industrial control cabinets: The aluminum-framed panel is intended for cabinet installation, with a landscape orientation and IP65 front protection.
• HMI modernization: The 21.5-inch FHD format can serve as a replacement panel where the existing B&R system architecture supports this material number.

Field note: A 21.5-inch screen is not enough to establish compatibility. The cutout, link module, system unit, revision, and software/hardware configuration all matter. Two B&R panels can look nearly identical from the front and still belong to different hardware configurations.

Brief Field Case

On a machine with a failed touch panel, technicians sometimes order a visually similar B&R display and discover during installation that the rear interface does not match the existing system unit. Before removing the old panel, photograph the rear connectors and record the complete material number and revision. That small step can prevent an unnecessary second shutdown.

5AP933.215C-00

Related Products

• B&R 5AP933.215C-00 — The subject 21.5-inch FHD Automation Panel with PCT multi-touch. It is the display/interface component rather than a complete Panel PC.
• B&R PPC900 — Panel PC platform compatible with this Automation Panel family. The computing hardware is separate from the 5AP933.215C-00 panel itself.
• B&R PPC2100 — Panel PC platform supported by the panel. Suitable where the operator interface and embedded computing functions are required together.
• B&R PPC2200 — Another compatible Panel PC platform. Verify the exact system-unit and link-module configuration before substitution.
• B&R PPC3100 / PPC3x00 — B&R Panel PC family referenced by the manufacturer’s product documentation as compatible with this panel.
• B&R Automation Panel AP9x3 Series — The broader panel family to which this 21.5-inch unit belongs. Different sizes and hardware variants are not automatically interchangeable.
• B&R Link Modules — Required interface hardware for connecting the Automation Panel to an appropriate system unit. The exact module depends on the connected B&R platform.
• B&R SDL3 / SDL4 Converter Hardware — Interface-related accessories associated with Automation Panel installations. The applicable converter depends on the system architecture and connection method.
• B&R 5AP923.1215-00 — A different B&R panel material number documented within the Panel PC 3100 technical material. It should not be treated as a direct substitute without checking the cabinet cutout and system interface.

The Engineer’s Guide: Field Pitfalls to Avoid

WARNING 1 — Do not match the replacement by screen size alone.

A 21.5-inch B&R panel can have a different interface, mounting arrangement, or system-unit compatibility.

How to avoid it: Match the complete 5AP933.215C-00 material number, revision, rear interface, and connected PPC/link-module configuration.

WARNING 2 — Check the front/rear IP ratings correctly.

The manufacturer’s specification gives the panel IP65 protection at the front, while the rear is IP20 when the link module or system unit is installed. It is not an IP65 enclosure on every surface.

How to avoid it: Make sure the cabinet installation provides the required environmental protection around the rear of the unit. Do not use the front IP rating as the rating for the complete enclosure.

WARNING 3 — Verify the mechanical revision and gasket condition.

B&R documentation identifies different revisions, including C0 and D0. A replacement with a different physical revision may still carry the same material number but should be checked against the machine’s mounting requirements.

How to avoid it: Inspect the fixed gasket, aluminum frame, mounting area, and cabinet cutout before installation. A damaged gasket can compromise the intended front-panel sealing.

Frequently Asked Questions (FAQ)

What is B&R 5AP933.215C-00?

5AP933.215C-00 is a B&R Automation Panel with a 21.5-inch Full HD TFT color display and projected-capacitive multi-touch. B&R specifies it for control-cabinet installation and use with compatible PPC900, PPC2100, PPC2200, and PPC3x00 systems.

It is important to distinguish the panel from the complete Panel PC: the panel provides the display/touch interface, while the computing/system function comes from the connected B&R system unit.

What is the resolution of 5AP933.215C-00?

The panel uses a 1920 × 1080 Full HD resolution with a 16:9 aspect ratio and supports 16.7 million colors. Its specified contrast ratio is 1000:1.

Does the B&R 5AP933.215C-00 have a touchscreen?

Yes. It uses projected capacitive touch (PCT) technology with multi-touch capability. B&R specifies approximately 88% touch-screen transmittance.

Is 5AP933.215C-00 a complete Panel PC?

No. This distinction is important when preparing a procurement BOM.

The material number identifies an Automation Panel. It is intended to work with compatible B&R system units or link modules. B&R explicitly lists compatible PPC platforms including PPC900, PPC2100, PPC2200, and PPC3x00.

Can I replace another 21.5-inch B&R panel with 5AP933.215C-00?

Not automatically. Before approving the replacement, compare:

• Complete B&R material number
• Hardware revision
• Cabinet cutout
• Mounting arrangement
• Rear connector/interface
• Link module
• Connected PPC system unit
• Automation Studio hardware configuration

The same diagonal measurement does not establish electrical or mechanical compatibility.

What is the protection rating of the B&R 5AP933.215C-00?

The front is IP65 according to B&R’s specification. The rear is IP20 when the link module or system unit is installed. B&R also specifies UL Type 4X for indoor use only for the front.

This distinction matters in washdown or dusty environments because the cabinet and rear-side installation must provide the required environmental protection.

What should I request when purchasing a replacement 5AP933.215C-00?

For a production spare, request:

1. Exact 5AP933.215C-00 material number.
2. Clear front and rear photographs.
3. Hardware revision.
4. Touchscreen functional test.
5. Full-resolution display test.
6. Backlight inspection.
7. Dead-pixel inspection.
8. Connector/link-module interface inspection.
9. Gasket and mounting-frame inspection.
10. Warranty and condition statement.

For a refurbished unit, I would specifically ask for a touch-grid test and display test, not just a power-on photograph. A panel can illuminate normally while individual touch areas, backlight zones, or display pixels are already failing.
