Description
Product Overview

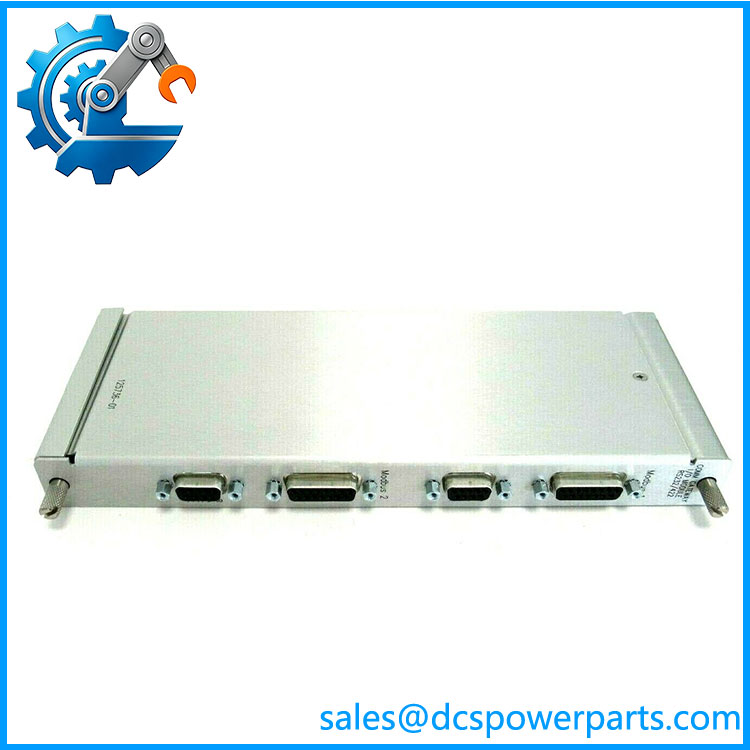

The Bently Nevada 3500/92 125736-01 is the Modbus RS232/RS422 I/O module used with the 3500/92 Communication Gateway. Its purpose is to provide a serial communications path between the 3500 machinery protection system and external automation equipment using Modbus. The distinction is important: 125736-01 is the I/O interface portion of the 3500/92 gateway assembly, rather than the complete 3500/92 gateway processor itself. Bently Nevada’s official datasheet lists 125736-01 specifically as the Modbus RS232/RS422 I/O module.
The Bently Nevada 3500/92 gateway collects monitored values and statuses from the 3500 rack and makes them available to process-control and automation systems. The complete gateway supports Ethernet TCP/IP as well as serial RS232, RS422, and RS485 communication, with Modbus and Bently Nevada proprietary protocols. The 125736-01 handles the RS232/RS422 Modbus interface, allowing legacy DCS and PLC systems that rely on serial Modbus to obtain machinery-monitoring information.
The Bently Nevada 125736-01 is therefore most useful in established 3500 installations where the plant control system already has a serial Modbus architecture. It should not be confused with the 3500/92 gateway module 136180-01, nor with the alternative 133323-01 RS485 I/O module. The official ordering information lists these as separate I/O options.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Gateway Series | 3500/92 |
| Part Number | 125736-01 |
| Product Type | Modbus RS232/RS422 I/O Module |
| Primary Function | Serial communication interface |
| Serial Interfaces | RS232 / RS422 |
| Communication Protocol | Modicon Modbus |
| Transmission Mode | Modbus RTU |
| Associated Gateway Module | 136180-01 |
| Associated System | 3500/92 Communication Gateway |
| Ethernet | Via associated 3500/92 Ethernet-capable configuration |
| Host Network | 3500 internal rack communication |
| External Application | DCS / PLC / SCADA / supervisory systems |
| Configuration Software | Bently Nevada 3500 Rack Configuration Software |
| Data Source | 3500 rack monitored values and statuses |
| Rack Compatibility | 3500 Machinery Protection System |
| Power | Supplied through associated 3500 system |
| Firmware | Gateway-dependent |
| Mounting | 3500 rack I/O module position |
| Condition | New Surplus / Tested Replacement |
The official datasheet identifies four possible 3500/92 I/O module configurations: 125736-01 Modbus /, 133323-01 Modbus RS485, 136188-01 Ethernet/ Modbus, and 136188-02 Ethernet/RS485 Modbus.
Main Features and Advantages
/ Modbus Interface
The main function of 125736-01 is serial Modbus communication. It provides the physical/interface layer required for the 3500/92 gateway to communicate with external systems through .
This makes the module particularly useful for older plant DCS and PLC installations where replacing an established serial Modbus link with Ethernet would require additional engineering.
Integration With the 3500/92 Gateway
The 125736-01 does not replace the complete communication gateway. It works with the 136180-01 3500/92 Communication Gateway Module. The gateway obtains data from the 3500 rack and the I/O module provides the appropriate external communications interface.
This distinction is important when ordering a spare. A request for a “3500/92” may refer to the complete gateway assembly, while 125736-01 specifically identifies the serial I/O module.
Modbus RTU
The serial communication path uses the Modicon Modbus protocol in RTU transmission mode. This allows external automation equipment to read machinery-monitoring information through a standardized industrial communication protocol.
Access to Machinery Data
The complete 3500/92 gateway can communicate rack-monitored values and statuses, including direct vibration, gap, 1X, 2X, Smax, channel status, rack status, trip multiply and other information.
The actual data available to the external system depends on the configured Modbus register map and the monitor modules installed in the 3500 rack.
125736-01
Configurable Modbus Register Mapping
The 3500/92 introduced a Configurable Modbus Register Utility, allowing users to create a custom or condensed Modbus map. This is particularly useful when a DCS only needs selected machinery values rather than the entire available data set.
Legacy 3500/90 Compatibility
The 3500/92 supports the communication interfaces and protocols of the earlier 3500/90, with the exception of the original primary-value Modbus registers; the configurable register utility provides corresponding functionality.
This can simplify migration of an existing communication architecture, but the actual register mapping should still be verified before commissioning.
Important Replacement Considerations
When sourcing 125736-01, verify the following:
- Part number: 125736-01
- Function: Modbus / I/O
- Associated gateway: 136180-01
- Existing 3500/92 hardware revision
- DCS/PLC serial interface
- versus wiring
- Modbus RTU settings
- Slave/device address
- Baud rate
- Parity and stop-bit configuration
- Modbus register mapping
- Firmware compatibility
The official ordering information shows that 125736-01, 133323-01, 136188-01, and 136188-02 are different I/O module options. They should not be treated as interchangeable merely because they all belong to the 3500/92 gateway.
Firmware Compatibility
This is an especially relevant issue with older 3500/92 installations. Bently Nevada’s documentation specifies firmware upgrade kit 126M4118-01 and notes that older Communication Gateway modules may require a firmware upgrade when communicating with a new I/O module.
For a replacement project, therefore, checking only the hardware part number is insufficient.
Related Bently Nevada Products
- 3500/92 136180-01 — Communication Gateway Module.
- 125736-01 — Modbus / I/O Module.
- 133323-01 — Modbus RS485 I/O Module.
- 136188-01 — Ethernet/ Modbus I/O Module.
- 136188-02 — Ethernet/RS485 Modbus I/O Module.
- 3500/22M — Transient Data Interface Module.
- 3500/32 — Four-channel relay module.
- 3500/34 — TMR relay module.
- 3500/42M — Proximitor/Seismic Monitor.
- 3500/92 — Communication Gateway for the 3500 Machinery Protection System.
Baker Hughes currently describes the 3500/92 as a communication gateway for integration with process-control and other automation systems using Ethernet TCP/IP and // interfaces.
Frequently Asked Questions
What is Bently Nevada 125736-01?
125736-01 is the Modbus / I/O Module for the Bently Nevada 3500/92 Communication Gateway.
Is 125736-01 the complete 3500/92 gateway?
No. The complete gateway includes the communication gateway module, identified in the ordering documentation as 136180-01, together with the selected I/O module.
What protocols does it support?
The serial interface uses Modicon Modbus, with RTU transmission mode.
Does 125736-01 provide Ethernet?
Not by itself. The 125736-01 is specifically the I/O option. Ethernet-capable configurations use different I/O modules, such as 136188-01 or 136188-02.
What is the difference between 125736-01 and 133323-01?
125736-01 = Modbus /.
133323-01 = Modbus .
They are separate 3500/92 I/O module options.
Can 125736-01 communicate with a DCS?
Yes. Its purpose is to provide the serial Modbus interface through which the 3500/92 gateway can exchange machinery-monitoring information with external process-control and automation systems.
What should be checked before replacement?
At minimum, confirm:
- 125736-01 part number
- 3500/92 gateway module
- or physical interface
- Modbus RTU parameters
- Register mapping
- Gateway firmware
- Existing I/O module type
- DCS/PLC serial configuration
Procurement judgment: Bently Nevada 3500/92 125736-01 is specifically a Modbus / I/O module, not the complete 3500/92 Communication Gateway. For an existing 3500 installation, the most important compatibility checks are the 136180-01 gateway, serial interface type, Modbus configuration, register map, and firmware revision. Bently Nevada also documents a firmware upgrade requirement for some older gateway/I/O combinations, so hardware-only substitution should not be treated as automatically commissioning-ready.
