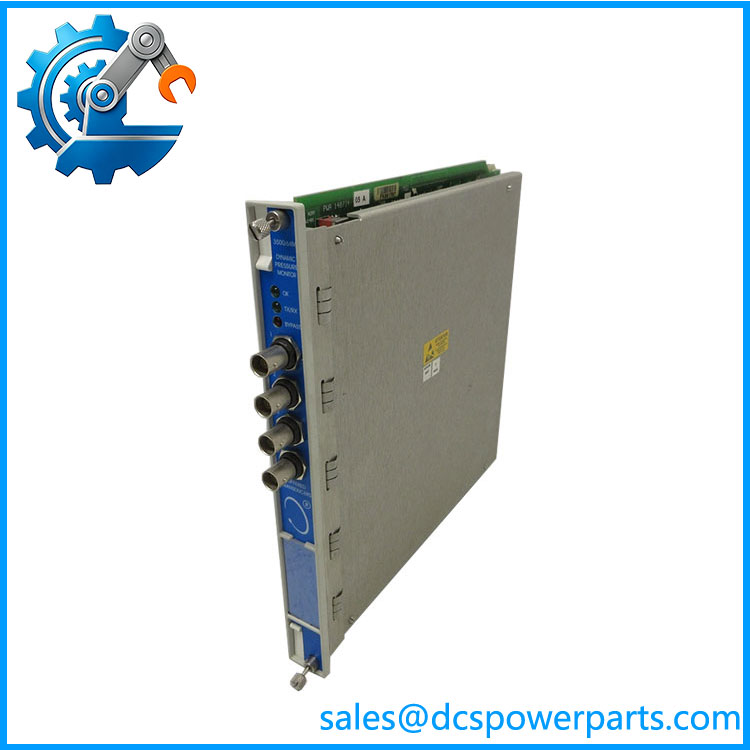

The Bently Nevada 3500/64M 140734-05 is a four-channel Dynamic Pressure Monitor for the Bently Nevada 3500 Machinery Protection System. It accepts signals from high-temperature pressure transducers and processes one bandpass dynamic-pressure variable per active channel. The module is specifically intended for applications where pressure pulsation or combustion dynamics provide important information about rotating machinery condition. Bently Nevada’s current datasheet identifies the 3500/64M as a single-slot monitor and states that its primary purpose includes continuous machinery protection and provision of machine information for operations and maintenance personnel.
Within a 3500 rack, the Bently Nevada 3500/64M 140734-05 works as a dedicated monitoring module rather than a general analog-input card. Bandpass corner frequencies and an optional notch filter are configured through 3500 Rack Configuration Software. Each active channel can have Alert and Danger setpoints, allowing the monitor to generate alarm conditions when measured dynamic pressure exceeds configured limits. The system can also provide recorder outputs for control-system applications.
The Bently Nevada 3500/64M 140734-05 is particularly relevant to gas-turbine combustion monitoring. Bently Nevada’s 3500 system documentation specifically identifies the /64M as being intended primarily for monitoring combustor pressure pulsation instabilities, commonly referred to as combustion “humming.” This is an important distinction when selecting a spare: the /64M should not be confused with the 3500/62 process-variable monitor or the 3500/42M vibration monitor.
One procurement point deserves attention: several secondary listings publish incorrect descriptions such as “64-channel I/O module” or generic vibration monitor. Those descriptions conflict with Bently Nevada’s published documentation, which specifies four dynamic-pressure channels.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product Series | 3500 Machinery Protection System |
| Model | 3500/64M |
| Part Number | 140734-05 |
| Product Type | Dynamic Pressure Monitor |
| Number of Channels | 4 |
| Rack Position | Single-slot monitor module |
| Input | High-temperature pressure transducer signals |
| Measured Variable | Bandpass dynamic pressure |
| Input Range | Dependent on transducer/configuration |
| 3-Wire Transducer Input Impedance | 10 kΩ |
| 2-Wire Transducer Input Impedance | >1.5 MΩ; 3.5 MΩ typical |
| Dynamic Pressure Sensitivity | 100 mV/psi; 1.45 mV/mBar |
| Filtering | Configurable bandpass; optional notch filter |
| Alarm Functions | Alert and Danger setpoints |
| Front-Panel OK LED | Yes |
| Front-Panel Bypass LED | Yes |
| Recorder Output | Provided for control-system applications |
| Configuration | 3500 Rack Configuration Software |
| Primary Application | Combustor pressure pulsation / dynamic-pressure monitoring |
| System Interface | 3500 rack backplane |
| Condition | New Surplus, subject to inspection |
The 3-wire/2-wire impedance and sensitivity figures above are reported in published 3500/64M documentation; the current Bently Nevada datasheet confirms the four-channel architecture, dynamic-pressure measurement, filtering, and alarm functions.
Engineering caution: Do not use generic claims of “0–64 MPa,” “4–20 mA input,” or “Modbus RTU” found in some secondary listings as specifications for this monitor. Those values are not supported by Bently Nevada’s published 3500/64M datasheet and may describe unrelated equipment.
140734-05
Related Products
- Bently Nevada 3500/64M — The same four-channel Dynamic Pressure Monitor family. The 140734-05 ordering number identifies the specific hardware configuration.
- Bently Nevada 3500/62 — Six-channel Process Variable Monitor. It handles static proportional signals such as 4–20 mA and 1–5 VDC, making it functionally different from the dynamic-pressure /64M.
- Bently Nevada 3500/42M — Four-channel Proximity Monitor that can be configured for several vibration, position, speed, and other measurement functions. It is a different monitor architecture and should not be used as a direct /64M replacement.
- Bently Nevada 3500/40M — Four-channel monitor supporting configurable measurement types. It can be relevant where a more flexible measurement configuration is required instead of the dedicated dynamic-pressure function of the /64M.
- Bently Nevada 3500/22M — Transient Data Interface module used as part of the 3500 system architecture. It handles system data/interface functions and does not replace the measurement function of the /64M.
- Bently Nevada 3500/32M — Four-channel Relay Module used to provide relay outputs for machinery protection logic. It complements monitoring modules such as the /64M rather than replacing them.
- Bently Nevada 3500/33 — Sixteen-channel Relay Module for larger relay-output requirements. It is relevant when multiple alarms from the 3500 rack need to be interfaced with shutdown or annunciation circuits.
- Bently Nevada 3500/05 — Instrument Rack that provides the backplane and physical rack architecture required by the 3500 monitor modules.
Frequently Asked Questions
1. What is Bently Nevada 3500/64M 140734-05 used for?
The 3500/64M 140734-05 is a four-channel Dynamic Pressure Monitor used in the 3500 Machinery Protection System. Its principal application is monitoring dynamic pressure, particularly combustion-pressure pulsation in gas turbines.
It continuously compares configured measurements against Alert and Danger setpoints, providing information that can be used for machinery protection and operational diagnostics.
2. Is the 3500/64M a vibration monitor?
No.
The /64M is specifically a dynamic-pressure monitor. Its four channels accept pressure-transducer signals. A 3500/42M, by comparison, is intended for vibration, position, speed, and related measurement applications.
This distinction matters when replacing a failed 3500 monitor because the transducer interface and configuration are different.
3. Can I replace 3500/64M 140734-05 with a 3500/62?
Not as a direct replacement.
The two modules perform different measurement functions:
- 3500/64M: Four-channel dynamic pressure
- 3500/62: Six-channel process variables
Bently Nevada specifically identifies the /62 for static proportional signals such as 4–20 mA, 1–5 VDC, and other static voltage signals.
If the existing installation monitors combustor pulsation, the /62 does not provide an equivalent measurement function.
4. Can I hot-swap the 3500/64M?
Do not assume live replacement is permitted simply because the module is rack-mounted.
The /64M participates in a machinery protection system, and removing a monitor can affect the monitoring and alarm architecture. Follow the plant’s approved maintenance procedure and determine whether the associated channel is bypassed or otherwise protected during maintenance.
After replacement, verify:
- Rack recognition.
- Module status.
- Channel configuration.
- Pressure-transducer signals.
- Bandpass settings.
- Alert/Danger setpoints.
- Alarm and relay behavior.
5. Will replacing 140734-05 erase my 3500 configuration?
The module replacement should not be treated as equivalent to replacing the entire 3500 configuration environment.
Still, configuration backup is good maintenance practice. Record the existing /64M configuration before removing the module, especially:
- Active channels
- Transducer configuration
- Bandpass frequencies
- Notch-filter settings
- Alert setpoints
- Danger setpoints
- Bypass status
- Recorder-output configuration
The 3500 Rack Configuration Software is used to configure the /64M filtering and monitoring parameters.
6. Does 3500/64M 140734-05 support firmware v3.1?
The exact firmware revision should not be inferred from the 140734-05 part number.
Bently Nevada’s published documentation establishes the module’s functional configuration but does not provide evidence that every 140734-05 unit corresponds to a universal firmware version 3.1. For a replacement, compare the installed module’s firmware/configuration with the existing rack requirements.
7. How should I verify a New Surplus 3500/64M 140734-05?
For a maintenance spare, verify the physical identification and functional condition:
- 3500/64M front-panel marking
- 140734-05 part number
- Four-channel configuration
- Front-panel LEDs
- Connector and I/O module condition
- PCB condition
- Revision/serial information
- Rack recognition
- Channel signal test
- Alarm/setpoint verification
Be particularly careful with catalog descriptions claiming that this is a 64-channel module or generic vibration card. Bently Nevada’s own documentation identifies it as a single-slot, four-channel Dynamic Pressure Monitor.
