Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/54-03-00 |
| Product Type | Electronic Overspeed Detection Module |
| Series | 3500 Machinery Protection System |
| Primary Function | Overspeed monitoring and protection |
| Input Signal Range | -10VDC to +10VDC |
| Sensor Power Supply | -24VDC |
| Power Consumption | 7.7 W typical |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | Up to 95%, non-condensing |
| Module Dimensions | 241.3 mm × 24.4 mm × 241.8 mm |
| Installation | 3500 rack slot mounting |
| Communication | 3500 system backplane communication |
| Application | Turbines, compressors, generators, rotating machinery protection |
Product Introduction
Bently Nevada 3500/54-03-00 Overview
The Bently Nevada 3500/54-03-00 is an electronic overspeed detection module designed for the Bently Nevada 3500 machinery protection platform. It monitors speed-related signals from rotating equipment and provides protective functions for critical assets such as turbines, compressors, and generators.
The module is typically installed in a 3500 rack alongside power supply, TDI, monitor, and communication modules. Its value is in maintaining dedicated machinery protection functions in existing 3500 installations where replacing an entire monitoring system is not practical.

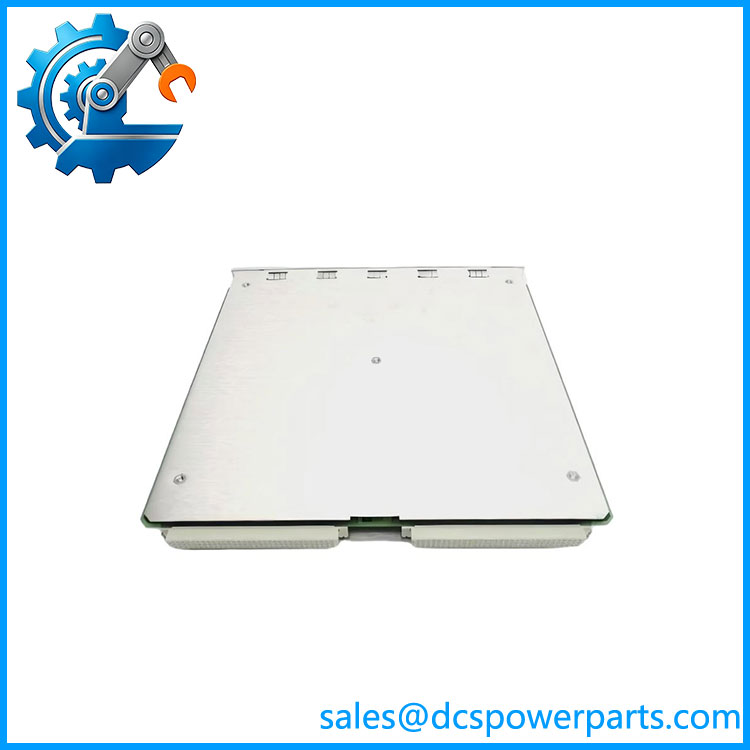

350054-03-00
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine overspeed event is one of the fastest ways to create serious equipment damage. In many plants, the protection system must remain independent from normal process control because the shutdown decision has to happen without waiting for a PLC or DCS sequence. When an overspeed module begins showing unstable readings, false alarms, or channel faults, engineers need to determine whether the issue is the module, the speed pickup, wiring, or configuration.
Typical Applications
- Power Generation – Steam turbine and gas turbine overspeed protection monitoring.
- Oil & Gas Processing – Compressor train protection and rotating equipment shutdown systems.
- Petrochemical Plants – Critical pump, expander, and turbine protection applications.
- Industrial Utilities – Generator and auxiliary rotating equipment monitoring.
Technical Pitfalls to Avoid
- Verify Speed Sensor Compatibility
The overspeed module depends on correct input signal characteristics. Confirm the installed speed pickup type, signal amplitude, and wiring configuration before replacing the module.
- Check Configuration Data Before Startup
A replacement 3500/54 module may require configuration verification through the 3500 system software. Alarm limits, voting logic, and trip settings must match the approved protection design.
- Do Not Ignore Rack and Power Conditions
A module fault does not always mean the module itself has failed. Check the 3500 rack backplane, power supply status, and adjacent module health indicators before removing hardware.
