Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 |
| Monitor | 3500/42M |
| Part Number | 126632-01 |
| Product Type | Proximitor/Seismic Monitor |
| Number of Channels | 4 |
| Supported Measurement Types | Proximity / seismic vibration |
| Input Signal | Compatible Bently Nevada transducer signals |
| Typical Outputs | 4-20 mA proportional outputs |
| Alarm Functions | Alert / Danger |
| Protection Function | Overspeed-related and machinery-protection applications depending on configuration |
| Rack Interface | 3500 backplane |
| Configuration | Software configurable |
| Front Panel | LEDs for channel/status indication |
| System Application | Continuous machinery condition monitoring and protection |
The 3500/42M Proximitor/Seismic Monitor is a four-channel monitor used to condition and process signals from proximity and seismic transducers. Its configuration determines which measurements and functions are active, so the monitor should be matched to the original system configuration rather than treated as a generic four-channel vibration card.
Application Scenarios & Pain Points
In a turbine or compressor train, vibration channels rarely operate in isolation. A single monitor may be feeding the plant’s alarm, trip, historian, and operator display systems. Replacing the wrong monitor variant can therefore create several downstream problems even when the card itself appears healthy.
Typical Applications
- Steam and Gas Turbines: Suitable for monitoring shaft vibration, casing vibration, position, or related machine measurements when the installed transducers match the monitor configuration.
- Compressors: Four-channel monitoring can be used for radial vibration and other rotating-equipment measurements, with the exact channel assignment determined by the protection-system design.
- Pumps and Motors: Applicable to rotating machinery where continuous vibration monitoring is required and the 3500 rack provides the central machinery-protection platform.
- API 670 Machinery Protection: The 3500 platform is designed for continuous online machinery protection, with monitor modules providing measurement and alarm/protection functions appropriate to the installed configuration.
Field Case:
When a 3500/42M channel suddenly reports abnormal vibration, first compare the reading against the companion channels and the historical trend. Then check the Proximitor, extension cable, transducer gap, and channel configuration. A bad probe can produce a very convincing “bad monitor” symptom.

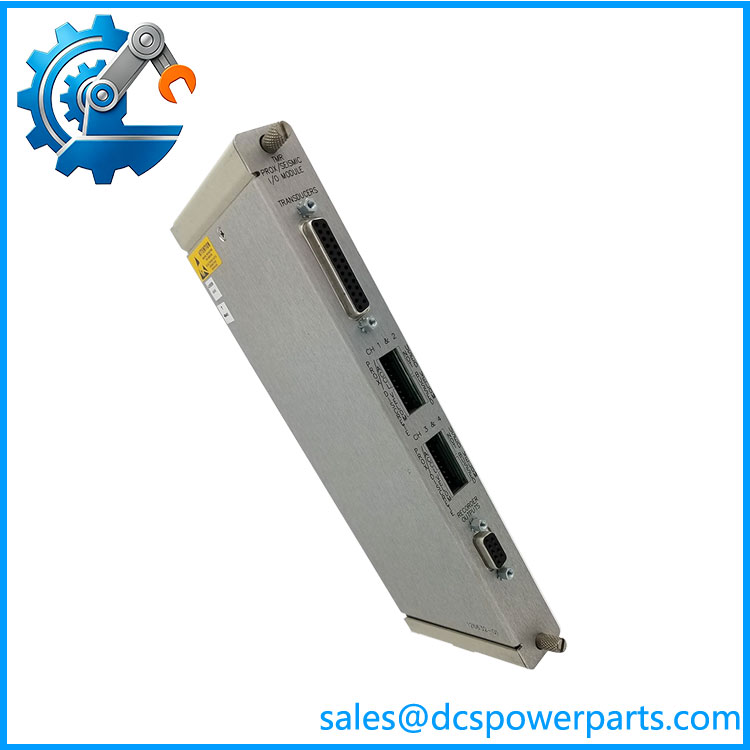

126632-01
Related Products
- Bently Nevada 3500/42M 126632-01 — The target four-channel Proximitor/Seismic Monitor. It is the correct reference when the installed rack requires this exact monitor and configuration.
- Bently Nevada 3500/42M 140734-02 — A later/alternative 3500/42M Proximitor/Seismic Monitor part number. Hardware and firmware revision must be checked before considering it as a replacement for 126632-01.
- Bently Nevada 3500/40M 140734-01 — Four-channel Proximitor Monitor family hardware. It is intended for proximity measurement applications and has a different functional scope from the 3500/42M.
- Bently Nevada 3500/44M 176449-01 — Four-channel aeroderivative gas turbine monitor. Its application is more specialized, so it should not be treated as a general 3500/42M substitute.
- Bently Nevada 3500/15 — Power Supply Module for the 3500 rack. It supports the monitor chassis rather than performing vibration measurement.
- Bently Nevada 3500/22M — Transient Data Interface module. It provides rack-level communication and data-interface functions, whereas the 3500/42M performs measurement processing.
- Bently Nevada 3500/25 — Enhanced Keyphasor module. It handles shaft-speed/reference signals and provides information used by other 3500 monitors; it does not replace the 3500/42M.
- Bently Nevada 3500/32M — Four-channel relay module used for relay output functions. It belongs downstream of monitoring logic rather than serving as the vibration input monitor.
- Bently Nevada 3300 XL 8 mm Proximitor Sensor — A compatible transducer family used in many Bently Nevada proximity measurement systems. The exact sensor, extension cable, and monitor configuration must be matched.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Assume Every 3500/42M Is Identical
The 3500/42M family has multiple ordering numbers and configuration options. A card with the same front-panel designation can still have different hardware, firmware, or configured measurement functions.
How to avoid it: Match 126632-01, the full module label, revision, firmware, and original rack configuration. If possible, export or record the existing configuration before removing the old monitor.
⚠️ A Vibration Reading Is Not Automatically a Bad Monitor
A failed Proximitor, damaged extension cable, incorrect probe gap, or loose terminal can produce an apparently defective 3500/42M channel.
How to avoid it: Troubleshoot the complete signal chain:
Probe → Extension Cable → Proximitor → 3500/42M → Rack → Relay/Interface → Control System
Check DC bias, gap voltage, cable continuity, and the actual channel configuration before condemning the monitor.
⚠️ Firmware and Configuration Matter
A replacement monitor may power up normally but still behave differently if the configuration does not match the original application.
How to avoid it: Record alarm setpoints, channel assignments, measurement types, full-scale ranges, voting logic, and other configured parameters before replacement. After installation, compare every channel against the approved machine-protection documentation.
Frequently Asked Questions (FAQ)
What is Bently Nevada 3500/42M 126632-01?
It is a four-channel Proximitor/Seismic Monitor in the Bently Nevada 3500 machinery-protection system. It processes signals from compatible proximity and seismic transducers and provides monitoring and alarm/protection functions.
How many channels does the 3500/42M have?
The 3500/42M is a four-channel monitor. The actual measurement assigned to each channel depends on the configured application and installed transducer type.
That means a four-channel card should not be assumed to have four identical vibration inputs.
Can 126632-01 replace another 3500/42M?
Potentially, but verify the exact configuration before installation.
Check:
- Part number and hardware revision
- Firmware revision
- Channel measurement type
- Alarm setpoints
- Transducer type
- Full-scale range
- Rack configuration
- Existing software configuration
For a critical turbine or compressor, configuration compatibility matters just as much as the physical fit.
What transducers can be used with the 3500/42M?
The monitor is designed to process compatible Bently Nevada proximity and seismic transducer signals. The correct transducer depends on whether the channel is configured for shaft vibration, position, casing vibration, or another supported measurement.
Do not select a probe based solely on connector compatibility. Electrical characteristics and configured measurement type must match.
Can I hot-swap the 3500/42M 126632-01?
Do not assume that removing the monitor during operation is acceptable simply because the module is physically removable from the 3500 rack.
The correct procedure depends on the plant’s protection philosophy, redundancy arrangement, bypass/maintenance procedures, and the specific 3500 system configuration. For machinery-protection equipment, follow the approved site procedure before withdrawing a monitor.
What should I request when buying a refurbished 126632-01?
For a critical spare, request the actual-unit photograph, complete 126632-01 identification, hardware revision, firmware information where available, connector condition, and evidence of functional testing.
A useful test should include channel operation—not just a power-on check. If the supplier can provide simulated input testing for all four channels, that is much more meaningful.
What is the biggest replacement risk?
The biggest risk is configuration mismatch rather than physical incompatibility. A replacement 3500/42M can fit the rack and illuminate its LEDs while still having incorrect channel settings or firmware for the machine.
Before installation, preserve the original configuration and document the measurement chain. After replacement, verify the displayed values against a known reference and perform the required alarm/protection tests before returning the machinery to normal operation.
