Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 |
| Monitor Family | 3500/40M |
| Part Number | 140734-01 |
| Product Type | Proximitor Monitor I/O Module |
| Associated Monitor | 3500/40M Proximitor Monitor |
| Channels | 4 |
| Primary Sensor Type | Bently Nevada proximity transducers |
| Measurement Applications | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Channel Programming | Channels are programmed in pairs |
| Function Groups | Channels 1–2 can perform one selected function; channels 3–4 can perform another |
| Monitor Architecture | 3500 rack-based machinery protection |
| I/O Arrangement | Depends on associated 3500/40M configuration and I/O hardware |
| Termination Options | Internal or external termination configurations are available within the 3500/40M I/O family |
| Associated Internal-Termination I/O | 125680-01 |
| Associated External-Termination I/O | 126615-01 |
| Associated TMR External-Termination I/O | 149716-01 |
| Associated Monitor Spare | 176449-01 |
The 3500/40M is a four-channel Proximitor Monitor. Each channel accepts signals from Bently Nevada proximity transducers and conditions those signals for vibration or position monitoring. The monitor can be configured for radial vibration, thrust position, differential expansion, eccentricity, or REBAM measurements.
The channels are configured in pairs: channels 1 and 2 operate as one functional pair, while channels 3 and 4 can be assigned to the same or a different supported function.
Product Introduction

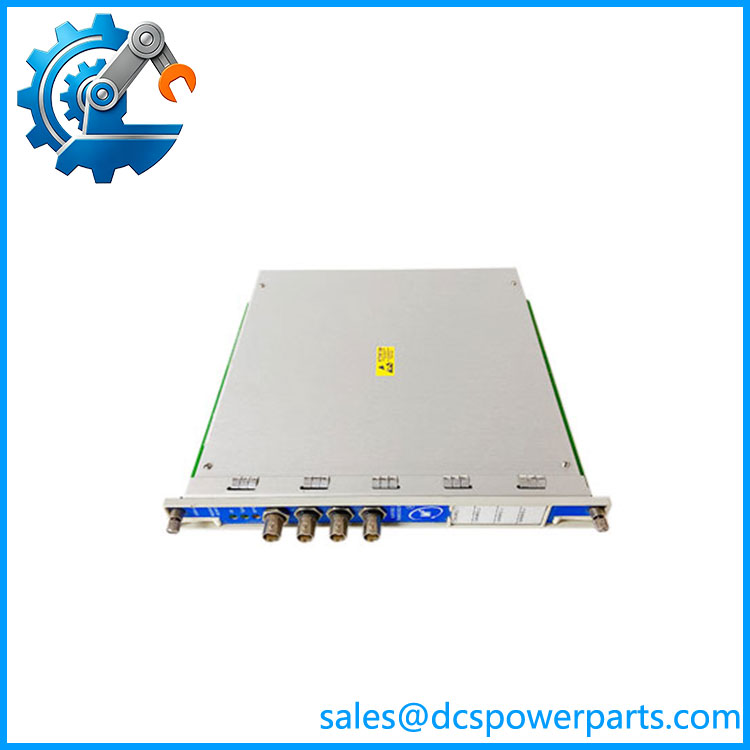

Bently Nevada 3500/40M 140734-01
The Bently Nevada 3500/40M 140734-01 is the Proximitor Monitor I/O module used with the 3500/40M machinery protection monitor. It provides the electrical interface between compatible proximity-monitoring circuits and the 3500 rack architecture. The associated 3500/40M monitor processes four channels for vibration and position measurements.
This hardware matters when maintaining a 3500 rack because the I/O assembly is not interchangeable merely because the connector and card dimensions look similar. The 140734-01 must be matched to the correct 3500/40M monitor arrangement, termination method, transducer type, and existing rack wiring.
140734-01
Application Scenarios & Field Pitfalls
Engineering Pain Point
A proximity-monitoring channel can fail without the machine itself having a mechanical problem. A damaged I/O interface, incorrect transducer wiring, poor gap voltage, or wrong termination arrangement can make the monitoring system report a sensor problem that looks like excessive vibration. On a turbine or compressor, that distinction matters. Replacing the 140734-01 without checking the entire transducer loop can simply move the fault from one component to another.
Typical Applications
- Steam Turbines — Radial shaft vibration and thrust-position monitoring using eddy-current proximity probes.
- Gas Turbines and Compressors — Shaft vibration monitoring for rotating machinery protection.
- Centrifugal Compressors — Radial vibration and axial-position monitoring on critical rotor trains.
- Industrial Pumps and Expanders — Continuous shaft-position or vibration measurement where the equipment is incorporated into a 3500 machinery protection rack.
Technical Pitfalls to Avoid
- Do not confuse 140734-01 with the complete 3500/40M monitor.
This is the first thing to verify during procurement. Bently Nevada documentation identifies 140734-01 as the Proximitor Monitor I/O module, while 176449-01 is separately listed as a 3500/40M monitor spare. - Verify the I/O termination arrangement.
The 3500/40M family supports different I/O arrangements, including internal and external termination. Relevant assemblies include 125680-01 for internal termination and 126615-01 for external termination. Do not order based solely on “3500/40M.” - Check the transducer loop before condemning the I/O module.
A bad proximity probe, extension cable, loose terminal, incorrect gap, or damaged field wiring can produce symptoms that resemble an I/O failure. Check the complete loop. - Respect channel-pair programming.
The 3500/40M does not treat all four channels as four completely independent arbitrary functions. Channels are configured in pairs. A replacement must reproduce the original channel-pair application. - Verify the measurement function.
The same monitor family can be configured for radial vibration, thrust position, differential expansion, eccentricity, or REBAM. A spare from another machine is not automatically suitable simply because it carries the same 3500/40M designation. - Do not ignore the monitor card.
If replacing 140734-01 does not clear the problem, check the associated 3500/40M monitor, transducer, extension cable, termination assembly, rack connections, and configuration. The I/O board is only one part of the measurement chain. - Check the machine protection setpoints after hardware replacement.
The 3500/40M provides programmable Alert and Danger functions. The replacement should be verified against the approved machine-protection configuration rather than assuming default settings are acceptable. - Do not bypass the protection circuit during troubleshooting without an approved procedure.
On turbines, compressors, and other high-energy rotating equipment, the vibration monitor may participate directly in shutdown logic. Maintenance bypasses require plant authorization and documented risk controls.
Related Products
- Bently Nevada 3500/40M 176449-01 — The associated 3500/40M Proximitor Monitor spare. It performs the four-channel monitoring and alarm-processing function; 140734-01 is the associated I/O hardware, so these should not be confused during procurement.
- Bently Nevada 125680-01 — Proximitor I/O module with internal termination. It is an alternative I/O arrangement within the 3500/40M family and is relevant where the field wiring terminates internally at the rack.
- Bently Nevada 126615-01 — Proximitor I/O module with external termination. Used where the transducer wiring is brought to a separate external termination arrangement.
- Bently Nevada 135489-04 — Proximitor I/O module incorporating internal barriers and internal terminations. It is relevant to installations requiring the corresponding barrier arrangement and should not be treated as a generic substitute for 140734-01.
- Bently Nevada 149716-01 — TMR Proximitor I/O module with external terminations. Intended for applications requiring the corresponding TMR I/O architecture rather than a standard four-channel arrangement.
- Bently Nevada 125808-01 — Proximitor External Termination Block with Euro-style connectors. It is associated with external-termination installations and serves as field-wiring hardware rather than the monitor itself.
- Bently Nevada 128015-01 — Proximitor External Termination Block using terminal-strip connectors. It provides a different field-termination interface for compatible 3500 installations.
- Bently Nevada 129525 — 3500 transducer-to-external-termination cable family. Cable length and assembly options must be matched to the installed termination arrangement.
- Bently Nevada 3500/40M — Four-channel Proximitor Monitor. It accepts compatible proximity-transducer signals and can be configured for radial vibration, thrust position, differential expansion, eccentricity, and REBAM.
Procurement note: 140734-01 is specifically identified as a 3500/40M Proximitor Monitor I/O module.Before replacing it, verify the complete 3500/40M configuration, I/O termination style, channel-pair assignments, transducer type, field cabling, and associated monitor part number. A correct part number with the wrong termination or configuration can still result in an unusable replacement.
