Description
Key Technical Specifications
| Parameter | Specification |
|---|---|

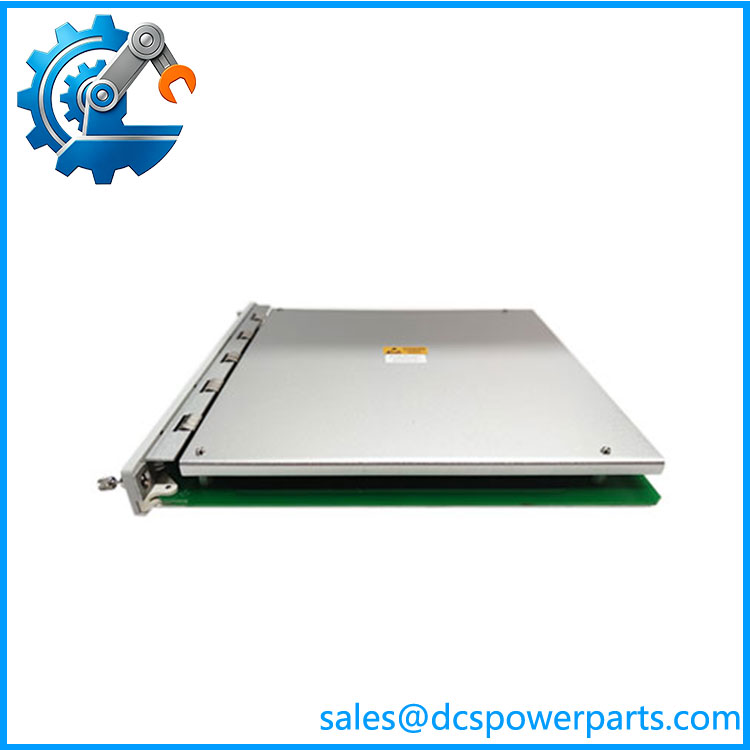

| Product Model | 3500/32 125712-01 |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Product Type | 4-Channel Relay Module |
| Number of Relay Channels | 4 |
| Relay Type | SPDT |
| Relay Logic | Programmable alarm-drive logic |
| Relay Modes | Normally energized / normally de-energized |
| Rack Type | Bently Nevada 3500 Series |
| Module Format | Full-height |
| Alarm Logic | Configurable AND / OR logic |
| Typical Functions | Alarm, shutdown, annunciation, control interface |
| Power | Supplied through 3500 rack |
| Operating Environment | Industrial machinery protection applications |
| Installation | 3500 rack slot |
| Configuration | Via 3500 system configuration software |
| Application | Turbines, compressors, pumps, generators, rotating machinery |
Application Scenarios & Pain Points
When a relay module fails in a turbine or compressor train, the problem can become a maintenance-window issue very quickly. The difficult part is not usually finding a card that physically fits; it is proving that the relay configuration and external circuit behavior remain correct after replacement.
- Steam and gas turbines: Relay outputs can interface with alarm or trip circuitry derived from vibration, speed, position, temperature, or other monitored conditions.
- Compressor trains: Useful for transferring configured machinery-protection states into plant annunciation or shutdown circuits.
- Industrial pumps: Four independent relay channels can support selected alarm and protective functions where a smaller relay count is sufficient.
- Generator and rotating-equipment protection: Works as part of a larger 3500 rack where monitor modules provide the measurement data and the relay module handles discrete output actions.
Field note: Before pulling the old card, photograph the rack position, front label, and associated wiring. Relay logic can look perfectly normal at the module level while one external normally-energized circuit has been wired differently from the plant standard.
125712-01
Related Products
- 3500/32 — The 4-channel relay module family. It provides fewer relay channels than the 3500/33 and is appropriate where four discrete relay outputs are sufficient.
- 3500/33 149986-01 — 16-channel relay-control configuration for applications requiring substantially more relay logic. It is not a direct four-channel substitute.
- 3500/33 149992-01 — Associated 16-channel relay output module. More suitable when the rack requires the higher channel count of the 3500/33 architecture.
- 3500/22M 138607-01 — Transient Data Interface module used for rack communications and data acquisition functions; complementary rather than a relay replacement.
- 3500/15 — Rack power supply module. It supplies the 3500 rack but has no relay-output function.
- 3500/25 149369-01 — Keyphasor module used for rotational reference signals. It can provide timing/reference information to the machinery protection system but does not replace relay outputs.
- 3500/40M 176449-01 — Four-channel monitor used for measurement and alarm processing; the 3500/32 can act on resulting alarm states but performs a different function.
- 3500/42M 140482-01 — Proximity/seismic monitor for vibration and position measurements. It is often functionally upstream of the relay module in a complete machinery protection system.
- 3500/50 133434-01 — Tachometer module for speed measurement. Its outputs can contribute to protective logic that is ultimately transferred through relay channels.
The Engineer’s Guide: Field Pitfalls to Avoid
Warning 1 — Do not confuse a 3500/32 with a 3500/33.
Both are relay-related modules, but their channel capacities and configurations differ. The 3500/32 provides four relay channels, while the 3500/33 architecture provides 16 channels.
How to avoid it: Match the complete part number 125712-01, not just the family number printed on the front panel.
Warning 2 — Relay logic can be configured differently from the replacement unit.
The 3500 system supports configurable alarm-drive logic, including combinations of alarm conditions. A replacement card may be electrically sound while still carrying an incorrect configuration.
How to avoid it: Record the existing configuration before removal and verify every safety-critical relay function after installation.
Warning 3 — Normally energized and normally de-energized operation are not interchangeable.
This distinction matters in machinery protection because loss of power, broken wiring, or a module fault can intentionally produce a different state depending on the plant’s failsafe philosophy.
How to avoid it: Confirm the existing relay mode and external circuit design before commissioning. Do not infer it from the physical relay contacts alone.
Frequently Asked Questions (FAQ)
What is the Bently Nevada 3500/32 125712-01 used for?
The 3500/32 125712-01 is a four-channel relay module for the 3500 Machinery Protection System. It takes configured alarm or system-status conditions from the rack and provides discrete relay outputs for functions such as annunciation, shutdown, or external control.
Is 125712-01 the same as the 3500/33 relay module?
No. The 3500/32 and 3500/33 serve similar general purposes but have different architectures and relay-channel capacities. The 3500/32 is intended for four relay channels, while the 3500/33 supports a larger 16-channel relay arrangement.
Can I replace a failed 3500/32 125712-01 without changing the rack configuration?
Usually, a correctly matched replacement can be used within the existing rack architecture, but do not assume configuration is automatically identical. Before replacement:
- Record the existing module and rack position.
- Back up the rack configuration.
- Verify relay assignments.
- Check normally energized/de-energized settings.
- Test each critical output after installation.
For a shutdown circuit, that last step is not optional.
How do I verify a refurbished 3500/32 125712-01?
A visual inspection should be followed by functional testing. Check the part number, revision information, connector condition, front-panel indicators, rack communication, and configured relay operation. Look closely at connector pins for oxidation or contamination; a clean-looking enclosure does not prove that the electronics have been tested.
Is 3500/32 125712-01 suitable for turbine protection?
Yes, as a component of a properly engineered 3500 machinery protection system. The module itself does not perform the vibration, speed, or position measurement. Monitor modules acquire those signals, while the relay module provides configured discrete outputs based on system conditions.
What should I confirm before purchasing this relay module?
For procurement, verify the following:
- Complete part number: 125712-01
- 3500 rack compatibility
- Module revision
- Existing relay configuration
- Normally energized/de-energized requirements
- External terminal/wiring arrangement
- Required software/configuration revision
- Unit condition and test evidence
- Warranty coverage
- Expected delivery date
For an operating plant, the most useful spare is not simply one that powers up. It is one whose part number, configuration, relay behavior, and installation requirements have all been verified before it reaches the maintenance bench.
