Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Family | 3500 |
| Module | 3500/25 |
| Part Number | 125792-01 |
| Product Type | Enhanced Keyphasor Module |
| Channels | 2 |
| Module Format | Half-height |
| Input Sources | Proximity probes or magnetic pickups |
| Input Signal Range — Non-isolated I/O | +0.8 V to -21.0 V |
| Input Signal Range — Isolated I/O | +5 V to -11 V |
| Frequency Range | 0.017 to 20 kHz / 1 to 1,200,000 CPM |
| Output | 2-channel buffered Keyphasor output |
| Typical Power Consumption | 3.2 W |
| Operating Temperature | -30°C to +65°C, non-barrier version |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | Approx. 119.9 × 24.4 × 256.5 mm |
| Weight | Approx. 0.34 kg |
| Rack Position | Half-height 3500 rack slot |
The technical data above is consistent with published 3500/25 documentation. The module receives the shaft-reference pulse and generates a digital Keyphasor signal used by other 3500 monitors and diagnostic equipment for speed and vector measurements such as 1X amplitude and phase.
Application Scenarios & Pain Points
A Keyphasor fault can masquerade as a vibration-monitoring problem. When phase suddenly becomes unstable or speed disappears from several monitor channels at once, replacing the vibration monitor first is often the wrong move. Check the common timing reference.
Typical Applications
- Turbine Machinery Protection: Provides shaft-reference information used alongside vibration, position, and speed measurements in turbine protection systems.
- Compressors and Rotating Equipment: Keyphasor timing allows the 3500 system to determine rotational speed and phase-related vibration parameters.
- Proximity Probe Systems: The module can receive signals from compatible proximity probes and convert their shaft-reference events into digital Keyphasor signals.
- Magnetic Pickup Applications: The 3500/25 ordering architecture includes isolated I/O options specifically designed for magnetic pickups. The correct I/O variant must be matched to the installed sensor arrangement.
Field Case:
If several 3500 monitor channels suddenly lose phase information while their vibration amplitudes still appear plausible, check the Keyphasor path before replacing those monitors. Probe gap, magnetic-pickup signal level, cable condition, and the 3500/25 channel should all be checked in sequence.

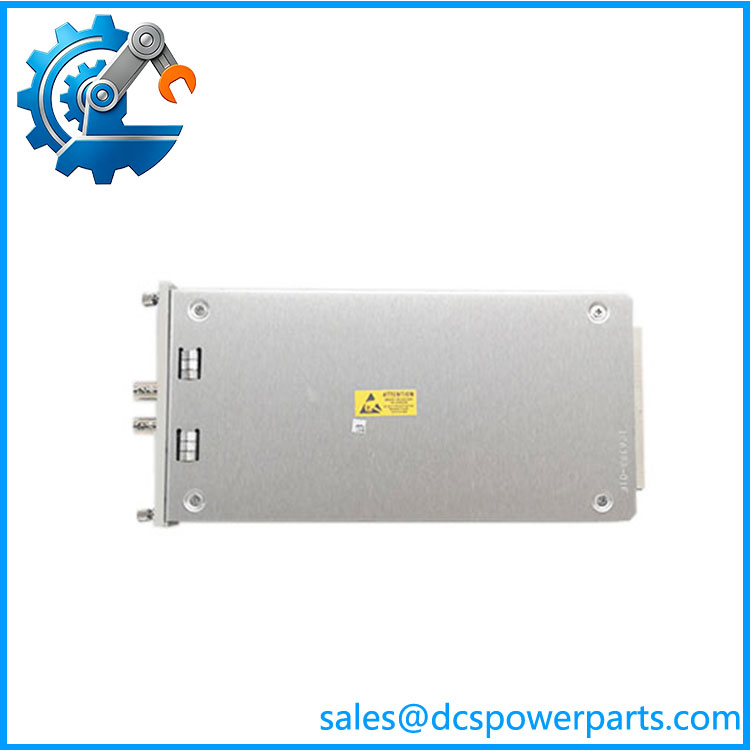

125792-01
Related Products
- Bently Nevada 149369-01 — Current Enhanced Keyphasor Module specified by Bently Nevada as a direct plug-in replacement for 125792-01. This is the most important replacement reference for an obsolete 125792-01.
- Bently Nevada 125800-01 — Keyphasor I/O Module with internal terminations. It is the associated I/O hardware rather than the front-mounted Keyphasor processing module.
- Bently Nevada 126648-01 — Keyphasor I/O Module with external terminations. Selection depends on the cabinet termination arrangement.
- Bently Nevada 125800-02 — Isolated Keyphasor I/O module with internal terminations, designed for magnetic-pickup applications. This is relevant when isolation is required at the input interface.
- Bently Nevada 126648-02 — Isolated Keyphasor I/O module with external terminations for magnetic-pickup applications. It differs primarily in the termination arrangement.
- Bently Nevada 135473-01 — Keyphasor I/O module with internal barriers and internal terminations. This option is relevant where the installed system requires the internal-barrier configuration.
- Bently Nevada 3500/42M — Four-channel Proximitor/Seismic Monitor. It processes vibration and position measurements; the 3500/25 supplies the timing reference that can be used by such monitor modules.
- Bently Nevada 3500/22M — Transient Data Interface module. It handles rack-level data/interface functions and is not a substitute for the Keyphasor module.
- Bently Nevada 3500/25-01-01-00 — A complete 3500/25 ordering configuration associated with the standard two-channel Keyphasor arrangement. The exact I/O and approval options must be checked against the rack configuration.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Confuse the 125792-01 Module With Its I/O Module
The front Keyphasor processing module and rear I/O hardware have separate part numbers. Bently Nevada lists 125800-01, 126648-01, and other I/O assemblies separately from the 125792-01/149369-01 processing module.
How to avoid it: When ordering, specify both the 3500/25 module P/N 125792-01 and the exact I/O termination configuration installed in the rack.
⚠️ Do Not Ignore the Sensor Type
A proximity-probe installation and a magnetic-pickup installation can require different I/O configurations. The 3500/25 ordering information specifically includes isolated I/O options intended for magnetic pickups.
How to avoid it: Identify the actual Keyphasor transducer before ordering the I/O assembly. Check sensor type, signal level, isolation requirement, and hazardous-area configuration.
⚠️ Do Not Diagnose a Keyphasor Fault as a Vibration-Monitor Fault
Loss of the common timing reference can affect speed and phase calculations across multiple monitor channels.
How to avoid it: Troubleshoot the chain systematically:
Keyphasor Probe → Cable → I/O Module → 3500/25 → Monitor Module
Verify the physical signal before replacing downstream monitor cards.
Frequently Asked Questions (FAQ)
What is Bently Nevada 3500/25 125792-01?
It is the original two-channel Enhanced Keyphasor Module for the Bently Nevada 3500 machinery protection system. It receives shaft-reference signals from compatible proximity probes or magnetic pickups and converts them into digital Keyphasor signals.
Is 125792-01 still the current 3500/25 module?
No. Bently Nevada’s published datasheet states that PWA 125792-01 has been replaced by 149369-01. The newer 149369-01 is identified as a direct plug-in replacement for the earlier module.
For a legacy plant, however, an original 125792-01 can still be a useful maintenance spare when the exact original hardware is required.
How many Keyphasor channels does 125792-01 provide?
The module is a two-channel, half-height design. A normal 3500 configuration can accept up to four Keyphasor signals, while paired configurations can support up to eight under the documented architecture.
For TMR applications requiring Keyphasor input, Bently Nevada recommends two Keyphasor modules operating in parallel to provide primary and secondary signals.
Can 149369-01 replace 125792-01?
Yes. This is one of the better-documented replacement relationships in the 3500 family: Bently Nevada specifically identifies 149369-01 as a direct plug-in replacement for 125792-01.
The associated I/O module and field termination arrangement still need to be checked.
Can the 3500/25 work with magnetic pickups?
Yes, but the I/O configuration matters. Bently Nevada’s ordering information includes isolated Keyphasor I/O options specifically designed for magnetic pickups.
Do not assume that every 3500/25 rack configuration provides the same input isolation.
What should I check when buying a refurbished 125792-01?
For a critical machinery-protection spare, request:
- Actual-unit photographs
- Complete 125792-01 identification
- Hardware revision
- I/O module part number
- Connector condition
- LED/status test results
- Two-channel functional test
- Input-signal simulation results where available
- Warranty terms
A simple power-on test is weak evidence. A proper test should demonstrate that the module recognizes valid Keyphasor input and produces the expected output behavior.
What is the biggest replacement risk?
The biggest risk is matching the processor module but overlooking the I/O configuration. The 3500/25 can use internal, external, isolated, and barrier-related I/O arrangements.
Before purchasing, document the existing 125792-01, the associated I/O module, sensor type, termination method, and hazardous-area requirements. That prevents a physically compatible card from becoming an electrically incompatible replacement.
