Bently Nevada 3500/22M 146031-01 | Transient Data Interface Ethernet I/O Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 146031-01 |
| Manufacturer | Bently Nevada |
| System | 3500 Machinery Monitoring System |
| Associated Module | 3500/22M Transient Data Interface |
| Product Type | TDI I/O Module |
| Ethernet Interface | 10Base-T / 100Base-TX |
| Transmission Medium | Copper Ethernet |
| Primary Function | TDI-to-host Ethernet communication |
| Installation | 3500 rack, associated with Slot 1 TDI |
| Operating Temperature | -30°C to +65°C |
| Related Fiber Version | 146031-02, 100Base-FX |
| GLD-Plated Version | 146031-03 |
Bently Nevada documentation lists 146031-01 specifically as the 10Base-T/100Base-TX I/O Module, while 146031-02 provides 100Base-FX fiber connectivity and 146031-03 is the GLD-plated copper variant. The 3500/22M itself occupies Slot 1, adjacent to the rack power supplies.
Product Introduction

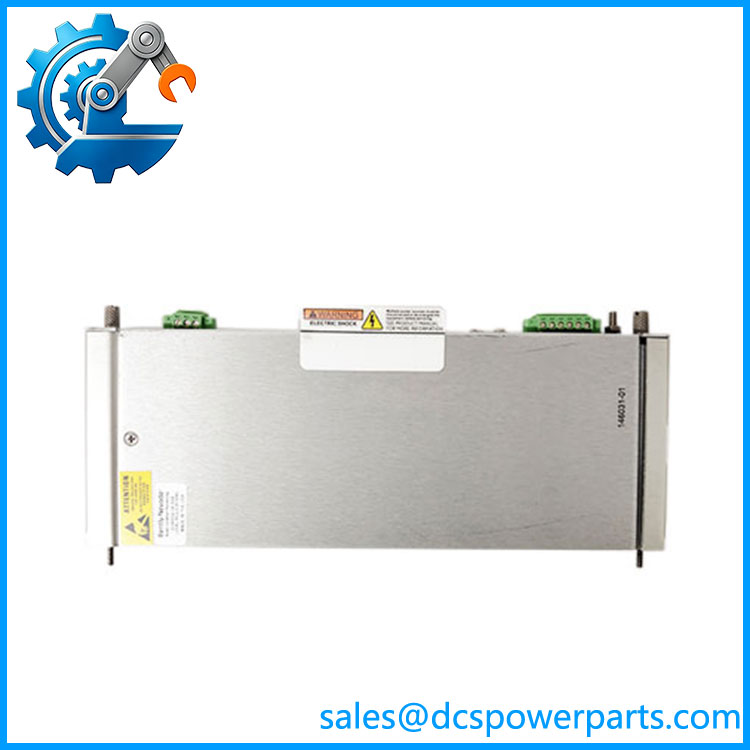

Bently Nevada 3500/22M 146031-01
The Bently Nevada 3500/22M 146031-01 is the copper Ethernet I/O module for the 3500/22M Transient Data Interface. It provides the 10Base-T/100Base-TX network connection through which the 3500 monitoring system communicates with compatible host software and machinery-monitoring infrastructure. The TDI combines rack interface and data-collection functions, collecting steady-state information and, when appropriately configured, transient waveform data from compatible M-series monitors.
The Bently Nevada 146031-01 should be understood as the I/O/network portion of the 3500/22M assembly, not as a standalone replacement for the complete TDI. The standard 3500/22M spare configuration commonly identifies 288055-01 as the main TDI with USB cable and 146031-01 as the copper Ethernet I/O module.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A 3500 rack can continue performing its core machinery protection functions while its communication path develops a fault. That can make an Ethernet I/O problem easy to underestimate: the monitors may still be collecting protection data locally, while the plant’s supervisory or diagnostic system loses access to the rack.
The 146031-01 is relevant when troubleshooting that communication path. It belongs specifically to the 3500/22M TDI architecture and should not be casually substituted with a generic Ethernet interface simply because both use copper Ethernet.
Typical Applications
- Steam and Gas Turbines: Connecting 3500 machinery monitoring racks to plant-level diagnostic systems.
- Compressors: Transmitting vibration and transient monitoring information from M-series monitor channels.
- Large Pumps and Motors: Supporting continuous condition-monitoring data collection through the 3500 platform.
- Rotating Equipment Condition Monitoring: Providing the Ethernet interface required for TDI communication with compatible host software.
The 3500/22M interfaces with M-series monitors such as the 3500/40M and 3500/42M, continuously collecting steady-state and transient waveform information for transfer through the Ethernet link. Static capture is standard; dynamic and high-resolution transient capture requires the applicable Channel Enabling Disk configuration.
Technical Pitfalls to Avoid
- Do not mistake 146031-01 for the complete 3500/22M.
The TDI and Ethernet I/O are separate hardware items. A complete standard TDI assembly may contain the main TDI module plus the 146031-01 I/O module. - Check the required network medium before ordering.
146031-01 = 10Base-T/100Base-TX copper Ethernet. If the installation uses 100Base-FX fiber, the corresponding I/O module is 146031-02. The two should not be treated as interchangeable network interfaces. - Pay attention during a 3500/20-to-3500/22M upgrade.
Bently Nevada documentation contains a specific upgrade warning: the existing RIM and its I/O must be removed before installing the TDI I/O and TDI. Leaving the RIM I/O installed during the change can damage the TDI. The documented sequence is: remove RIM, remove RIM I/O, insert TDI I/O, then insert TDI. - Verify M-series compatibility.
The 3500/22M documentation notes that some M-series monitors may not be compatible when a 3500/20 RIM is replaced by a TDI. Do not assume that every existing 3500 monitor configuration will support the upgrade without checking the applicable hardware revision and system configuration. - Do not confuse communication capability with the machinery protection path.
Bently Nevada describes the TDI as providing rack-level data and communication functions rather than being part of the critical automatic machinery-protection path. A communication fault therefore has a different operational consequence from a failed protection monitor, although it can still be significant for diagnostics and condition monitoring.
Related Products
- 288055-01: Standard 3500/22M Transient Data Interface module supplied with the USB cable; this is the main TDI component paired with the 146031-01.
- 146031-02: 100Base-FX fiber-optic I/O module; appropriate when the rack’s network architecture requires fiber rather than copper Ethernet.
- 146031-03: 10Base-T/100Base-TX I/O module with GLD plating for applicable environmental requirements.
- 3500/22M: Transient Data Interface that combines rack-interface and communication/data-collection functions.
- 3500/20 125744-02: Rack Interface Module from the earlier 3500 architecture; relevant when evaluating a RIM-to-TDI upgrade.
- 3500/40M: Four-channel Proximitor/seismic monitor that can provide monitoring data to the TDI.
- 3500/42M: Four-channel Proximitor/Seismic monitor with additional monitoring functions; commonly encountered in TDI-equipped racks.
- 123M4610: USB A-to-B cable specified for the 3500/22M TDI configuration.
- 164466: Bently Nevada network accessories documentation associated with the 3500/22M Ethernet interface.
- 3500 Rack Power Supply: The TDI occupies Slot 1 adjacent to the rack power supplies, so rack-level installation and configuration must be considered when replacing the interface assembly.
Procurement Note
For 3500/22M 146031-01, verify the complete assembly configuration rather than purchasing solely on the “3500/22M” designation. The critical distinction is 146031-01 copper 10/100 Ethernet versus 146031-02 fiber Ethernet, while the main TDI processor is a separate component. For a planned shutdown, also record the existing TDI part number, I/O module part number, M-series monitor revisions, rack configuration, and whether transient-data capture is enabled.
