Description
Key Technical Specifications
| Parameter | Specification |
|---|---|

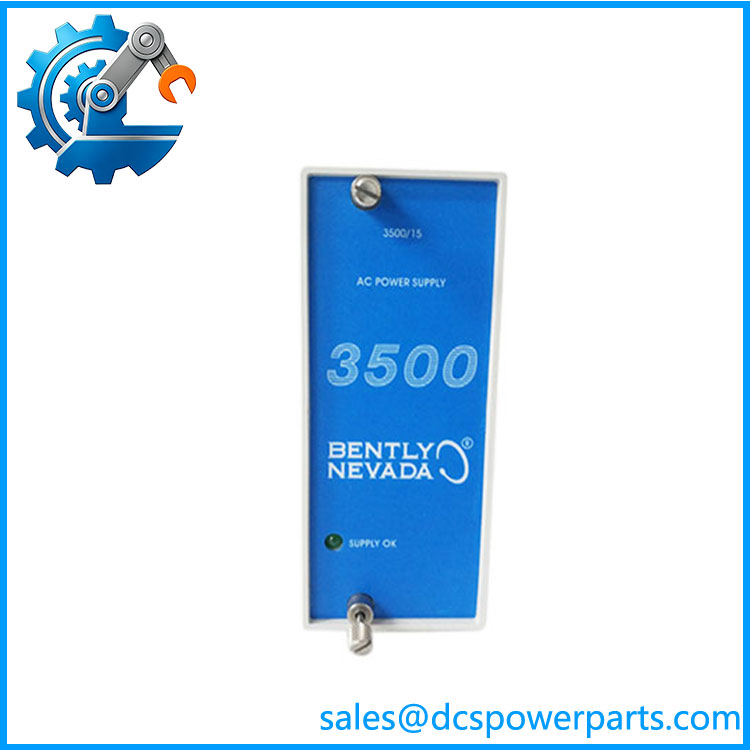

| Product Model | 3500/15 127610-01 |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Product Type | Power Supply Module |
| Rack Application | 3500 Series Machinery Protection Rack |
| Primary Function | Provides regulated power to 3500 rack modules |
| Input Type | AC power configuration |
| Part Number | 127610-01 |
| Installation | Dedicated 3500 rack power-supply position |
| Rack Interface | 3500 backplane |
| Typical System Role | Primary rack power |
| Output | Regulated DC power for rack electronics |
| Application | Machinery protection, vibration monitoring, rotating-equipment monitoring |
| Replacement Consideration | Match input configuration and complete part number |
| Condition Verification | Nameplate, electrical test, rack test, and visual inspection recommended |
Procurement note: The 3500/15 family contains multiple power-supply configurations. The 127610-01 suffix should be treated as the actual procurement identifier. Do not order solely from “3500/15.”
Application Scenarios & Pain Points
Power-supply failures tend to be particularly disruptive because the symptom can look like a system-wide electronics failure. A whole 3500 rack may disappear from communication even though every individual monitor was operating normally a few minutes earlier.
- Turbine protection racks: Supplies the rack electronics supporting vibration, position, speed, and other machinery measurements.
- Compressor monitoring: Keeps the installed monitor and interface modules powered as a common rack-level supply.
- Pump and generator systems: Useful where an established 3500 rack remains part of the plant’s machinery protection architecture.
- Maintenance spares: A correctly matched 3500/15 can be kept as a shelf spare to reduce recovery time after an unexpected rack power failure.
Field note: If the rack is intermittently rebooting, don’t immediately blame the monitor modules. Check the supply voltage, terminal condition, grounding, rack connections, and supply temperature history. A power supply that fails only after warming up can make troubleshooting particularly frustrating.
127610-01
Related Products
- 3500/15 — The 3500 rack power-supply family. Different ordering codes correspond to different input/configuration options, so the complete part number must be matched.
- 3500/22M — Transient Data Interface module responsible for rack-level data communication and acquisition functions. It depends on the rack power supply but does not replace it.
- 3500/25 — Keyphasor module used for rotational reference signals. It is powered by the rack but performs a completely different function.
- 3500/32 — Four-channel relay module for discrete alarm and control outputs. It is downstream of the rack power architecture.
- 3500/33 — 16-channel relay module for applications requiring more relay outputs than the 3500/32.
- 3500/40M — Four-channel monitor for proximity-related machinery measurements. Like other 3500 monitor cards, it relies on the rack power supply for operation.
- 3500/42M — Four-channel proximity/seismic monitor used for vibration and position monitoring. It is a measurement module, not a power-supply substitute.
- 3500/50 — Tachometer module for speed-related measurements and protection functions.
- 3500/93 — System display/interface module that provides local rack status and system information. It requires a functioning rack power system.
The Engineer’s Guide: Field Pitfalls to Avoid
Warning 1 — “3500/15” does not identify one universal power supply.
The family includes different input and configuration options. A module with the same basic designation may not have the same electrical characteristics as 127610-01.
How to avoid it: Photograph the original nameplate and compare the complete part number before ordering. Confirm the plant’s incoming supply voltage at the rack as well.
Warning 2 — Do not diagnose a failing power supply from the front LEDs alone.
An aging supply can produce intermittent undervoltage, excessive ripple, or thermal instability before it fails completely. The rack may reboot or lose individual modules without presenting an obvious permanent fault.
How to avoid it: Measure the incoming supply and appropriate rack outputs under operating conditions. If the fault appears after the equipment warms up, repeat measurements at operating temperature.
Warning 3 — Connector and backplane condition matter.
A replacement power supply cannot compensate for damaged rack contacts, loose connections, contamination, or oxidation. Well, technically, the new module may appear faulty when the real problem is upstream or at the backplane.
How to avoid it: Inspect the module connector and rack contacts before installation. Look for discoloration, oxidation, bent contacts, contamination, or signs of overheating.
Frequently Asked Questions (FAQ)
What is Bently Nevada 3500/15 127610-01 used for?
The 3500/15 127610-01 is a rack-level power supply for the Bently Nevada 3500 Machinery Protection System. Its job is to provide the required regulated power for the electronic modules installed in the 3500 rack.
Is 127610-01 interchangeable with every 3500/15?
No. This is one of the most important procurement checks. The 3500/15 is a product family rather than a single electrical configuration. Input power and other ordering-code characteristics must match the existing installation.
How can I tell whether my 3500/15 power supply is failing?
Common symptoms include:
- Rack resets or intermittent shutdowns
- Multiple modules simultaneously reporting faults
- Loss of rack communication
- Unstable module status
- Faults that appear after the equipment reaches operating temperature
- Measured supply voltage outside the expected range
Before replacing the supply, check the incoming AC, rack wiring, grounding, backplane connections, and downstream module behavior.
Can I hot-swap the 3500/15 127610-01?
Do not assume that it is safe to remove or install the power supply while the rack is energized. A machinery protection rack may be connected to critical alarm and shutdown circuits. Follow the applicable Bently Nevada installation procedure and the plant’s electrical isolation and bypass procedures.
How should I verify a refurbished 127610-01?
For a used or refurbished spare, request:
- Clear nameplate photograph.
- Exact part number and revision information.
- Visual inspection for overheating or corrosion.
- Input-power test.
- Output-voltage verification.
- Thermal/extended run testing where practical.
- Rack-level functional test when available.
- Written warranty and test documentation.
A simple power-on test is not enough for a rack power supply that may be expected to operate continuously for years.
What should I confirm before purchasing this module?
Confirm the 3500/15 127610-01 part number, incoming AC supply, rack type, existing power architecture, physical condition of the rack connector, and the supplier’s testing procedure. For an emergency spare, also confirm actual stock condition and delivery timing before releasing the purchase order.
The key point is simple: match the electrical configuration first, then evaluate condition and availability. A physically compatible 3500/15 with the wrong input configuration is not a useful spare.
