Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | UFD203A101 |
| Material Number | 3BHE019361R0101 |
| Manufacturer | ABB |
| Product Family | ABB Excitation / Industrial Control Systems |
| Product Type | Control Module |
| Main Function | Excitation system control interface and signal processing |
| Application | Generator excitation and power regulation systems |
| Hardware Designation | UFD203A101 |
| Mounting Type | Cabinet/rack installation |
| System Integration | ABB control and excitation architectures |
| Typical Use | Power generation control applications |
Application Scenarios & Pain Points
A generator control issue during startup can quickly become an outage concern. Engineers often find that the controller is healthy, but an aging interface module, unstable signal path, or degraded hardware connection is affecting excitation performance.
Typical applications:
- Power Generation Excitation Systems: Used within generator excitation cabinets where precise control signals are exchanged between regulation hardware and power electronics.
- Hydroelectric Plants: Supports long-service ABB excitation installations where maintaining existing control hardware reduces engineering changes during overhaul projects.
- Industrial Generator Sets: Applied in synchronous generator control systems requiring stable excitation-related signal processing.
- Legacy ABB Control Maintenance: Used as a replacement spare when existing excitation platforms remain operational but original hardware availability becomes limited.
Field note: A utility site experienced intermittent excitation alarms after years of continuous operation. Testing showed the main controller remained healthy, while the suspected interface module showed unstable behavior during extended operation. Replacing the module and checking cabinet connections restored normal excitation response.

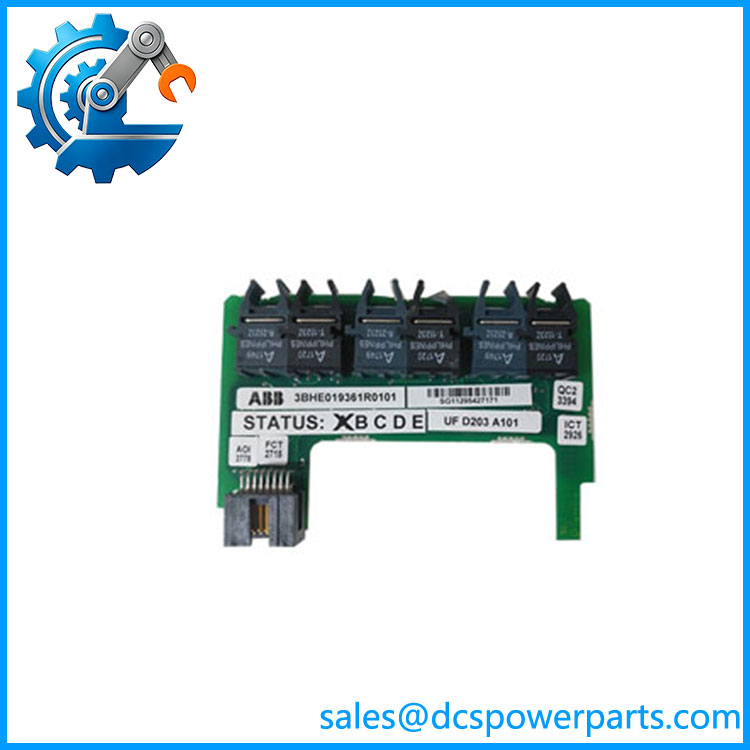

UFD203A101 3BHE019361R0101
Related Products
- ABB UFD128A101 3BHE012049R0101 — Related ABB UFD family module. Used in similar excitation/control hardware environments but with different functional assignments.
- ABB UFC921A103 3BHE024855R0103 — ABB control module from a related excitation hardware family. Used for different control and interface requirements.
- ABB PM866AK02 — AC 800M controller platform module. Suitable for process control applications rather than direct excitation module replacement.
- ABB CI854AK01 — PROFIBUS communication interface module for ABB automation systems. Used when communication expansion is required.
- ABB SM811K01 — Safety controller module used in ABB safety applications. Different function from UFD203A101 but commonly found in ABB control inventories.
- ABB PP220 — ABB operator panel/control interface hardware used for machine and process visualization applications.
- ABB 5SHX1960L0006 3BHE019719R0101 — ABB power electronics module used in related industrial power applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Treating UFD Modules as Direct Plug-In Replacements
ABB excitation hardware often contains visually similar modules with different internal functions.
How to avoid: Verify the complete ordering number, rack location, wiring diagram, and application function before replacement.
⚠️ Ignoring Excitation Parameter Backup
Replacing hardware does not automatically restore system settings.
How to avoid: Save excitation controller parameters and configuration files before removing the existing module.
⚠️ Overlooking Cabinet Environment Problems
Dust, heat cycling, and loose connectors can create failures that look like module defects.
How to avoid: Inspect terminal blocks, connector pins, cooling airflow, and signs of oxidation before commissioning.
Frequently Asked Questions (FAQ)
What is the ABB UFD203A101 3BHE019361R0101 used for?
The ABB UFD203A101 3BHE019361R0101 is an ABB industrial control module used in excitation and power control applications. It supports signal processing and interface functions within ABB control architectures.
Is the UFD203A101 a PLC CPU module?
No. It is not a standard PLC processor. It belongs to ABB specialized control hardware used mainly in excitation and power regulation environments.
Can replace another ABB UFD module?
Not automatically. Related UFD modules may share similar hardware formats but can have different electrical functions and application roles.
Before replacement, confirm:
- Full ABB part number
- Hardware revision
- Cabinet drawing
- Software configuration
- Terminal wiring
What systems commonly use ABB ?
Typical applications include:
- Generator excitation systems
- Power regulation cabinets
- Industrial electrical control systems
- Legacy ABB automation installations
What should be checked before installing a refurbished ?
Recommended checks:
- Connector condition
- Board inspection
- Communication/interface testing
- Compatibility with existing excitation hardware
- Parameter backup availability
Does replacing the module require system commissioning?
Usually yes. Even when the hardware matches, excitation systems should be checked after replacement to confirm signal scaling, regulation response, and alarm status.
Is a refurbished ABB suitable for industrial service?
A tested refurbished unit can be suitable when hardware condition, functional testing results, revision compatibility, and the existing ABB excitation configuration are verified before returning the equipment to operation.
