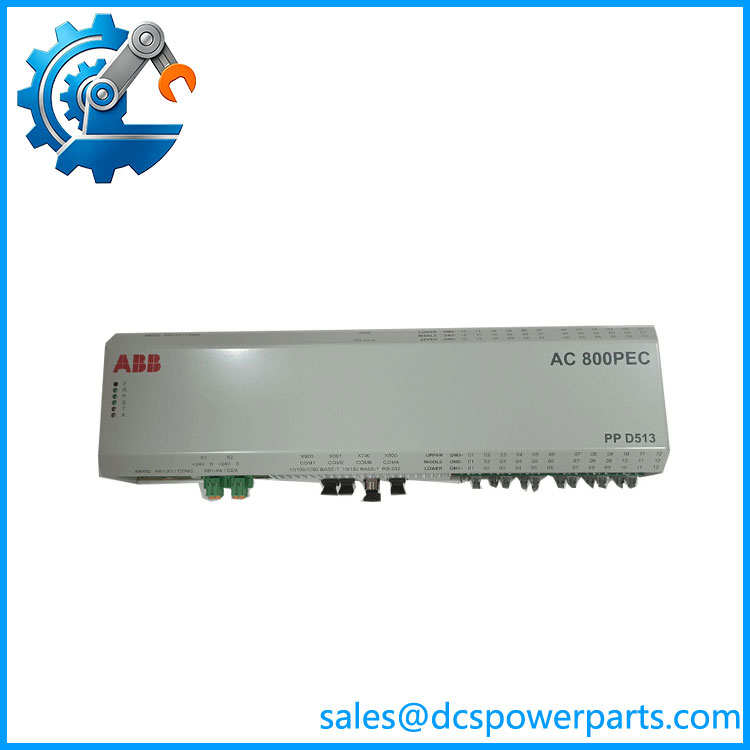

3BHE039724R0E41 PPD513 A0E-110110 AC 800PEC High-Speed Excitation Control Processor

3BHE039724R0E41 PPD513 A0E-110110 AC 800PEC High-Speed Excitation Control Processor

Model: 3BHE039724R0E41 PPD513 A0E-110110 AC 800PEC1

Brand: ABB

Core Function:High-Speed Excitation Control Processor

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: 3BHE039724R0E41 PPD513 A0E-110110

Description

PPD513 A0E-110110 | 3BHE039724R0E41

ABB AC 800PEC High-Speed Excitation Control Processor

Product Introduction

PPD513 A0E-110110 (material code 3BHE039724R0E41) belongs to ABB AC 800PEC real-time control platform, serving as a high-performance dedicated processor optimized for UNITROL static excitation systems. Differentiated from general automation controllers, it delivers microsecond-level deterministic control cycles to handle generator voltage regulation, reactive power adjustment and power system transient stability control. The unit cooperates with signal acquisition boards and power converter hardware to implement closed-loop excitation algorithms, supporting simplex, duplex and triple redundant configurations for high-reliability power station scenarios. It is a mainstream spare part for upgrading and maintaining existing excitation control cabinets worldwide.

Distinctive Performance Characteristics

▪ Hybrid CPU + FPGA architecture, minimum control cycle down to 100 μs, suitable for fast-response excitation inner loops

▪ Multiple optical fiber communication interfaces provide strong anti-interference, ideal for generator cabinet environments with heavy electromagnetic noise

▪ Natively compatible with Control Builder M and MATLAB/Simulink automatic code generation, convenient for control algorithm development

▪ Rich onboard communication resources: Ethernet, serial ports and internal CEX2 bus for data exchange with DCS and auxiliary equipment

▪ Comprehensive hardware self-diagnosis mechanism, continuously monitoring processor, memory, bus and external signal channels

▪ Supports hot-swap maintenance in redundant configurations, avoiding unit shutdown during module replacement

▪ Conformal coated printed circuit board improves durability against temperature variation, humidity and dust

▪ Seamless coordination with PPD113, PPD103 series boards inside the AC 800PEC rack, forming a complete high-speed control system

PPD513

Technical Specifications

Item Details
Full Model PPD513 A0E-110110
Part Number 3BHE039724R0E41
Manufacturer ABB
Platform AC 800PEC Real-Time Control System
Typical Application UNITROL Series Generator Static Excitation Control
Power Supply 24 VDC
Shortest Control Cycle 100 μs
Internal Bus CEX2 high-speed rack bus
External Communication Ethernet, serial interface, optical links
Redundancy Scheme Simplex / Duplex / TMR triple redundancy optional
Mounting Mode Plug-in card for AC 800PEC standard rack
Cooling Type Natural convection, fanless design
Operating Temperature -25 ℃ ~ +70 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Relative Humidity 5%–95% RH, non-condensing

Installation & Commissioning Guidance

Cut off rack power supply before disassembling or installing the module. Wear anti-static wrist strap to prevent electrostatic damage to high-speed processing chips. Insert the module into the designated slot and lock firmly to guarantee stable backplane contact.
Classify wiring reasonably: separate optical cables, communication wires, power cables and analog signal cables. Apply standardized shielding and single-point grounding to restrain electromagnetic interference. After wiring inspection, power on stepwise. Connect engineering software to download excitation control logic, set network parameters and redundant synchronization parameters.
Carry out function verification: test automatic voltage regulation, reactive power adjustment and various excitation protection logic. For redundant configurations, simulate single-module failure to verify seamless master-slave switching. Confirm data transmission to upper monitoring system works normally.
After commissioning acceptance, add regular inspection items. Periodically check ventilation clearance, surface dust accumulation and system fault logs to sustain long-term stable excitation control.

Main Application Scenarios

Thermal & Hydropower Generator Excitation Systems

Core control hardware of UNITROL static excitation equipment to realize generator grid connection, voltage stabilization and power regulation.

Combined Cycle Power Plants

Excitation control for gas turbine and steam turbine synchronous generator sets.

Industrial Self-owned Power Plants & Cogeneration Units

Safety and regulation control for large synchronous generators of metallurgy, petrochemical enterprises.

Microgrid & Distributed Energy Power Stations

Real-time excitation control for grid-connected synchronous generating equipment.

Power Plant Excitation System Retrofit & Spare Replacement Projects

Direct hardware replacement for aging AC 800PEC excitation racks, compatible with original cabinet layout and secondary wiring.
