Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | TU841 |
| Order Number | 3BSE020848R1 |
| Product Type | Module Termination Unit (MTU) |
| System Platform | ABB S800 I/O / System 800xA |
| Application | 1+1 TB840/TB840A Optical ModuleBus modem configuration |
| I/O Configuration | Non-redundant I/O |
| Communication Protocol | ModuleBus |
| Module Support | Redundant TB840/TB840A |
| ModuleBus Connection | Single electrical ModuleBus |
| Power Input | 24 VDC (19.2–30 VDC) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 VAC |
| ModuleBus Current Distribution | Maximum 5 V 1.5 A / 24 V 1.5 A |
| Mechanical Key Positions | 36 configurations |
| Mounting | DIN rail, vertical or horizontal |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Dimensions | 124 × 186 × 47 mm |
| Weight | Approx. 0.45 kg |
Product Introduction
ABB TU841 3BSE020848R1 Overview
The ABB TU841 3BSE020848R1 is a Module Termination Unit designed for ABB S800 I/O communication systems. It provides the mounting, power, and signal termination interface required for 1+1 TB840/TB840A Optical ModuleBus modem configurations, allowing S800 I/O installations to connect through ABB ModuleBus communication architecture.
The ABB TU841 3BSE020848R1 is commonly maintained in existing System 800xA installations where the original S800 I/O communication structure remains in operation. Its passive design, DIN rail mounting, and mechanical keying system simplify field replacement, but engineers should verify TB840 compatibility, ModuleBus configuration, and I/O redundancy requirements before installation.

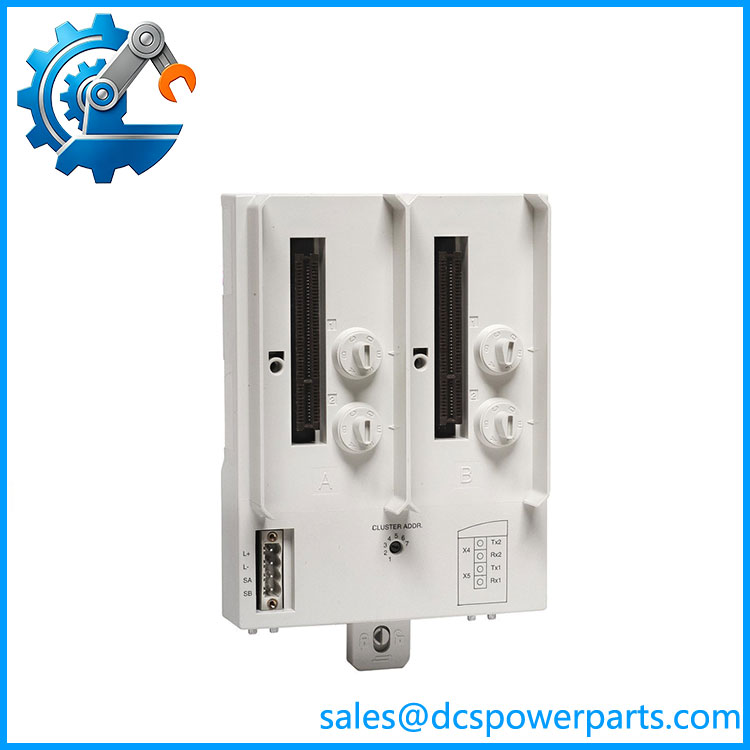

TU841 3BSE020848R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A DCS communication fault is not always caused by the controller or I/O module itself. In many S800 I/O cabinets, the issue can originate from the communication interface layer: damaged termination units, incorrect ModuleBus connections, or a mismatched redundancy arrangement. The ABB TU841 3BSE020848R1 sits in this layer, connecting TB840/TB840A communication hardware with the I/O structure.
Replacing an MTU requires attention. It is a small component, but it affects the communication path between controllers and field I/O.
Typical Applications
- Power Generation – S800 I/O communication networks for boiler controls, auxiliary systems, and plant monitoring.
- Oil & Gas Facilities – Remote I/O communication cabinets for process instrumentation and shutdown-related signals.
- Chemical Processing – Distributed control systems handling temperature, pressure, flow, and valve feedback signals.
- Water Treatment Plants – Remote field I/O panels for pumps, motors, and process equipment monitoring.
Technical Pitfalls to Avoid
- TB840/TB840A Configuration Verification
The TU841 is designed specifically around /TB840A communication hardware. Confirm the modem type and redundancy arrangement before replacement.
- Redundancy Architecture Confusion
supports redundant / hardware while being used with non-redundant I/O. Do not confuse it with TU840, which serves different I/O redundancy applications.
- ModuleBus Address Settings
The rotary switch and mechanical key configuration must match the installed system design. Incorrect settings can prevent proper communication.
Field note: Before removing a , record the cluster address, module positions, ModuleBus wiring, and cabinet drawings. Communication faults are often caused by small configuration differences rather than hardware failure.
Related Products
- ABB TU840 3BSE020846R1
Related I/O termination unit for / redundant I/O configurations. Different application from . - ABB TU848 3BSE042558R1
Advanced MTU supporting redundant / with dual ModuleBus and individual power supply arrangements. Used for higher availability I/O architectures. - ABB TU849 3BSE042560R1
I/O MTU supporting redundant / with single ModuleBus configuration. Selected according to system design. - Optical ModuleBus modem installed with . Provides optical communication between I/O modules and controller systems.
- Earlier Optical ModuleBus modem version supported by installations.
- ABB CI840A
I/O communication interface module used in redundant I/O architectures. Different function from but commonly found in the same ecosystem. - ABB CI801
I/O field communication interface module used for PROFIBUS-based installations. - ABB I/O System
The distributed I/O platform where provides the communication termination interface for /-based configurations. - ABB System 800xA
Distributed control system platform supporting I/O hardware integration for process automation applications.
