ABB REU615E_D HBUAEAADNCA1BNN1XD | Voltage Protection and Control Relay, Relion 615 Series

Description

Key Technical Specifications

The REU615 standard configurations include voltage and frequency-based protection functions, measurement, synchronization-related functions, and control features. The exact I/O arrangement and communication interfaces depend on the selected order-code options.

Product Introduction

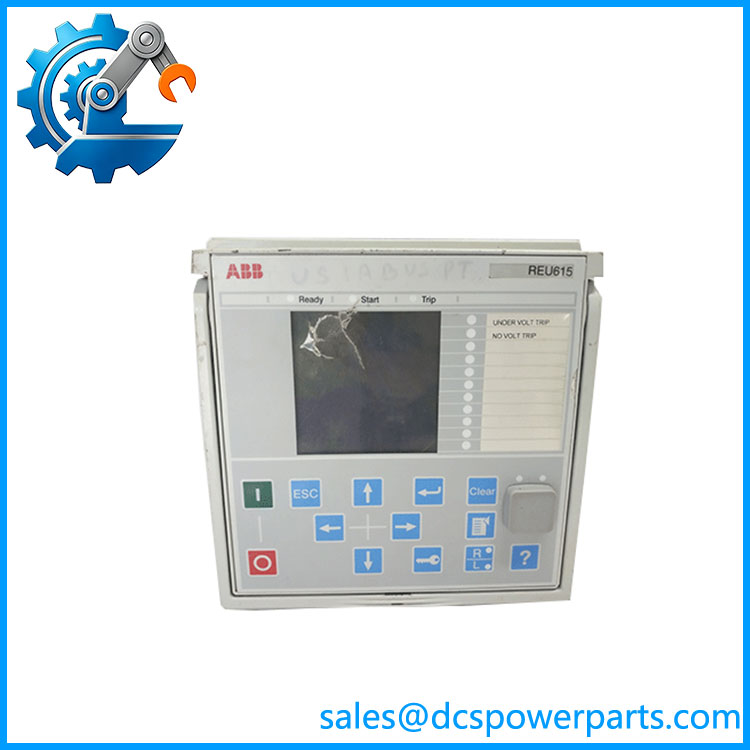

ABB REU615E_D HBUAEAADNCA1BNN1XD

The ABB REU615E_D HBUAEAADNCA1BNN1XD is a Relion 615-series voltage protection and control relay designed for medium-voltage distribution systems. It monitors voltage conditions, executes protection logic, and provides control functions required in substations and industrial electrical networks.

Its value is in combining protection, measurement, communication, and programmable logic in one compact IED. For plants maintaining ABB-based switchgear, the REU615 provides a practical replacement path when maintaining existing protection schemes and IEC 61850 communication architectures.

Application Scenarios & Field Pitfalls

Engineering Pain Point

A voltage relay failure rarely appears as a simple “relay fault.” In a substation, a defective or incorrectly configured protection IED can create nuisance alarms, incorrect voltage supervision, failed automatic transfer sequences, or loss of SCADA visibility. Engineers often spend hours checking field wiring when the actual issue is relay configuration, communication settings, or firmware compatibility.

REU615E_D

Typical Applications

• Utility Substations — Bus voltage monitoring, undervoltage/overvoltage protection, frequency supervision, and control functions.
• Industrial Power Distribution — Medium-voltage switchgear protection for manufacturing plants and process facilities.
• Renewable Energy Plants — Grid connection monitoring, voltage supervision, and distributed generation protection.
• Transformer Tap-Changer Applications — Automatic voltage regulation and control functions for transformers equipped with OLTC systems.

Technical Pitfalls to Avoid

1. Do not ignore the complete order code.
   REU615 hardware options are encoded in the order designation. Two units with the same REU615 base model may have different I/O, communication, and application capabilities.
2. Verify firmware compatibility before replacement.
   A replacement relay with a different firmware generation may require configuration conversion using ABB PCM600.
3. Do not assume communication hardware is identical.
   Ethernet and serial communication options are determined by the selected hardware code. Confirm the installed communication module before commissioning.
4. Back up the existing relay configuration.
   Before removing a working unit, save protection settings, signal matrix configuration, logic equations, and communication parameters.
5. Check CT/PT wiring carefully.
   Incorrect voltage transformer connections can produce false protection trips even when the relay hardware is healthy.
6. Verify IEC 61850 settings after replacement.
   Station name, IP configuration, GOOSE subscriptions, and MMS reporting settings must match the substation engineering database.
7. Do not confuse REU615 with feeder protection relays.
   The REU615 is designed primarily for voltage protection and control. REF615, RET615, and REM615 address different protection applications.
8. Check time synchronization settings.
   Substation event records depend on accurate time synchronization. Verify IRIG-B, SNTP, or other configured timing methods.
9. Inspect the withdrawable mechanism.
   Poor contact between the relay chassis and terminal block can create intermittent faults that resemble internal failures.
10. Perform secondary injection testing after replacement.
    Visual startup is not enough. Verify protection thresholds, trip logic, alarms, and communication points before returning the feeder or bus section to service.

Related Products

• ABB REF615E_D — Feeder protection and control relay in the same Relion 615 family. Used for feeder protection applications rather than dedicated voltage supervision.
• ABB RET615 — Transformer protection and control relay. Suitable for transformer applications where differential, overcurrent, and transformer-specific protection functions are required.
• ABB REM615 — Motor protection and control relay. Designed for medium-voltage motor protection, monitoring, and control.
• ABB REG615 — Generator and interconnection protection relay. Used where generator protection and grid connection monitoring are required.
• ABB RED615 — Line differential protection relay. Provides differential protection functions that differ significantly from voltage protection.
• ABB PCM600 Protection and Control IED Manager — Engineering software used for configuring, parameterizing, and commissioning Relion protection relays.
• ABB COM0034 2RCA023019A0004C — Communication module associated with documented REU615E_D assemblies. Provides communication functions within compatible relay configurations.
• ABB AIM0006 2RCA021397A0001H — Analog input module used in some assemblies. Provides additional measurement capability depending on relay configuration.
• ABB REF615 / Spare Terminal Assemblies — Supporting hardware used when maintaining withdrawable Relion 615 installations.
• ABB Relion 615 Series IEDs — Common hardware platform family covering feeder, motor, transformer, generator, and voltage protection applications.
