ABB PFEA113-65 3BSE050092R65 | 4 Load Cell Tension Controller

ABB PFEA113-65 3BSE050092R65 | 4 Load Cell Tension Controller

  • Model: PFEA113-65 3BSE050092R65
  • Brand: ABB
  • Series: PFEA11x Tension Electronics / Web Tension Control System
  • Core Function: Processes load cell signals from ABB Pressductor web tension sensors and provides conditioned tension measurement data for industrial control applications.
  • Product Type: Tension Electronics Module / Load Cell Signal Processor
  • Key Specs:
    • Supports up to 4 load cell inputs
    • 6 configurable analog outputs
    • PROFIBUS-DP communication interface
Add To Quote
Category: SKU: ABB PFEA113-65 3BSE050092R65

Description

Product Overview

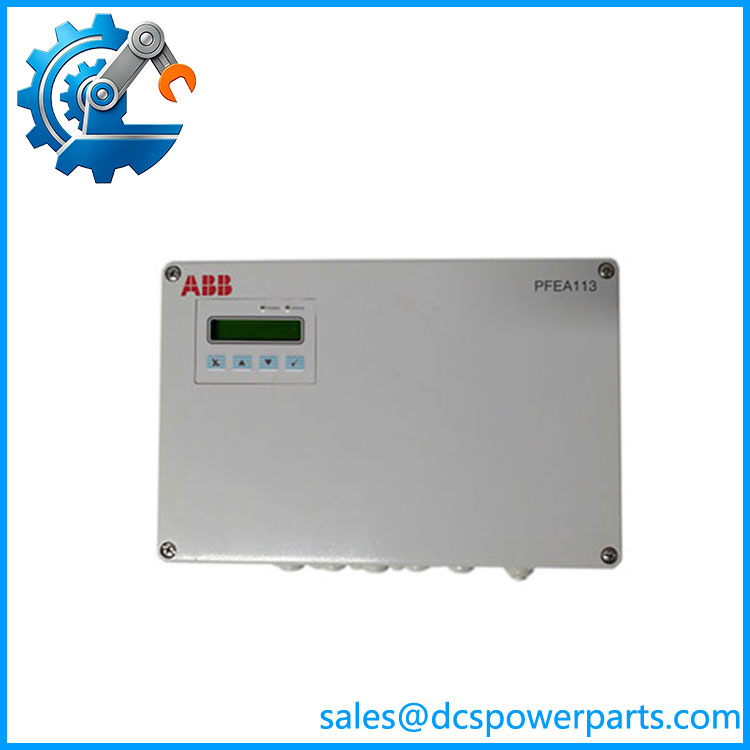

The ABB PFEA113-65 3BSE050092R65 is a specialized tension electronics unit designed for precise web tension measurement and control applications. As part of the ABB PFEA11x tension electronics family, the module interfaces with ABB Pressductor® load cells, processes force measurement signals, and delivers scaled tension values to industrial control systems. The ABB PFEA113-65 3BSE050092R65 is commonly installed in continuous processing industries where maintaining accurate material tension directly affects product quality, including paper manufacturing, metal processing, printing, converting, and packaging systems.

Built for demanding production environments, the PFEA113-65 3BSE050092R65 provides four load cell inputs, configurable analog outputs, digital I/O, integrated diagnostics, and PROFIBUS-DP communication. The IP65 enclosure version allows installation closer to field equipment where protection against dust and water exposure is required. The unit displays individual, sum, and difference tension values, helping operators and maintenance teams verify load distribution and identify mechanical issues during operation.

The ABB PFEA113-65 3BSE050092R65 acts as the measurement bridge between mechanical tension sensors and higher-level automation systems such as PLCs, DCS platforms, and dedicated machine controllers. Its signal conditioning functions reduce the need for external processing hardware while maintaining stable tension feedback for closed-loop control. Replacement projects should confirm load cell type, calibration parameters, communication settings, and installed option modules before commissioning. To be completely transparent, tension systems are sensitive to mechanical alignment and calibration data; replacing electronics alone does not correct problems caused by damaged sensors or incorrect machine setup.



Product Introduction (Non-Templated)

When web tension starts drifting, production defects often appear long before a complete machine shutdown occurs. The ABB PFEA113-65 3BSE050092R65 provides the signal processing foundation needed to maintain stable tension feedback from industrial load cells.

Supporting four load cell inputs, six configurable analog outputs, PROFIBUS-DP communication, and IP65 field installation, this unit is widely used for ABB web tension control systems and legacy production line maintenance.



Key Technical Specifications

Parameter Value
Product Model PFEA113-65 3BSE050092R65
Manufacturer ABB
Product Type Tension Electronics Module
Series PFEA11x Web Tension System
Application Web tension measurement and control
Protection Rating IP65 enclosure
Power Supply 24 VDC (18–36 VDC) / AC option depending on configuration
Power Consumption Approx. 15 W at 24 VDC
Load Cell Inputs 4 channels
Load Cell Excitation 0.5 A RMS, 330 Hz
Analog Outputs 6 configurable outputs
Analog Output Range -5 to +11 V and 0–21 mA options
Digital Inputs 1 channel
Digital Outputs 4 channels
Analog Inputs 2 channels
Communication Interface PROFIBUS-DP
Display Multi-language digital display
Display Functions Individual, sum, and difference tension values
Filtering Adjustable output response filtering
Diagnostics Self-monitoring and alarm indication
Mounting Panel / field mounting
Typical Applications Paper, metal, film, printing, converting lines
Condition New Surplus, Factory Sealed



Related Products

  • ABB -20 3BSE050092R20 — Indoor DIN-rail version of the platform. Functionally similar but intended for protected control cabinets rather than direct field mounting.
  • ABB PFEA112-65 3BSE050091R65 — Lower-capacity tension electronics model supporting fewer load cell connections. Suitable for applications requiring simpler tension measurement.
  • ABB PFEA111-65 3BSE050090R65 — Basic tension electronics unit for smaller web tension applications where fewer measurement channels are required.
  • ABB PFEA122-65 — Updated tension electronics platform supporting newer industrial Ethernet communication options such as PROFINET and EtherNet/IP.
  • ABB PXUB 201 — Insulation amplifier accessory used with selected configurations to provide isolated analog signal outputs.
  • ABB PFRL 101 Series Load Cells — Pressductor tension sensors designed to provide mechanical force feedback to PFEA electronics.
  • ABB PM861K01 3BSE018161R1 — AC 800M controller module commonly used in automation architectures where tension data is integrated into larger control strategies.
  • ABB CI858K01 3BSE018135R1 — Communication interface module used for integrating ABB control systems with field communication networks.

PFEA113-65 3BSE050092R65

Frequently Asked Questions (FAQ)

1. IBB 3BSE050092R65 compatible with my existing tension control system?

Compatibility depends on the complete web tension configuration.

Verify:

  • Pressductor load cell model
  • Number of connected load cells
  • Existing calibration parameters
  • PROFIBUS-DP configuration
  • Analog output requirements

The same PFEA model family can include different option combinations, so the complete ordering code should be checked.

2. Can I hot-swap this?

he is not normally treated as a hot-swappable device.

A typical replacement process includes:

  1. Record existing tension parameters
  2. Back up communication settings
  3. Isolate machine power
  4. Replace the electronics unit
  5. Restore configuration
  6. Perform tension calibration checks

Field calibration verification is required before returning the line to production.

3.he 3BSE050092R65 support firmware v3.1?

The module uses internal firmware, but compatibility is mainly determined by hardware revision, configuration software, and communication setup.

Check:

  • Existing firmware revision
  • PROFIBUS configuration
  • Parameter backup file
  • Connected load cell specifications

A firmware match alone does not confirm complete system compatibility.

4. Will I lose my tension settings when replhe ?

The replacement unit does not automatically inherit the original calibration and setup values.

Before replacement:

  • Save tension parameters
  • Record load cell settings
  • Document output scaling
  • Backup communication parameters

After installation, restore settings and verify measured tension values.

5. How can I verify a New SuBB 3BSE050092R65 is authentic?

Recommended checks:

  • Confirm ABB nameplate marking
  • Verify part number 3BSE050092R65
  • Inspect IP65 enclosure condition
  • Check terminal and connector quality
  • Review available inspection records

For measurement electronics, calibration history is as important as physical condition.

6he support a legacy production line upgrade?

Yes, it is commonly retained in long-service web processing equipment.

Typical applications:

  • Paper machine tension control
  • Steel strip processing
  • Film and foil production
  • Printing line maintenance
  • Converting equipment upgrades

The existing load cells and machine calibration should be reviewed before replacement.

7. What should engineers check before commissioning this tension module?

Key checks include:

  1. Verify load cell wiring
  2. Confirm excitation voltage
  3. Load correct calibration values
  4. Test PROFIBUS communication
  5. Verify analog output scaling
  6. Perform mechanical tension validation

These steps help ensure the measurement chain operates correctly after installation.
