Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DSDP150 / DSDP 150 |
| ABB Product ID | 57160001-GF |
| Product Type | Pulse Encoder Input Unit / Pulse Counter Board |
| System | ABB Advant OCS / S100 I/O |
| Number of Channels | 12 pulse inputs |
| Pulse Voltage | 5, 12, or 24 V nominal |
| Maximum Pulse Frequency | 10 kHz |
| Input Resistance | 5.6 kΩ |
| Galvanic Isolation | Optocoupler isolation between the two input groups |
| Primary Functions | Pulse counting and frequency measurement |
| Connection Unit | DSTD 150A |
| Cable | DSTK 160 |
| Logic Supply | +5 V |
| Typical +5 V Consumption | Approx. 920 mA |
ABB’s current product information identifies DSDP 150 as a pulse encoder input unit for 12 VDC and states that it supports pulse counting and frequency measurement with pulse generators up to 10 kHz. ABB’s older Advant OCS documentation gives the fuller S100 specification: 12 inputs, 5/12/24 V nominal pulse amplitude, 5.6 kΩ input resistance, and two galvanically isolated input groups.
Product Introduction
The ABB DSDP150, 57160001-GF, is an S100 I/O pulse counter board used in ABB Advant OCS control systems. It accepts pulse trains from field devices and provides the controller with pulse-counting and frequency-measurement information. The module has 12 pulse inputs and is designed for signals up to 10 kHz, making it suitable for monitoring rotating equipment, speed-related signals, flow pulses, and other discrete frequency sources.
The important engineering point is that DSDP150 is not a conventional digital input module. Its circuitry is intended for pulse measurement, and ABB documentation specifies optocoupler isolation between the two groups of inputs. The normal installation also involves the DSTD 150A connection unit and DSTK 160 cable, so replacing only the board without checking the termination hardware can create unnecessary commissioning problems.

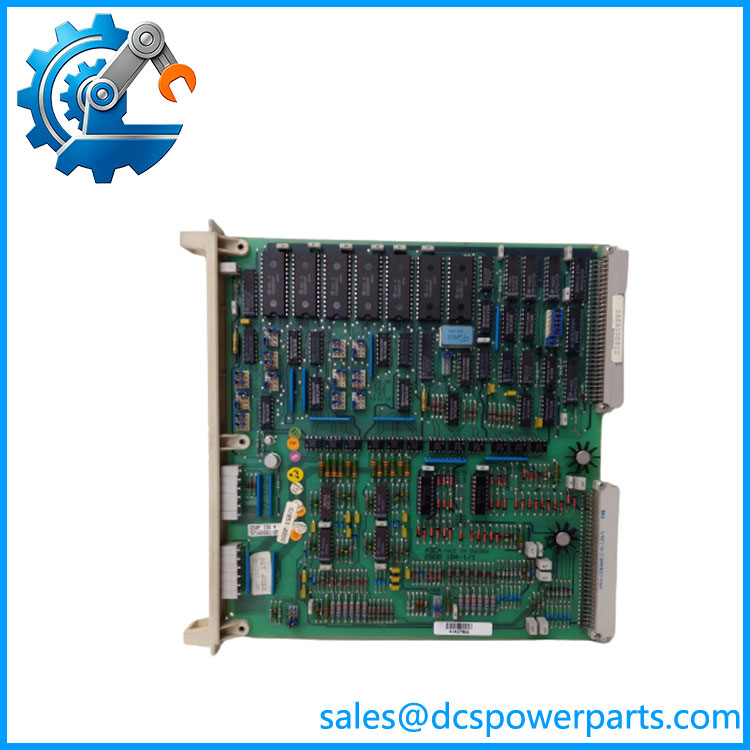

DSDP150
Application Scenarios & Field Pitfalls
Engineering Pain Point
Legacy S100 installations often have pulse signals that cannot simply be moved to an ordinary digital-input card. A standard DI module may detect an ON/OFF state but will not necessarily provide the required frequency measurement or high-speed counting behavior. DSDP150 was specifically designed for this pulse-processing requirement.
Typical Applications
- Turbine and rotating machinery monitoring — pulse generators can provide speed-related signals for controller calculations.
- Flow measurement systems — pulse-output flow instruments can be monitored through the 12-channel pulse interface.
- Motor and shaft speed measurement — frequency of a pulse train can be used to determine rotational speed.
- Legacy Advant OCS process control systems — provides dedicated pulse inputs where the existing S100 architecture must remain in service.
Technical Pitfalls to Avoid
- Do not classify DSDP150 as a standard 32-channel digital input card. ABB identifies it specifically as a pulse input unit with 12 channels.
- Check the pulse amplitude before installation. The original S100 documentation specifies nominal 5, 12, and 24 V pulse inputs and a maximum pulse frequency of 10 kHz.
- Verify the termination assembly. The DSDP150 is documented with DSTD 150A and DSTK 160; cable and connection-unit compatibility should be checked rather than assuming a generic termination will work.
Related Products
- DSTD 150A — Dedicated connection unit associated with field wiring.
- DSTK 160 — Cable used between the pulse board and its connection arrangement.
- DSDP 150K03 — -based pulse input kit with associated cable and interface hardware for specific installations.
- DSDP 150K04 — Similar pulse-input kit using a different cable length/configuration.
- DSDP 140A — Another pulse/position-related module supported in ABB engineering environments; not a direct substitute for .
- DSDP 140B — Related DSDP-family I/O hardware; exact application must be checked before substitution.
- DSDP 160 — Related DSDP-family module for applications requiring different pulse/input functionality.
- DSDP 170 — Another member of ABB’s DSDP I/O family.
- DSDI 115A — digital-input module; useful for comparison, but it does not replace the dedicated pulse-counting function of .
Procurement Check
