ABB 5SHY35L4520 | 5SXE10-0181 AC10272001R0101 4500V 4000A Asymmetric IGCT

Product Overview

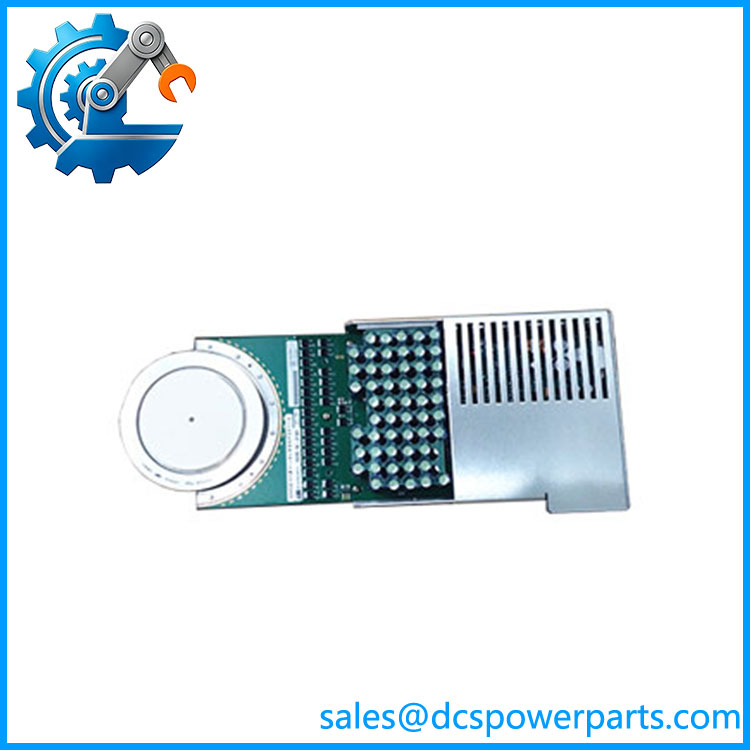

The ABB 5SHY35L4520 is a high-power Asymmetric Integrated Gate-Commutated Thyristor (IGCT) designed for controlled switching in demanding power-conversion equipment. ABB specifies the device as a 4500 V, 4000 A asymmetric IGCT, with a 40 kN mounting force and a high snubberless turn-off capability. The device is optimized for medium-frequency operation and belongs to ABB’s power-semiconductor portfolio rather than its conventional PLC or DCS I/O hardware.

For ABB 5SHY35L4520 5SXE10-0181, the three identifiers should be treated as one procurement reference: 5SHY35L4520 is the device designation, 5SXE10-0181 is the associated ABB ordering code, and AC10272001R0101 is the material number. This distinction matters when sourcing a replacement because power-semiconductor assemblies can have visually similar devices with materially different voltage, current, gate-drive, or mechanical requirements. The published ABB data specifies a 439 mm × 173 mm × 41 mm package and approximately 2.9 kg net weight.

The ABB 5SHY35L4520 AC10272001R0101 is intended for integration into a larger converter assembly, where the gate-drive system, cooling arrangement, bus structure, and semiconductor clamping hardware all contribute to correct operation. ABB specifically notes a 40 kN mounting force, high snubberless turn-off rating, and optimization for medium-frequency applications.

This is not a conventional plug-in module. For a field replacement, the semiconductor’s electrical rating alone is insufficient; the exact gate unit, mechanical stack, thermal interface, clamping force, and converter topology must be matched.

Product Introduction

When a medium-voltage converter experiences a semiconductor failure, the replacement device must match more than voltage and current. 5SHY35L4520 carries a 4500 V / 4000 A rating and requires a specified 40 kN mounting force, making mechanical installation part of the electrical reliability calculation.

For an ABB medium-voltage drive IGCT replacement, verify the gate-drive assembly and cooling stack before installation. The 5SHY35L4520 is an asymmetric IGCT optimized for medium-frequency converter applications, not a generic substitute for every 5SHY or 5SXE device.

Key Technical Specifications

The core electrical and mechanical specifications above are taken from ABB’s published product information.

Related Products

• 5SHY35L4510 — Previous ABB product identified against the 5SHY35L4520. It should not be treated as an automatic substitute without checking the converter’s approved semiconductor configuration.
• 5SXE10-0181 — ABB ordering reference associated with the 5SHY35L4520. Use this number when cross-checking purchasing and maintenance records.
• AC10272001R0101 — ABB material number associated with the same device. It is useful for ERP and spare-parts identification.
• 5SHY Series — ABB IGCT family containing devices with different electrical ratings and physical configurations. Voltage and current ratings must be matched before substitution.
• ABB IGCT Gate Unit — The gate-drive assembly controls the IGCT’s switching behavior. The correct gate unit must be confirmed before installing a replacement semiconductor.
• ABB ACS6000 — Medium-voltage drive platform commonly associated with ABB high-power semiconductor assemblies. Actual device compatibility must be confirmed against the drive’s converter configuration.
• ABB ACS1000 — Another medium-voltage drive platform where high-power semiconductor technology is relevant. Do not assume that a device approved for one converter is suitable for another solely from its electrical rating.
• PCS6000 — ABB power-converter platform associated with high-power semiconductor assemblies. Application-specific drawings should determine the correct semiconductor arrangement.

5SHY35L4520 5SXE10-0181 AC10272001R0101

Frequently Asked Questions

What is ABB 5SHY35L4520 used for?

The 5SHY35L4520 is an asymmetric IGCT used for high-power switching in converter equipment. ABB identifies it as a 4500 V / 4000 A device optimized for medium-frequency applications.

Typical equipment categories include:

• Medium-voltage drives
• High-power industrial converters
• Converter stacks
• Power-conditioning equipment
• Specialized medium-frequency conversion systems

It is a semiconductor component inside the converter, not a standalone control module.

What is the difference between 5SHY35L4520, 5SXE10-0181, and AC10272001R0101?

For procurement purposes, these identifiers refer to the same ABB product reference:

• 5SHY35L4520 — device/product designation
• 5SXE10-0181 — ABB ordering code
• AC10272001R0101 — ABB material number

Keeping all three identifiers in the purchase specification is advisable. It reduces the chance of receiving a visually similar semiconductor with a different electrical configuration.

Is 5SHY35L4520 an IGBT?

No. 5SHY35L4520 is an IGCT, specifically an asymmetric Integrated Gate-Commutated Thyristor. ABB classifies it under its IGCT semiconductor portfolio.

That distinction is important because an IGCT requires the appropriate gate-drive architecture and mechanical/thermal installation method. An IGBT with similar voltage and current numbers is not a functional substitute.

What are the voltage and current ratings?

ABB specifies the device as:

• Voltage: 4500 V
• Current/type designation: 4000 A
• Mounting force: 40 kN

The 4000 A figure should not be interpreted as a universal continuous-current rating under every thermal condition. Converter operating current, cooling, switching frequency, junction temperature, and application-specific derating all matter.

Does 5SHY35L4520 require a specific mounting force?

Yes. ABB specifies a 40 kN mounting force for this device.

This is a critical installation parameter. A press-pack semiconductor that is clamped unevenly or below the specified force can develop poor thermal contact and localized heating. Conversely, excessive or uneven force can mechanically damage the device.

Use the converter manufacturer’s approved clamping procedure and calibrated tooling rather than estimating the force.

Can I replace 5SHY35L4520 with another 5SHY device?

Not automatically.

Before approving an alternative, compare:

1. Blocking-voltage rating.
2. Current rating.
3. Turn-off characteristics.
4. Gate-drive requirements.
5. Physical dimensions.
6. Clamping force.
7. Cooling arrangement.
8. Converter topology.
9. Switching frequency.
10. Approved semiconductor part number.

A device with a higher nominal current rating is not necessarily an acceptable replacement if its gate-drive or switching characteristics differ.

Does the 5SHY35L4520 need an external snubber?

ABB describes the device as having a high snubberless turn-off rating.

That does not mean every converter design can simply have its existing protection network removed. The complete converter was engineered around a particular semiconductor, commutation circuit, stray inductance, and protection arrangement. Preserve the original converter design unless the manufacturer-approved engineering documentation specifies otherwise.

Can I hot-swap the 5SHY35L4520?

No.

This is a high-voltage, high-current power semiconductor installed inside a converter stack. Replacement requires complete electrical isolation, discharge verification, appropriate mechanical tooling, thermal-interface preparation, and inspection of the gate-drive and cooling systems.

Before replacing a failed device, determine why it failed. Simply installing another IGCT without checking gate-drive faults, cooling problems, overcurrent events, commutation issues, or mechanical clamping can result in another semiconductor failure during startup.

Will a New Surplus 5SHY35L4520 be ready to install?

Not based on packaging condition alone.

For a high-power IGCT, incoming inspection should include:

• Exact 5SHY35L4520 marking
• 5SXE10-0181 cross-reference
• material number
• Physical case inspection
• Terminal/contact inspection
• Gate interface inspection
• Insulation checks as applicable
• Mechanical dimensions
• Clamping-system compatibility
• Gate-drive compatibility

The device should also be handled using appropriate ESD and semiconductor protection procedures.

How should a 5SHY35L4520 replacement be tested?

A meaningful acceptance procedure should focus on both the semiconductor and the converter assembly.

Recommended sequence:

1. Verify the three identification numbers.
2. Inspect the press-pack surfaces for damage or contamination.
3. Confirm the device dimensions.
4. Verify the converter’s specified clamping force.
5. Inspect the gate-drive interface.
6. Check gate-drive power and command signals.
7. Inspect cooling surfaces and thermal interface.
8. Verify isolation according to the approved maintenance procedure.
9. Install using calibrated clamping equipment.
10. Confirm correct electrical orientation.
11. Perform the converter manufacturer’s prescribed static checks.
12. Test the gate-drive and protection circuits.
13. Perform a controlled low-energy startup.
14. Monitor semiconductor temperature and converter current.
15. Gradually return the converter to normal operating conditions.

Procurement note: ABB’s published specification identifies the 5SHY35L4520 as a 4500 V / 4000 A asymmetric IGCT with a 40 kN mounting force. For a maintenance replacement, those numbers are only the starting point; the gate unit, converter topology, cooling arrangement, and mechanical stack must also match.
